Volkswagen Passat CC Specs, Engines & Dimensions (2012–2016) — First Generation Restyling

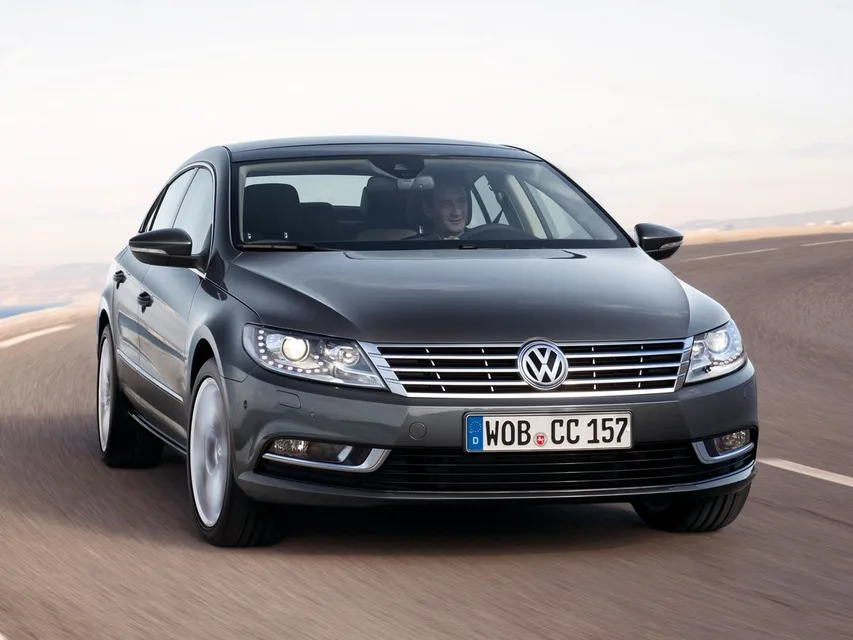

The restyled first-generation Volkswagen Passat CC keeps its low, coupe-like fastback silhouette and frameless doors, pairing four-door practicality with a sleeker roofline than the standard sedan of the same era.

← All Volkswagen models

Volkswagen Passat CC Engines and Transmissions

Volkswagen Passat CC engine choices run from economical turbocharged fours to a broad-shouldered six. The 1.8 gasoline with a manual gearbox and front-wheel drive suits everyday commuting, while a 2.0 diesel pairs the robotic DSG transmission with all-wheel drive for relaxed highway pace. The 3.6 gasoline DSG adds effortless overtaking through a similar all-wheel-drive layout.

Fastback — Volkswagen Passat CC Engines and Transmissions

Fastback Volkswagen Passat CC Engines and Transmissions
Modification	Engine type	Engine capacity	Maximum power	Maximum power, kw	Maximum torque N⋅m	Transmission	Type of drive
1.8 MT	Gasoline	1798 cm³	152 hp	112 kW	250 N⋅m	Manual	FWD
1.8 DSG	Gasoline	1798 cm³	152 hp	112 kW	250 N⋅m	Robotic	FWD
3.6 DSG	Gasoline	3597 cm³	300 hp	220 kW	350 N⋅m	Robotic	AWD
1.4 MT	Gasoline	1390 cm³	160 hp	118 kW	240 N⋅m	Manual	FWD
1.4 DSG	Gasoline	1390 cm³	160 hp	118 kW	240 N⋅m	Robotic	FWD
1.4 MT	Gasoline	1395 cm³	150 hp	110 kW	250 N⋅m	Manual	FWD
1.4 DSG	Gasoline	1395 cm³	150 hp	110 kW	250 N⋅m	Robotic	FWD
2.0 MT	Gasoline	1984 cm³	210 hp	154 kW	280 N⋅m	Manual	FWD
2.0 MT	Diesel	1968 cm³	140 hp	103 kW	320 N⋅m	Manual	FWD
2.0 MT	Diesel	1968 cm³	140 hp	103 kW	320 N⋅m	Manual	AWD
2.0 MT	Diesel	1968 cm³	150 hp	110 kW	340 N⋅m	Manual	FWD
2.0 DSG	Diesel	1968 cm³	150 hp	110 kW	340 N⋅m	Robotic	FWD
2.0 DSG	Diesel	1968 cm³	170 hp	125 kW	350 N⋅m	Robotic	FWD
2.0 DSG	Diesel	1968 cm³	177 hp	130 kW	380 N⋅m	Robotic	FWD
2.0 DSG	Diesel	1968 cm³	177 hp	130 kW	380 N⋅m	Robotic	AWD
2.0 MT	Diesel	1968 cm³	177 hp	130 kW	380 N⋅m	Manual	FWD
2.0 MT	Diesel	1968 cm³	184 hp	135 kW	380 N⋅m	Manual	FWD
2.0 DSG	Diesel	1968 cm³	184 hp	135 kW	380 N⋅m	Robotic	FWD
2.0 DSG	Gasoline	1984 cm³	210 hp	155 kW	290 N⋅m	Robotic	FWD
2.0 DSG	Diesel	1968 cm³	140 hp	103 kW	320 N⋅m	Robotic	FWD
1.8 DSG	Gasoline	1798 cm³	160 hp	117 kW	255 N⋅m	Robotic	FWD

Volkswagen Passat CC Dimensions

Fastback — Volkswagen Passat CC Dimensions

Fastback Volkswagen Passat CC Dimensions
Modification	Length	Width	Height	Wheelbase	Curb weight	Max weight	Ground clearance, minimum
1.8 MT	4802 mm	1885 mm	1417 mm	2711 mm	1505 kg	1950 kg	154 mm
1.8 DSG	4802 mm	1885 mm	1417 mm	2711 mm	1513 kg	1960 kg	154 mm
3.6 DSG	4802 mm	1885 mm	1417 mm	2711 mm	1705 kg	2130 kg	154 mm
1.4 MT	4802 mm	1885 mm	1417 mm	2711 mm	1505 kg	1950 kg	154 mm
1.4 DSG	4802 mm	1885 mm	1417 mm	2711 mm	1531 kg	1970 kg	154 mm
1.4 MT	4802 mm	1885 mm	1417 mm	2711 mm	1489 kg	1910 kg	124 mm
1.4 DSG	4802 mm	1885 mm	1417 mm	2711 mm	1497 kg	1930 kg	124 mm
2.0 MT	4802 mm	1885 mm	1417 mm	2711 mm	1515 kg	1980 kg	154 mm
2.0 MT	4802 mm	1885 mm	1417 mm	2711 mm	1550 kg	1970 kg	154 mm
2.0 MT	4802 mm	1885 mm	1417 mm	2711 mm	1640 kg	2060 kg	154 mm
2.0 MT	4802 mm	1885 mm	1417 mm	2711 mm	1573 kg	2000 kg	124 mm
2.0 DSG	4802 mm	1885 mm	1417 mm	2711 mm	1596 kg	2020 kg	124 mm
2.0 DSG	4802 mm	1885 mm	1417 mm	2711 mm	1581 kg	1970 kg	154 mm
2.0 DSG	4802 mm	1885 mm	1417 mm	2711 mm	1582 kg	2010 kg	154 mm
2.0 DSG	4802 mm	1885 mm	1417 mm	2711 mm	1683 kg	2110 kg	154 mm
2.0 MT	4802 mm	1885 mm	1417 mm	2711 mm	1565 kg	1990 kg	154 mm
2.0 MT	4802 mm	1885 mm	1417 mm	2711 mm	1590 kg	2010 kg	124 mm
2.0 DSG	4802 mm	1885 mm	1417 mm	2711 mm	1607 kg	2030 kg	124 mm
2.0 DSG	4802 mm	1885 mm	1417 mm	2711 mm	1535 kg	1990 kg	154 mm
2.0 DSG	4802 mm	1885 mm	1417 mm	2711 mm	1564 kg	1990 kg	154 mm
1.8 DSG	4802 mm	1885 mm	1417 mm	2711 mm	1513 kg	1960 kg	154 mm

Volkswagen Passat CC Cargo Space

Fastback — Volkswagen Passat CC Cargo Space

Fastback Volkswagen Passat CC Cargo Space
Modification	Trunk volume min
1.8 MT	532 l
1.8 DSG	532 l
3.6 DSG	532 l
1.4 MT	532 l
1.4 DSG	532 l
1.4 MT	532 l
1.4 DSG	532 l
2.0 MT	532 l
2.0 MT	532 l
2.0 MT	532 l
2.0 MT	532 l
2.0 DSG	532 l
2.0 DSG	532 l
2.0 DSG	532 l
2.0 DSG	532 l
2.0 MT	532 l
2.0 MT	532 l
2.0 DSG	532 l
2.0 DSG	532 l
2.0 DSG	532 l
1.8 DSG	532 l

Volkswagen Passat CC Trims and Equipment

Volkswagen Passat CC trim levels sit on top of a chosen technical version, so the 2.0 gasoline DSG with front-wheel drive is offered as either Standart or Luxury. The mechanics stay the same; what changes is comfort, upholstery, climate and infotainment content, so check the equipment of each individual car.

Volkswagen Passat CC Trims and Equipment
Modification	Body	Equipment
1.8 MT	Fastback	Sport
1.8 DSG	Fastback	Sport
2.0 DSG	Fastback	Standart
2.0 DSG	Fastback	Luxury
2.0 DSG	Fastback	Sport
1.8 DSG	Fastback	Standart
1.8 DSG	Fastback	Luxury
1.8 DSG	Fastback	Sport
