Toyota RAV4 Specs, Engines & Dimensions (1994–2000) — First Generation

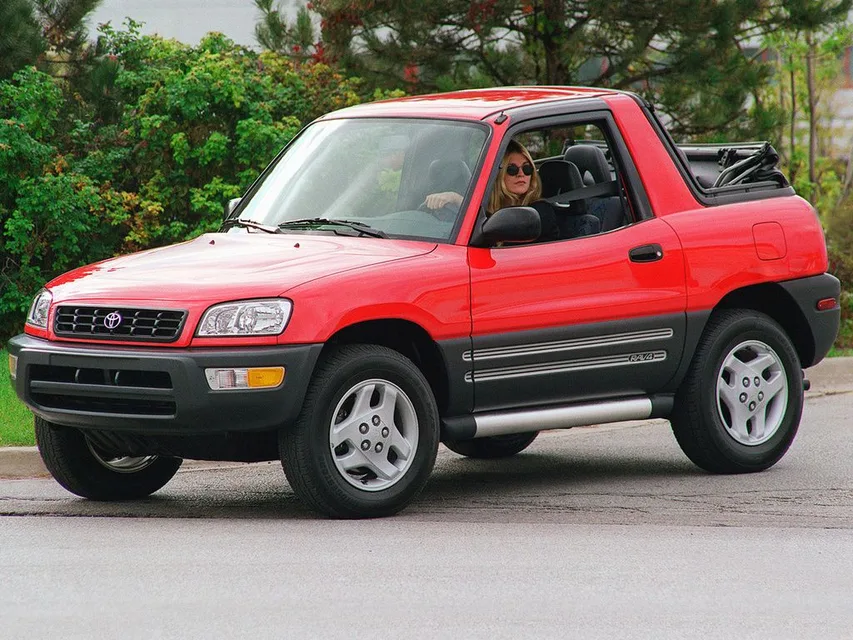

The Toyota RAV4 First Generation introduced a compact SUV with a fresh, car-like feel. It combined everyday usability with light off-road ability, and its unusual three-door cabriolet body added open-air appeal to the practical lineup.

← All Toyota models

Toyota RAV4 Engines and Transmissions

The Toyota RAV4 engine in this generation is a 2.0-liter gasoline unit, paired with either a manual or automatic transmission. Both options send power to all four wheels, giving dependable traction in wet or loose conditions. The cabriolet example shows the same powertrain, so open-top driving doesn’t mean giving up all-wheel drive security.

SUV cabriolet — Toyota RAV4 Engines and Transmissions

SUV cabriolet Toyota RAV4 Engines and Transmissions
Modification	Engine type	Engine capacity	Maximum power	Maximum power, kw	Maximum torque N⋅m	Transmission	Type of drive
2.0 MT	Gasoline	1998 cm³	129 hp	94 kW	178 N⋅m	Manual	AWD
2.0 AT	Gasoline	1998 cm³	129 hp	95 kW	178 N⋅m	Automatic	AWD

SUV 3-doors — Toyota RAV4 Engines and Transmissions

SUV 3-doors Toyota RAV4 Engines and Transmissions
Modification	Engine type	Engine capacity	Maximum power	Maximum power, kw	Maximum torque N⋅m	Transmission	Type of drive
2.0 MT	Gasoline	1998 cm³	135 hp	99 kW	178 N⋅m	Manual	AWD
2.0 MT	Gasoline	1998 cm³	135 hp	99 kW	178 N⋅m	Manual	FWD
2.0 AT	Gasoline	1998 cm³	180 hp	132 kW	201 N⋅m	Automatic	AWD
2.0 MT	Gasoline	1998 cm³	129 hp	94 kW	178 N⋅m	Manual	AWD
2.0 AT	Gasoline	1998 cm³	129 hp	94 kW	178 N⋅m	Automatic	AWD
2.0 MT	Gasoline	1998 cm³	129 hp	95 kW	175 N⋅m	Manual	FWD
2.0 AT	Gasoline	1998 cm³	135 hp	99 kW	178 N⋅m	Automatic	AWD
2.0 MT	Gasoline	1998 cm³	180 hp	132 kW	201 N⋅m	Manual	AWD
2.0 AT	Gasoline	1998 cm³	150 hp	110 kW	178 N⋅m	Automatic	AWD
2.0 AT	Gasoline	1998 cm³	129 hp	95 kW	175 N⋅m	Automatic	FWD
2.0 AT	Gasoline	1998 cm³	135 hp	99 kW	178 N⋅m	Automatic	FWD

SUV 5-doors — Toyota RAV4 Engines and Transmissions

SUV 5-doors Toyota RAV4 Engines and Transmissions
Modification	Engine type	Engine capacity	Maximum power	Maximum power, kw	Maximum torque N⋅m	Transmission	Type of drive
2.0 MT	Gasoline	1998 cm³	129 hp	95 kW	175 N⋅m	Manual	FWD
2.0 AT	Gasoline	1998 cm³	135 hp	99 kW	178 N⋅m	Automatic	AWD
2.0 MT	Gasoline	1998 cm³	135 hp	99 kW	178 N⋅m	Manual	AWD
2.0 AT	Gasoline	1998 cm³	135 hp	99 kW	178 N⋅m	Automatic	FWD
2.0 MT	Gasoline	1998 cm³	135 hp	99 kW	178 N⋅m	Manual	FWD
2.0 AT	Gasoline	1998 cm³	180 hp	132 kW	201 N⋅m	Automatic	AWD
2.0 MT	Gasoline	1998 cm³	180 hp	132 kW	201 N⋅m	Manual	AWD
2.0 AT	Gasoline	1998 cm³	150 hp	110 kW	178 N⋅m	Automatic	AWD
2.0 AT	Gasoline	1998 cm³	129 hp	94 kW	178 N⋅m	Automatic	AWD
2.0 MT	Gasoline	1998 cm³	129 hp	94 kW	178 N⋅m	Manual	AWD
2.0 AT	Gasoline	1998 cm³	129 hp	95 kW	175 N⋅m	Automatic	FWD

Toyota RAV4 Dimensions

SUV cabriolet — Toyota RAV4 Dimensions

SUV cabriolet Toyota RAV4 Dimensions
Modification	Length	Width	Height	Wheelbase	Curb weight	Max weight	Ground clearance, minimum
2.0 MT	3705 mm	1695 mm	1660 mm	2200 mm	1150 kg	1565 kg	200 mm
2.0 AT	3705 mm	1695 mm	1660 mm	2200 mm	1150 kg	1565 kg	200 mm

SUV 3-doors — Toyota RAV4 Dimensions

SUV 3-doors Toyota RAV4 Dimensions
Modification	Length	Width	Height	Wheelbase	Curb weight	Max weight	Ground clearance, minimum
2.0 MT	3705 mm	1695 mm	1650 mm	2200 mm	1150 kg	1565 kg	200 mm
2.0 MT	3705 mm	1695 mm	1650 mm	2200 mm	1150 kg	1565 kg	200 mm
2.0 AT	3705 mm	1695 mm	1650 mm	2200 mm	1280 kg	Not provided	205 mm
2.0 MT	3705 mm	1695 mm	1650 mm	2200 mm	1150 kg	1565 kg	200 mm
2.0 AT	3705 mm	1695 mm	1650 mm	2200 mm	1150 kg	1565 kg	200 mm
2.0 MT	3705 mm	1695 mm	1650 mm	2200 mm	1150 kg	1565 kg	200 mm
2.0 AT	3705 mm	1695 mm	1650 mm	2200 mm	1150 kg	1565 kg	200 mm
2.0 MT	3705 mm	1695 mm	1650 mm	2200 mm	1250 kg	Not provided	205 mm
2.0 AT	3705 mm	1695 mm	1650 mm	2200 mm	1150 kg	1565 kg	200 mm
2.0 AT	3705 mm	1695 mm	1650 mm	2200 mm	1150 kg	1565 kg	200 mm
2.0 AT	3705 mm	1695 mm	1650 mm	2200 mm	1150 kg	1565 kg	200 mm

SUV 5-doors — Toyota RAV4 Dimensions

SUV 5-doors Toyota RAV4 Dimensions
Modification	Length	Width	Height	Wheelbase	Curb weight	Max weight	Ground clearance, minimum
2.0 MT	4115 mm	1695 mm	1660 mm	2410 mm	Not provided	1710 kg	200 mm
2.0 AT	4115 mm	1695 mm	1660 mm	2410 mm	1150 kg	1565 kg	200 mm
2.0 MT	4115 mm	1695 mm	1660 mm	2410 mm	1150 kg	1565 kg	200 mm
2.0 AT	4115 mm	1695 mm	1660 mm	2410 mm	1150 kg	1565 kg	200 mm
2.0 MT	4115 mm	1695 mm	1660 mm	2410 mm	1150 kg	1565 kg	200 mm
2.0 AT	4115 mm	1695 mm	1660 mm	2410 mm	1280 kg	Not provided	205 mm
2.0 MT	4115 mm	1695 mm	1660 mm	2410 mm	1250 kg	Not provided	205 mm
2.0 AT	4115 mm	1695 mm	1660 mm	2410 mm	1150 kg	1565 kg	200 mm
2.0 AT	4115 mm	1695 mm	1660 mm	2410 mm	1150 kg	1565 kg	200 mm
2.0 MT	4115 mm	1695 mm	1660 mm	2410 mm	1150 kg	1565 kg	200 mm
2.0 AT	4115 mm	1695 mm	1660 mm	2410 mm	Not provided	1710 kg	200 mm

Toyota RAV4 Cargo Space

SUV 3-doors — Toyota RAV4 Cargo Space

SUV 3-doors Toyota RAV4 Cargo Space
Modification	Trunk volume min	Trunk volume max
2.0 MT	175 l	520 l
2.0 MT	175 l	520 l
2.0 AT	175 l	520 l
2.0 MT	175 l	520 l
2.0 AT	175 l	520 l
2.0 MT	175 l	520 l
2.0 AT	175 l	520 l
2.0 MT	175 l	520 l
2.0 AT	175 l	520 l
2.0 AT	175 l	520 l
2.0 AT	175 l	520 l

SUV 5-doors — Toyota RAV4 Cargo Space

SUV 5-doors Toyota RAV4 Cargo Space
Modification	Trunk volume min	Trunk volume max
2.0 MT	409 l	1790 l
2.0 AT	409 l	1790 l
2.0 MT	409 l	1790 l
2.0 AT	409 l	1790 l
2.0 MT	409 l	1790 l
2.0 AT	409 l	1790 l
2.0 MT	409 l	1790 l
2.0 AT	409 l	1790 l
2.0 AT	409 l	1790 l
2.0 MT	409 l	1790 l
2.0 AT	409 l	1790 l

Toyota RAV4 Trims and Equipment

Toyota RAV4 Trims and Equipment
Modification	Body	Equipment
2.0 MT	SUV 3-doors	Base
2.0 AT	SUV 5-doors	Base
