Toyota Ractis Specs, Engines & Dimensions (2005–2010)

Toyota Ractis Engines and Transmissions

Every Toyota Ractis engine here is a modest gasoline four aimed at economy rather than speed. The 1.3 pairs a CVT with front-wheel drive for the lightest, thriftiest setup, while 1.5 examples appear with either a conventional automatic or a CVT and add all-wheel drive for slippery roads.

Mini 5-doors — Toyota Ractis Engines and Transmissions

Mini 5-doors Toyota Ractis Engines and Transmissions
Modification	Engine type	Engine capacity	Maximum power	Maximum power, kw	Maximum torque N⋅m	Transmission	Type of drive
1.3 CVT	Gasoline	1296 cm³	87 hp	64 kW	121 N⋅m	Variable	FWD
1.5 AT	Gasoline	1496 cm³	105 hp	77 kW	138 N⋅m	Automatic	AWD
1.5 CVT	Gasoline	1496 cm³	110 hp	81 kW	141 N⋅m	Variable	AWD
1.5 CVT	Gasoline	1496 cm³	110 hp	81 kW	141 N⋅m	Variable	FWD

Toyota Ractis Dimensions

Mini 5-doors — Toyota Ractis Dimensions

Mini 5-doors Toyota Ractis Dimensions
Modification	Length	Width	Height	Wheelbase	Curb weight	Max weight	Ground clearance, minimum
1.3 CVT	3955 mm	1695 mm	1640 mm	2550 mm	1120 kg	1395 kg	155 mm
1.5 AT	3955 mm	1695 mm	1640 mm	2550 mm	1140 kg	1415 kg	155 mm
1.5 CVT	3955 mm	1695 mm	1640 mm	2550 mm	1140 kg	1415 kg	155 mm
1.5 CVT	3955 mm	1695 mm	1640 mm	2550 mm	1140 kg	1415 kg	155 mm

Toyota Ractis Cargo Space

Mini 5-doors — Toyota Ractis Cargo Space

Mini 5-doors Toyota Ractis Cargo Space
Modification	Trunk volume min
1.3 CVT	280 l
1.5 AT	280 l
1.5 CVT	280 l
1.5 CVT	280 l

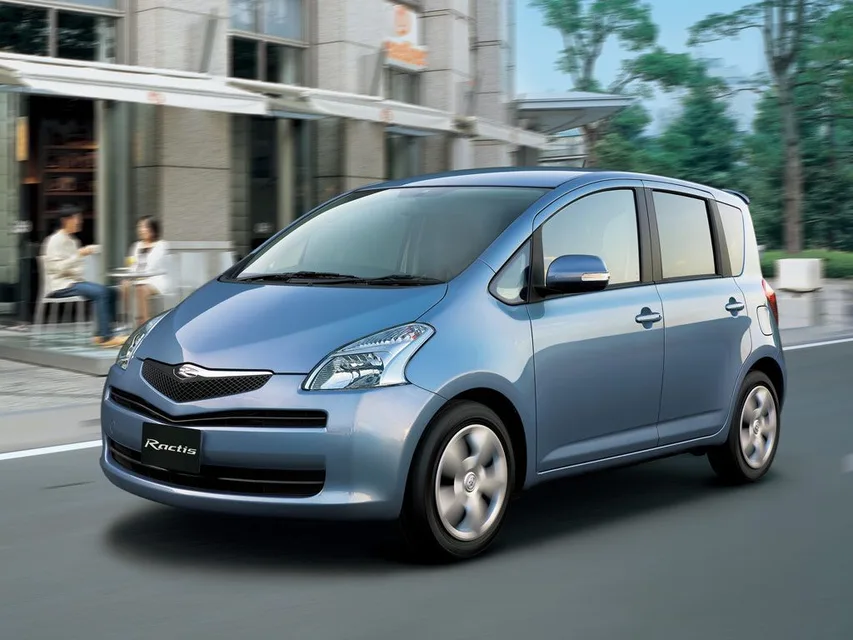

Toyota Ractis Specs, Engines & Dimensions (2005–2010) — First Generation

Toyota Ractis

Toyota Ractis

Toyota Ractis

Toyota Ractis

Toyota Ractis Engines and Transmissions

Mini 5-doors — Toyota Ractis Engines and Transmissions

Toyota Ractis Dimensions

Mini 5-doors — Toyota Ractis Dimensions

Toyota Ractis Cargo Space

Mini 5-doors — Toyota Ractis Cargo Space
