Toyota Harrier Specs, Engines & Dimensions (2003–2013)

Toyota Harrier Engines and Transmissions

A typical Toyota Harrier engine here is the 2.4-litre petrol four with an automatic gearbox, offered with front-wheel drive or all-wheel drive for extra traction. The alternative powertrain is a 3.3-litre hybrid with a variable transmission and all-wheel drive, which uses electric assistance to ease fuel use in town.

SUV 5-doors — Toyota Harrier Engines and Transmissions

SUV 5-doors Toyota Harrier Engines and Transmissions
Modification	Engine type	Engine capacity	Maximum power	Maximum power, kw	Maximum torque N⋅m	Transmission	Type of drive
2.4 AT	Gasoline	2362 cm³	160 hp	118 kW	221 N⋅m	Automatic	FWD
2.4 AT	Gasoline	2362 cm³	160 hp	118 kW	221 N⋅m	Automatic	AWD
3.0 AT	Gasoline	2994 cm³	220 hp	162 kW	304 N⋅m	Automatic	FWD
3.0 AT	Gasoline	2994 cm³	220 hp	162 kW	304 N⋅m	Automatic	AWD
3.5 AT	Gasoline	3456 cm³	276 hp	203 kW	342 N⋅m	Automatic	FWD
3.5 AT	Gasoline	3456 cm³	276 hp	203 kW	342 N⋅m	Automatic	AWD
3.3 CVT	Hybrid	3310 cm³	211 hp	155 kW	288 N⋅m	Variable	AWD

Toyota Harrier Dimensions

SUV 5-doors — Toyota Harrier Dimensions

SUV 5-doors Toyota Harrier Dimensions
Modification	Length	Width	Height	Wheelbase	Curb weight	Max weight	Ground clearance, minimum
2.4 AT	4730 mm	1845 mm	1680 mm	2715 mm	1600 kg	Not provided	185 mm
2.4 AT	4730 mm	1845 mm	1680 mm	2715 mm	1710 kg	Not provided	185 mm
3.0 AT	4730 mm	1845 mm	1680 mm	2715 mm	1670 kg	Not provided	185 mm
3.0 AT	4730 mm	1845 mm	1680 mm	2715 mm	1830 kg	Not provided	180 mm
3.5 AT	4730 mm	1845 mm	1680 mm	2715 mm	1820 kg	Not provided	190 mm
3.5 AT	4730 mm	1845 mm	1680 mm	2715 mm	1835 kg	2380 kg	190 mm
3.3 CVT	4730 mm	1845 mm	1680 mm	2715 mm	1930 kg	2505 kg	185 mm

Toyota Harrier Cargo Space

SUV 5-doors — Toyota Harrier Cargo Space

SUV 5-doors Toyota Harrier Cargo Space
Modification	Trunk volume min	Trunk volume max
2.4 AT	440 l	2130 l
2.4 AT	440 l	2130 l
3.0 AT	440 l	2130 l
3.0 AT	440 l	2130 l
3.5 AT	440 l	2130 l
3.5 AT	440 l	2130 l
3.3 CVT	440 l	2130 l

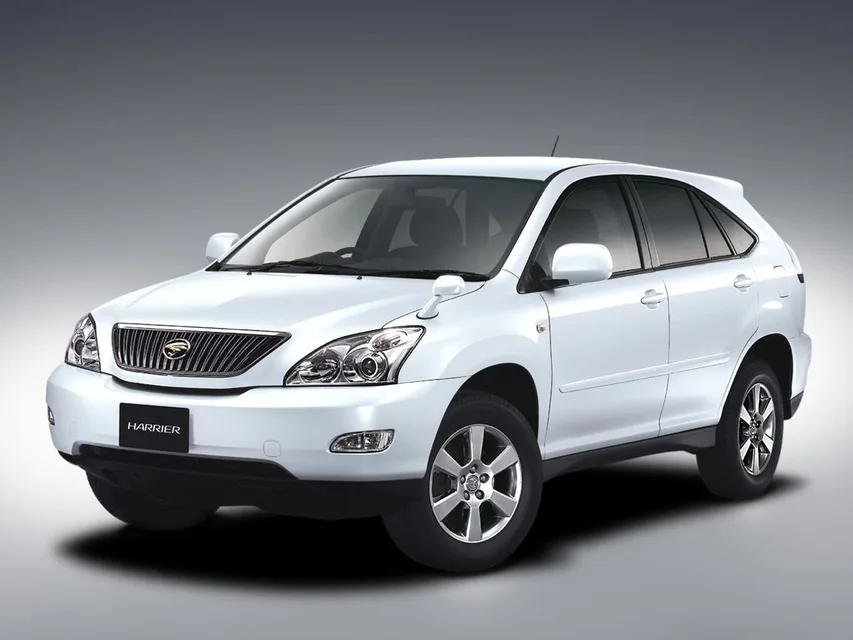

Toyota Harrier Specs, Engines & Dimensions (2003–2013) — Second Generation
