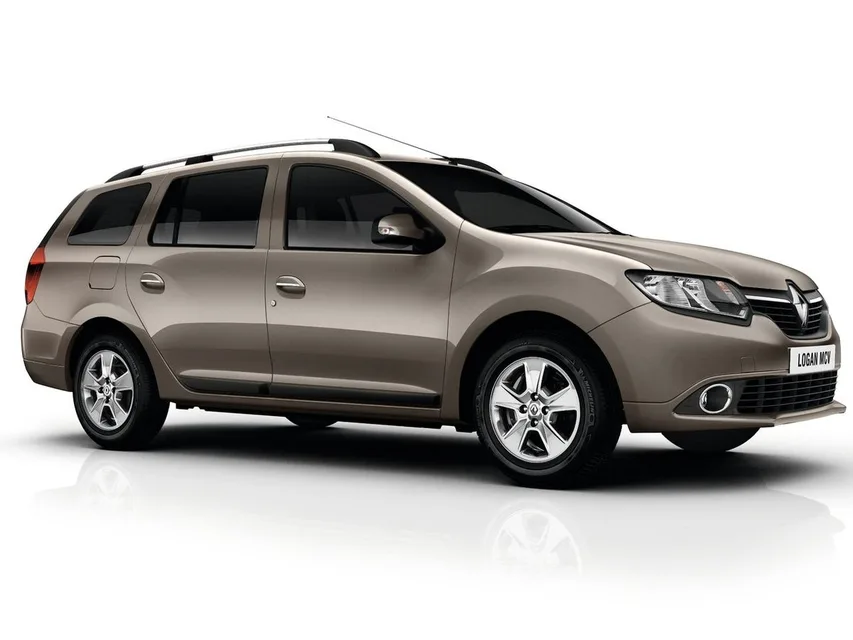

Renault Logan Specs, Engines & Dimensions (2014–2018) — Second Generation

The second-generation Renault Logan offers Sedan and Estate 5-door body styles. Your choice comes down to how you carry luggage: a separate boot suits everyday bags, while an estate makes loading bulky items easier.

← All Renault models

11 modificationsAll supplied years

Renault Logan Engines and Transmissions

Renault Logan engine and transmission choices include the gasoline 1.6 AT automatic, diesel 1.5 MT manual and gasoline 1.6 EDC with an automated gearbox. These selected Sedan versions all use front-wheel drive. Consider whether you prefer changing gears yourself or having the transmission handle shifts in traffic.

Sedan — Renault Logan Engines and Transmissions

Sedan Renault Logan Engines and Transmissions
ModificationEngine typeEngine capacityMaximum powerMaximum power, kwMaximum torque N⋅mTransmissionType of drive
1.6 MTGasoline1598 cm³82 hp61 kW134 N⋅mManualFWD
1.6 ATGasoline1598 cm³102 hp75 kW145 N⋅mAutomaticFWD
1.6 MTGasoline1598 cm³102 hp75 kW145 N⋅mManualFWD
1.6 MTGasoline1598 cm³113 hp83 kW152 N⋅mManualFWD
1.2 MTGasoline1149 cm³73 hp54 kW105 N⋅mManualFWD
1.6 EDCGasoline1598 cm³82 hp61 kW134 N⋅mRoboticFWD
1.5 MTDiesel1461 cm³90 hp66 kW200 N⋅mManualFWD

Estate 5-door — Renault Logan Engines and Transmissions

Estate 5-door Renault Logan Engines and Transmissions
ModificationEngine typeEngine capacityMaximum powerMaximum power, kwMaximum torque N⋅mTransmissionType of drive
1.2 MTGasoline1149 cm³72 hp53 kW105 N⋅mManualFWD
1.2 MTGasoline1149 cm³73 hp54 kW105 N⋅mManualFWD
1.6 MTGasoline1598 cm³80 hp59 kW128 N⋅mManualFWD
1.5 MTDiesel1461 cm³84 hp62 kW200 N⋅mManualFWD

Renault Logan Dimensions

Sedan — Renault Logan Dimensions

Sedan Renault Logan Dimensions
ModificationLengthWidthHeightWheelbaseCurb weightMax weightGround clearance, minimum
1.6 MT4346 mm1733 mm1517 mm2634 mm1106 kg1545 kg155 mm
1.6 AT4346 mm1733 mm1517 mm2634 mm1156 kg1600 kg155 mm
1.6 MT4346 mm1733 mm1517 mm2634 mm1127 kg1545 kg155 mm
1.6 MT4346 mm1733 mm1517 mm2634 mm1125 kg1550 kg155 mm
1.2 MT4346 mm1733 mm1517 mm2634 mm974 kg1505 kg167 mm
1.6 EDC4346 mm1733 mm1517 mm2634 mm1126 kg1550 kg155 mm
1.5 MT4346 mm1733 mm1517 mm2634 mm1045 kg1575 kg175 mm

Estate 5-door — Renault Logan Dimensions

Estate 5-door Renault Logan Dimensions
ModificationLengthWidthHeightWheelbaseCurb weightMax weightGround clearance, minimum
1.2 MT4492 mm1733 mm1570 mm2634 mm1049 kg1505 kg162 mm
1.2 MT4492 mm1733 mm1570 mm2634 mm1049 kg1505 kg162 mm
1.6 MT4492 mm1733 mm1570 mm2634 mm1049 kg1505 kg162 mm
1.5 MT4492 mm1733 mm1570 mm2634 mm1033 kg1505 kg162 mm

Renault Logan Cargo Space

Sedan — Renault Logan Cargo Space

Sedan Renault Logan Cargo Space
ModificationTrunk volume min
1.6 MT510 l
1.6 AT510 l
1.6 MT510 l
1.6 MT510 l
1.2 MT510 l
1.6 EDC510 l
1.5 MT510 l

Estate 5-door — Renault Logan Cargo Space

Estate 5-door Renault Logan Cargo Space
ModificationTrunk volume minTrunk volume max
1.2 MT573 l1518 l
1.2 MT573 l1518 l
1.6 MT573 l1518 l
1.5 MT573 l1518 l

Renault Logan Trims and Equipment

Renault Logan trim levels distinguish equipment packages within a technical version: the 1.6 AT Sedan, for example, has Confort and Luxe Privilege configurations. When choosing between them, compare the individual car’s comfort features and cabin equipment, since the engine and transmission designation alone does not tell you what is included.

Renault Logan Trims and Equipment
ModificationBodyEquipment
1.6 MTSedanAccess
1.6 MTSedanConfort
1.6 MTSedanLuxe Privilege
1.6 MTSedanPrivilege
1.6 ATSedanConfort
1.6 ATSedanLuxe Privilege
1.6 ATSedanPrivilege
1.6 ATSedanActive
1.6 MTSedanConfort
1.6 MTSedanLuxe Privilege
1.6 MTSedanPrivilege
1.6 MTSedanConfort
