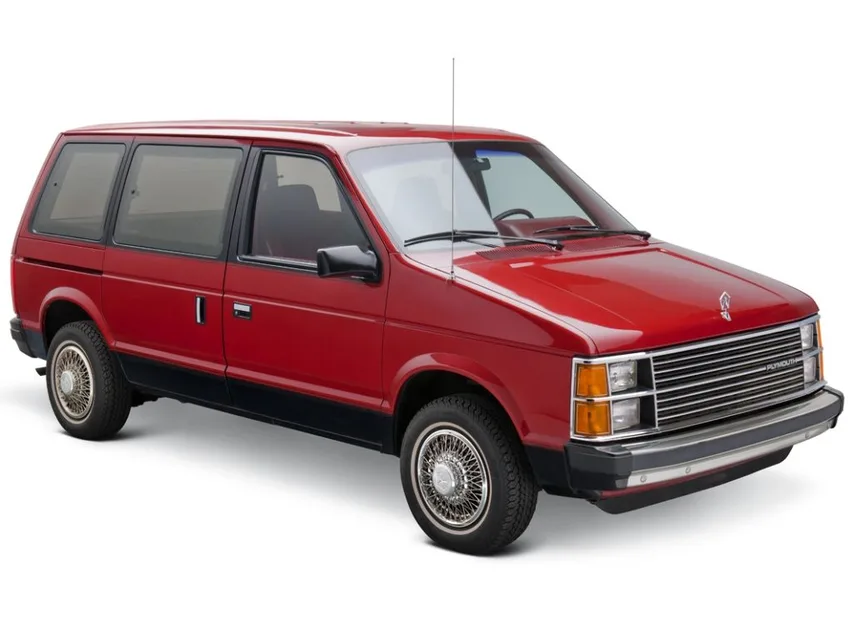

Plymouth Voyager Specs, Engines & Dimensions (1984–1990) — First Generation

The first-generation Plymouth Voyager offers practical family transport in a minivan body. When choosing one, consider how it drives with passengers aboard as well as its mechanical condition.

← All Plymouth models

10 modificationsAll supplied years

Plymouth Voyager Engines and Transmissions

Selected Plymouth Voyager powertrain choices include the gasoline, front-wheel-drive 2.2 AT, 2.2 MT and 3.0 MT. The automatic transmission in the 2.2 AT makes stop-start traffic less demanding. The manual versions let you choose when to shift, giving you direct control over gear selection on hills or with a full passenger load.

Minivan — Plymouth Voyager Engines and Transmissions

Minivan Plymouth Voyager Engines and Transmissions
ModificationEngine typeEngine capacityMaximum powerMaximum power, kwMaximum torque N⋅mTransmissionType of drive
2.2 ATGasoline2213 cm³94 hp69 kW165 N⋅mAutomaticFWD
2.2 MTGasoline2213 cm³94 hp69 kW165 N⋅mManualFWD
2.5 MTGasoline2501 cm³102 hp75 kW183 N⋅mManualFWD
2.5 ATGasoline2501 cm³102 hp75 kW183 N⋅mAutomaticFWD
2.5 ATGasoline2501 cm³152 hp112 kW244 N⋅mAutomaticFWD
2.5 MTGasoline2501 cm³152 hp112 kW244 N⋅mManualFWD
3.0 MTGasoline2972 cm³143 hp105 kW232 N⋅mManualFWD
3.0 ATGasoline2972 cm³143 hp105 kW232 N⋅mAutomaticFWD
3.3 MTGasoline3301 cm³152 hp112 kW251 N⋅mManualFWD
3.3 ATGasoline3301 cm³152 hp112 kW251 N⋅mAutomaticFWD

Plymouth Voyager Dimensions

Minivan — Plymouth Voyager Dimensions

Minivan Plymouth Voyager Dimensions
ModificationLengthWidthHeightWheelbaseGround clearance, minimum
2.2 AT4468 mm1834 mm1636 mm2845 mm130 mm
2.2 MT4468 mm1834 mm1636 mm2845 mm130 mm
2.5 MT4468 mm1834 mm1636 mm2845 mm130 mm
2.5 AT4468 mm1834 mm1636 mm2845 mm130 mm
2.5 AT4468 mm1834 mm1636 mm2845 mm130 mm
2.5 MT4468 mm1834 mm1636 mm2845 mm130 mm
3.0 MT4468 mm1834 mm1636 mm2845 mm130 mm
3.0 AT4468 mm1834 mm1636 mm2845 mm130 mm
3.3 MT4468 mm1834 mm1636 mm2845 mm130 mm
3.3 AT4468 mm1834 mm1636 mm2845 mm130 mm
