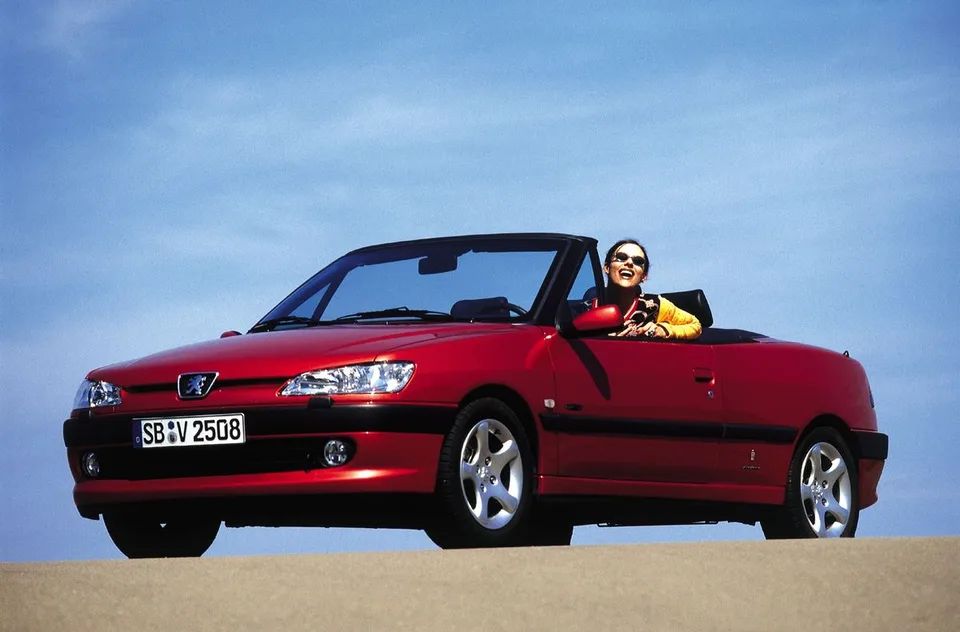

Peugeot 306 Specs, Engines & Dimensions (1993–2002) — First Generation

The first-generation Peugeot 306 is a compact car you can choose as a Cabrio, Sedan, Estate 5-door, Mini 5-doors or Mini 3-doors, depending on how much space and open-air driving you want.

← All Peugeot models

Peugeot 306 Engines and Transmissions

You will find a Peugeot 306 engine in petrol or diesel form, with automatic or manual transmission and front-wheel drive. Examples include the 1.8 AT and 2.0 AT Cabrio gasoline automatics, plus the 2.0 MT Sedan diesel with a manual. Those are selected powertrains, not the full lineup.

Cabrio — Peugeot 306 Engines and Transmissions

Cabrio Peugeot 306 Engines and Transmissions
Modification	Engine type	Engine capacity	Maximum power	Maximum power, kw	Maximum torque N⋅m	Transmission	Type of drive
1.6 MT	Gasoline	1587 cm³	89 hp	65 kW	135 N⋅m	Manual	FWD
1.6 MT	Gasoline	1587 cm³	109 hp	80 kW	147 N⋅m	Manual	FWD
2.0 MT	Gasoline	1998 cm³	121 hp	89 kW	176 N⋅m	Manual	FWD
1.8 MT	Gasoline	1761 cm³	110 hp	81 kW	155 N⋅m	Manual	FWD
1.8 AT	Gasoline	1762 cm³	101 hp	74 kW	153 N⋅m	Automatic	FWD
1.8 MT	Gasoline	1762 cm³	101 hp	74 kW	153 N⋅m	Manual	FWD
2.0 MT	Gasoline	1998 cm³	132 hp	98 kW	180 N⋅m	Manual	FWD
2.0 AT	Gasoline	1998 cm³	132 hp	97 kW	180 N⋅m	Automatic	FWD

Sedan — Peugeot 306 Engines and Transmissions

Sedan Peugeot 306 Engines and Transmissions
Modification	Engine type	Engine capacity	Maximum power	Maximum power, kw	Maximum torque N⋅m	Transmission	Type of drive
1.1 MT	Gasoline	1124 cm³	60 hp	44 kW	88 N⋅m	Manual	FWD
1.8 MT	Gasoline	1762 cm³	101 hp	74 kW	153 N⋅m	Manual	FWD
1.9 AT	Gasoline	1905 cm³	121 hp	89 kW	176 N⋅m	Automatic	FWD
1.9 MT	Gasoline	1905 cm³	121 hp	89 kW	176 N⋅m	Manual	FWD
2.0 MT	Gasoline	1998 cm³	150 hp	110 kW	183 N⋅m	Manual	FWD
1.9 MT	Diesel	1905 cm³	68 hp	50 kW	120 N⋅m	Manual	FWD
1.6 MT	Gasoline	1587 cm³	98 hp	72 kW	138 N⋅m	Manual	FWD
1.4 MT	Gasoline	1361 cm³	75 hp	55 kW	111 N⋅m	Manual	FWD
1.6 MT	Gasoline	1587 cm³	89 hp	65 kW	135 N⋅m	Manual	FWD
1.8 MT	Gasoline	1761 cm³	110 hp	81 kW	155 N⋅m	Manual	FWD
1.8 AT	Gasoline	1762 cm³	101 hp	74 kW	153 N⋅m	Automatic	FWD
2.0 MT	Gasoline	1998 cm³	132 hp	97 kW	180 N⋅m	Manual	FWD
1.9 MT	Diesel	1868 cm³	69 hp	51 kW	125 N⋅m	Manual	FWD
1.9 MT	Diesel	1900 cm³	75 hp	55 kW	Not provided	Manual	FWD
1.9 MT	Diesel	1905 cm³	90 hp	66 kW	196 N⋅m	Manual	FWD
2.0 MT	Diesel	1997 cm³	90 hp	66 kW	205 N⋅m	Manual	FWD
1.6 AT	Gasoline	1587 cm³	98 hp	72 kW	138 N⋅m	Automatic	FWD
1.6 AT	Gasoline	1587 cm³	89 hp	65 kW	135 N⋅m	Automatic	FWD

Estate 5-door — Peugeot 306 Engines and Transmissions

Estate 5-door Peugeot 306 Engines and Transmissions
Modification	Engine type	Engine capacity	Maximum power	Maximum power, kw	Maximum torque N⋅m	Transmission	Type of drive
1.4 MT	Gasoline	1361 cm³	75 hp	55 kW	111 N⋅m	Manual	FWD
1.8 MT	Gasoline	1761 cm³	110 hp	81 kW	155 N⋅m	Manual	FWD
1.8 MT	Gasoline	1762 cm³	101 hp	74 kW	153 N⋅m	Manual	FWD
2.0 MT	Gasoline	1998 cm³	132 hp	97 kW	180 N⋅m	Manual	FWD
2.0 AT	Gasoline	1998 cm³	132 hp	97 kW	180 N⋅m	Automatic	FWD
1.9 MT	Diesel	1900 cm³	75 hp	55 kW	Not provided	Manual	FWD
1.9 MT	Diesel	1905 cm³	68 hp	50 kW	120 N⋅m	Manual	FWD
1.9 MT	Diesel	1905 cm³	90 hp	66 kW	196 N⋅m	Manual	FWD
2.0 MT	Diesel	1997 cm³	90 hp	66 kW	205 N⋅m	Manual	FWD
1.6 MT	Gasoline	1587 cm³	89 hp	65 kW	135 N⋅m	Manual	FWD
1.8 AT	Gasoline	1762 cm³	101 hp	74 kW	153 N⋅m	Automatic	FWD
1.9 MT	Diesel	1868 cm³	69 hp	51 kW	125 N⋅m	Manual	FWD
1.6 AT	Gasoline	1587 cm³	89 hp	65 kW	135 N⋅m	Automatic	FWD

Mini 5-doors — Peugeot 306 Engines and Transmissions

Mini 5-doors Peugeot 306 Engines and Transmissions
Modification	Engine type	Engine capacity	Maximum power	Maximum power, kw	Maximum torque N⋅m	Transmission	Type of drive
1.9 MT	Diesel	1868 cm³	69 hp	51 kW	125 N⋅m	Manual	FWD
1.1 MT	Gasoline	1124 cm³	60 hp	44 kW	88 N⋅m	Manual	FWD
2.0 MT	Gasoline	1998 cm³	132 hp	97 kW	180 N⋅m	Manual	FWD
2.0 AT	Gasoline	1998 cm³	132 hp	97 kW	180 N⋅m	Automatic	FWD
2.0 MT	Gasoline	1998 cm³	150 hp	110 kW	183 N⋅m	Manual	FWD
1.9 MT	Diesel	1900 cm³	75 hp	55 kW	Not provided	Manual	FWD
1.9 MT	Diesel	1905 cm³	90 hp	66 kW	196 N⋅m	Manual	FWD
2.0 MT	Diesel	1997 cm³	90 hp	66 kW	205 N⋅m	Manual	FWD
1.4 MT	Gasoline	1361 cm³	75 hp	55 kW	111 N⋅m	Manual	FWD
1.6 MT	Gasoline	1587 cm³	89 hp	65 kW	135 N⋅m	Manual	FWD
1.8 MT	Gasoline	1762 cm³	101 hp	74 kW	153 N⋅m	Manual	FWD
1.8 AT	Gasoline	1762 cm³	101 hp	74 kW	153 N⋅m	Automatic	FWD
2.0 MT	Gasoline	1998 cm³	121 hp	89 kW	176 N⋅m	Manual	FWD
1.9 MT	Diesel	1905 cm³	64 hp	47 kW	118 N⋅m	Manual	FWD
1.9 MT	Diesel	1905 cm³	68 hp	50 kW	120 N⋅m	Manual	FWD
1.6 AT	Gasoline	1587 cm³	98 hp	72 kW	138 N⋅m	Automatic	FWD
1.6 MT	Gasoline	1587 cm³	98 hp	72 kW	138 N⋅m	Manual	FWD
1.6 AT	Gasoline	1587 cm³	89 hp	65 kW	135 N⋅m	Automatic	FWD

Mini 3-doors — Peugeot 306 Engines and Transmissions

Mini 3-doors Peugeot 306 Engines and Transmissions
Modification	Engine type	Engine capacity	Maximum power	Maximum power, kw	Maximum torque N⋅m	Transmission	Type of drive
1.1 MT	Gasoline	1124 cm³	60 hp	44 kW	88 N⋅m	Manual	FWD
1.8 MT	Gasoline	1761 cm³	110 hp	81 kW	155 N⋅m	Manual	FWD
1.8 AT	Gasoline	1761 cm³	110 hp	81 kW	155 N⋅m	Automatic	FWD
1.8 MT	Gasoline	1762 cm³	101 hp	74 kW	153 N⋅m	Manual	FWD
2.0 MT	Gasoline	1998 cm³	121 hp	89 kW	176 N⋅m	Manual	FWD
2.0 AT	Gasoline	1998 cm³	132 hp	97 kW	180 N⋅m	Automatic	FWD
2.0 MT	Gasoline	1998 cm³	150 hp	110 kW	183 N⋅m	Manual	FWD
1.9 MT	Diesel	1868 cm³	69 hp	51 kW	125 N⋅m	Manual	FWD
1.9 AT	Diesel	1900 cm³	75 hp	55 kW	Not provided	Automatic	FWD
1.9 MT	Diesel	1900 cm³	75 hp	55 kW	Not provided	Manual	FWD
1.9 MT	Diesel	1905 cm³	64 hp	47 kW	118 N⋅m	Manual	FWD
1.9 MT	Diesel	1905 cm³	68 hp	50 kW	120 N⋅m	Manual	FWD
1.9 MT	Diesel	1905 cm³	90 hp	66 kW	196 N⋅m	Manual	FWD
2.0 AT	Diesel	1997 cm³	90 hp	66 kW	205 N⋅m	Automatic	FWD
1.4 MT	Gasoline	1361 cm³	75 hp	55 kW	111 N⋅m	Manual	FWD
1.6 MT	Gasoline	1587 cm³	89 hp	65 kW	135 N⋅m	Manual	FWD
1.8 AT	Gasoline	1762 cm³	101 hp	74 kW	153 N⋅m	Automatic	FWD
2.0 MT	Gasoline	1998 cm³	132 hp	97 kW	180 N⋅m	Manual	FWD
2.0 MT	Gasoline	1998 cm³	163 hp	120 kW	193 N⋅m	Manual	FWD
2.0 MT	Diesel	1997 cm³	90 hp	66 kW	205 N⋅m	Manual	FWD

Peugeot 306 Dimensions

Cabrio — Peugeot 306 Dimensions

Cabrio Peugeot 306 Dimensions
Modification	Length	Width	Height	Wheelbase	Curb weight	Max weight	Ground clearance, minimum
1.6 MT	4144 mm	1689 mm	1356 mm	2540 mm	1210 kg	1640 kg	120 mm
1.6 MT	4144 mm	1689 mm	1356 mm	2540 mm	1210 kg	1640 kg	110 mm
2.0 MT	4144 mm	1689 mm	1356 mm	2540 mm	1260 kg	1610 kg	130 mm
1.8 MT	4144 mm	1689 mm	1356 mm	2540 mm	1250 kg	1660 kg	110 mm
1.8 AT	4144 mm	1689 mm	1356 mm	2540 mm	1220 kg	1655 kg	130 mm
1.8 MT	4144 mm	1689 mm	1356 mm	2540 mm	1140 kg	1570 kg	110 mm
2.0 MT	4144 mm	1689 mm	1356 mm	2540 mm	1270 kg	1680 kg	130 mm
2.0 AT	4144 mm	1689 mm	1356 mm	2540 mm	1270 kg	1680 kg	130 mm

Sedan — Peugeot 306 Dimensions

Sedan Peugeot 306 Dimensions
Modification	Length	Width	Height	Wheelbase	Curb weight	Max weight	Ground clearance, minimum
1.1 MT	4232 mm	1689 mm	1386 mm	2580 mm	Not provided	Not provided	130 mm
1.8 MT	4232 mm	1689 mm	1386 mm	2580 mm	1100 kg	1625 kg	130 mm
1.9 AT	4232 mm	1689 mm	1386 mm	2580 mm	1141 kg	1675 kg	130 mm
1.9 MT	4232 mm	1689 mm	1386 mm	2580 mm	1150 kg	1675 kg	130 mm
2.0 MT	4232 mm	1689 mm	1386 mm	2580 mm	Not provided	Not provided	Not provided
1.9 MT	4232 mm	1689 mm	1386 mm	2580 mm	1100 kg	1625 kg	130 mm
1.6 MT	4232 mm	1689 mm	1386 mm	2580 mm	1090 kg	1555 kg	130 mm
1.4 MT	4232 mm	1689 mm	1386 mm	2580 mm	1040 kg	1565 kg	130 mm
1.6 MT	4232 mm	1689 mm	1386 mm	2580 mm	1080 kg	1605 kg	130 mm
1.8 MT	4232 mm	1689 mm	1386 mm	2580 mm	1100 kg	1625 kg	130 mm
1.8 AT	4232 mm	1689 mm	1386 mm	2580 mm	1100 kg	1625 kg	130 mm
2.0 MT	4232 mm	1689 mm	1386 mm	2580 mm	1160 kg	1650 kg	130 mm
1.9 MT	4232 mm	1689 mm	1386 mm	2580 mm	1100 kg	1590 kg	130 mm
1.9 MT	4232 mm	1689 mm	1386 mm	2580 mm	Not provided	Not provided	130 mm
1.9 MT	4232 mm	1689 mm	1386 mm	2580 mm	1140 kg	1665 kg	130 mm
2.0 MT	4232 mm	1689 mm	1386 mm	2580 mm	1165 kg	1635 kg	130 mm
1.6 AT	4232 mm	1689 mm	1386 mm	2580 mm	1110 kg	1575 kg	130 mm
1.6 AT	4232 mm	1689 mm	1386 mm	2580 mm	1140 kg	Not provided	130 mm

Estate 5-door — Peugeot 306 Dimensions

Estate 5-door Peugeot 306 Dimensions
Modification	Length	Width	Height	Wheelbase	Curb weight	Max weight	Ground clearance, minimum
1.4 MT	4345 mm	1690 mm	1410 mm	2580 mm	1020 kg	1530 kg	130 mm
1.8 MT	4345 mm	1690 mm	1410 mm	2580 mm	1200 kg	1645 kg	120 mm
1.8 MT	4345 mm	1690 mm	1410 mm	2580 mm	1080 kg	1645 kg	130 mm
2.0 MT	4345 mm	1690 mm	1410 mm	2580 mm	1160 kg	1650 kg	130 mm
2.0 AT	4345 mm	1690 mm	1410 mm	2580 mm	1205 kg	1665 kg	120 mm
1.9 MT	4345 mm	1690 mm	1410 mm	2580 mm	Not provided	Not provided	120 mm
1.9 MT	4345 mm	1690 mm	1410 mm	2580 mm	1080 kg	1590 kg	120 mm
1.9 MT	4345 mm	1690 mm	1410 mm	2580 mm	1120 kg	1630 kg	130 mm
2.0 MT	4345 mm	1690 mm	1410 mm	2580 mm	1200 kg	1655 kg	120 mm
1.6 MT	4345 mm	1690 mm	1410 mm	2580 mm	1060 kg	1570 kg	130 mm
1.8 AT	4345 mm	1690 mm	1410 mm	2580 mm	1080 kg	1645 kg	130 mm
1.9 MT	4345 mm	1690 mm	1410 mm	2580 mm	1140 kg	1625 kg	120 mm
1.6 AT	4345 mm	1690 mm	1410 mm	2580 mm	Not provided	1605 kg	130 mm

Mini 5-doors — Peugeot 306 Dimensions

Mini 5-doors Peugeot 306 Dimensions
Modification	Length	Width	Height	Wheelbase	Curb weight	Max weight	Ground clearance, minimum
1.9 MT	3995 mm	1692 mm	1380 mm	2580 mm	1080 kg	1530 kg	110 mm
1.1 MT	3995 mm	1692 mm	1380 mm	2580 mm	980 kg	1490 kg	130 mm
2.0 MT	3995 mm	1692 mm	1380 mm	2580 mm	1160 kg	1625 kg	110 mm
2.0 AT	3995 mm	1692 mm	1380 mm	2580 mm	1160 kg	1625 kg	110 mm
2.0 MT	3995 mm	1692 mm	1380 mm	2580 mm	1160 kg	1670 kg	130 mm
1.9 MT	3995 mm	1692 mm	1380 mm	2580 mm	Not provided	Not provided	110 mm
1.9 MT	3995 mm	1692 mm	1380 mm	2580 mm	1120 kg	1630 kg	110 mm
2.0 MT	3995 mm	1692 mm	1380 mm	2580 mm	1135 kg	1585 kg	110 mm
1.4 MT	3995 mm	1692 mm	1380 mm	2580 mm	1020 kg	1530 kg	110 mm
1.6 MT	3995 mm	1692 mm	1380 mm	2580 mm	1060 kg	1570 kg	130 mm
1.8 MT	3995 mm	1692 mm	1380 mm	2580 mm	1041 kg	1590 kg	110 mm
1.8 AT	3995 mm	1692 mm	1380 mm	2580 mm	1072 kg	1590 kg	110 mm
2.0 MT	3995 mm	1692 mm	1380 mm	2580 mm	1140 kg	1650 kg	110 mm
1.9 MT	3995 mm	1692 mm	1380 mm	2580 mm	Not provided	Not provided	110 mm
1.9 MT	3995 mm	1692 mm	1380 mm	2580 mm	1080 kg	1590 kg	110 mm
1.6 AT	3995 mm	1692 mm	1380 mm	2580 mm	1110 kg	1575 kg	130 mm
1.6 MT	3995 mm	1692 mm	1380 mm	2580 mm	1090 kg	1555 kg	130 mm
1.6 AT	3995 mm	1692 mm	1380 mm	2580 mm	Not provided	1600 kg	130 mm

Mini 3-doors — Peugeot 306 Dimensions

Mini 3-doors Peugeot 306 Dimensions
Modification	Length	Width	Height	Wheelbase	Curb weight	Max weight	Ground clearance, minimum
1.1 MT	3995 mm	1692 mm	1380 mm	2580 mm	980 kg	1490 kg	110 mm
1.8 MT	3995 mm	1692 mm	1380 mm	2580 mm	1085 kg	1560 kg	110 mm
1.8 AT	3995 mm	1692 mm	1380 mm	2580 mm	Not provided	1560 kg	110 mm
1.8 MT	3995 mm	1692 mm	1380 mm	2580 mm	1080 kg	1645 kg	130 mm
2.0 MT	3995 mm	1692 mm	1380 mm	2580 mm	1140 kg	1650 kg	130 mm
2.0 AT	3995 mm	1692 mm	1380 mm	2580 mm	Not provided	1625 kg	110 mm
2.0 MT	3995 mm	1692 mm	1380 mm	2580 mm	1160 kg	1670 kg	110 mm
1.9 MT	3995 mm	1692 mm	1380 mm	2580 mm	1080 kg	1530 kg	110 mm
1.9 AT	3995 mm	1692 mm	1380 mm	2580 mm	Not provided	Not provided	110 mm
1.9 MT	3995 mm	1692 mm	1380 mm	2580 mm	Not provided	Not provided	110 mm
1.9 MT	3995 mm	1692 mm	1380 mm	2580 mm	Not provided	Not provided	110 mm
1.9 MT	3995 mm	1692 mm	1380 mm	2580 mm	1080 kg	1590 kg	120 mm
1.9 MT	3995 mm	1692 mm	1380 mm	2580 mm	1120 kg	1630 kg	130 mm
2.0 AT	3995 mm	1692 mm	1380 mm	2580 mm	Not provided	1585 kg	110 mm
1.4 MT	3995 mm	1692 mm	1380 mm	2580 mm	1020 kg	1530 kg	130 mm
1.6 MT	3995 mm	1692 mm	1380 mm	2580 mm	1060 kg	1570 kg	110 mm
1.8 AT	3995 mm	1692 mm	1380 mm	2580 mm	1080 kg	1645 kg	130 mm
2.0 MT	3995 mm	1692 mm	1380 mm	2580 mm	1160 kg	1650 kg	130 mm
2.0 MT	3995 mm	1692 mm	1380 mm	2580 mm	1160 kg	1650 kg	130 mm
2.0 MT	3995 mm	1692 mm	1380 mm	2580 mm	1135 kg	1585 kg	110 mm

Peugeot 306 Cargo Space

Cabrio — Peugeot 306 Cargo Space

Cabrio Peugeot 306 Cargo Space
Modification	Trunk volume min
1.6 MT	275 l
1.6 MT	275 l
2.0 MT	275 l
1.8 MT	275 l
1.8 AT	275 l
1.8 MT	275 l
2.0 MT	275 l
2.0 AT	275 l

Sedan — Peugeot 306 Cargo Space

Sedan Peugeot 306 Cargo Space
Modification	Trunk volume min
1.1 MT	463 l
1.8 MT	463 l
1.9 AT	463 l
1.9 MT	463 l
2.0 MT	463 l
1.9 MT	463 l
1.6 MT	463 l
1.4 MT	463 l
1.6 MT	463 l
1.8 MT	463 l
1.8 AT	463 l
2.0 MT	463 l
1.9 MT	463 l
1.9 MT	463 l
1.9 MT	463 l
2.0 MT	463 l
1.6 AT	463 l
1.6 AT	463 l

Estate 5-door — Peugeot 306 Cargo Space

Estate 5-door Peugeot 306 Cargo Space
Modification	Trunk volume min
1.4 MT	1100 l
1.8 MT	1100 l
1.8 MT	1100 l
2.0 MT	1100 l
2.0 AT	1100 l
1.9 MT	1100 l
1.9 MT	1100 l
1.9 MT	1100 l
2.0 MT	1100 l
1.6 MT	1100 l
1.8 AT	1100 l
1.9 MT	1100 l
1.6 AT	1100 l

Mini 5-doors — Peugeot 306 Cargo Space

Mini 5-doors Peugeot 306 Cargo Space
Modification	Trunk volume min	Trunk volume max
1.9 MT	338 l	637 l
1.1 MT	338 l	637 l
2.0 MT	338 l	637 l
2.0 AT	338 l	637 l
2.0 MT	338 l	637 l
1.9 MT	338 l	637 l
1.9 MT	338 l	637 l
2.0 MT	338 l	637 l
1.4 MT	338 l	637 l
1.6 MT	338 l	637 l
1.8 MT	338 l	637 l
1.8 AT	338 l	637 l
2.0 MT	338 l	637 l
1.9 MT	338 l	637 l
1.9 MT	338 l	637 l
1.6 AT	338 l	637 l
1.6 MT	338 l	637 l
1.6 AT	338 l	637 l

Mini 3-doors — Peugeot 306 Cargo Space

Mini 3-doors Peugeot 306 Cargo Space
Modification	Trunk volume min	Trunk volume max
1.1 MT	338 l	637 l
1.8 MT	338 l	637 l
1.8 AT	338 l	637 l
1.8 MT	338 l	637 l
2.0 MT	338 l	637 l
2.0 AT	338 l	637 l
2.0 MT	338 l	637 l
1.9 MT	338 l	637 l
1.9 AT	338 l	637 l
1.9 MT	338 l	637 l
1.9 MT	338 l	637 l
1.9 MT	338 l	637 l
1.9 MT	338 l	637 l
2.0 AT	338 l	637 l
1.4 MT	338 l	637 l
1.6 MT	338 l	637 l
1.8 AT	338 l	637 l
2.0 MT	338 l	637 l
2.0 MT	338 l	637 l
2.0 MT	338 l	637 l
