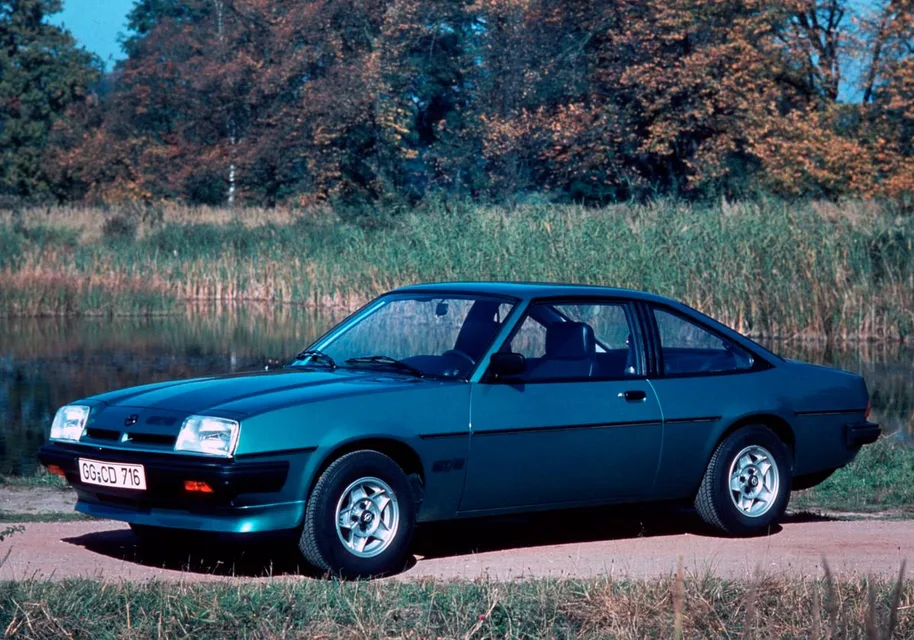

Opel Manta Specs, Engines & Dimensions (1975–1988) — Second Generation
The second-generation Opel Manta balances classic coupe style with everyday usability. Offered in Coupe and three-door hatchback bodies, it provides a range of gasoline engines and transmission options to suit different driving preferences, all driving the rear wheels.
Opel Manta Engines and Transmissions
Opel Manta Dimensions
← All Opel models
Opel Manta Engines and Transmissions
The Opel Manta engine lineup centers on proven gasoline units paired with manual or automatic transmissions. For example, the 1.8 MT offers a manual gearbox, while the 1.9 AT and 2.0 AT provide automatic shifting. All send power to the rear wheels, giving the Manta a classic sporty feel.
Coupe — Opel Manta Engines and Transmissions
Coupe Opel Manta Engines and Transmissions Modification Engine type Engine capacity Maximum power Maximum power, kw Maximum torque N⋅m Transmission Type of drive
1.3 MT Gasoline 1297 cm³ 60 hp 44 kW 92 N⋅m Manual RWD 1.3 MT Gasoline 1297 cm³ 75 hp 55 kW 96 N⋅m Manual RWD 1.9 MT Gasoline 1900 cm³ 75 hp 55 kW 132 N⋅m Manual RWD 2.0 MT Gasoline 1979 cm³ 90 hp 66 kW 142 N⋅m Manual RWD 2.0 MT Gasoline 1979 cm³ 110 hp 81 kW 162 N⋅m Manual RWD 1.2 MT Gasoline 1196 cm³ 55 hp 40 kW 78 N⋅m Manual RWD 1.2 MT Gasoline 1196 cm³ 60 hp 44 kW 83 N⋅m Manual RWD 1.6 MT Gasoline 1587 cm³ 75 hp 55 kW 123 N⋅m Manual RWD 1.8 MT Gasoline 1796 cm³ 90 hp 66 kW 148 N⋅m Manual RWD 1.9 MT Gasoline 1897 cm³ 90 hp 66 kW 145 N⋅m Manual RWD 1.9 MT Gasoline 1900 cm³ 105 hp 77 kW Not provided Manual RWD 1.9 AT Gasoline 1900 cm³ 105 hp 77 kW Not provided Automatic RWD 2.0 MT Gasoline 1979 cm³ 100 hp 74 kW 156 N⋅m Manual RWD 2.0 AT Gasoline 1979 cm³ 100 hp 74 kW 156 N⋅m Automatic RWD 2.4 MT Gasoline 2410 cm³ 144 hp 106 kW 210 N⋅m Manual RWD 1.6 MT Gasoline 1584 cm³ 60 hp 44 kW 102 N⋅m Manual RWD
Hatchback 3-door — Opel Manta Engines and Transmissions
Hatchback 3-door Opel Manta Engines and Transmissions Modification Engine type Engine capacity Maximum power Maximum power, kw Maximum torque N⋅m Transmission Type of drive
1.3 MT Gasoline 1297 cm³ 60 hp 44 kW 92 N⋅m Manual RWD 1.3 MT Gasoline 1297 cm³ 75 hp 55 kW 96 N⋅m Manual RWD 1.8 MT Gasoline 1796 cm³ 90 hp 66 kW 145 N⋅m Manual RWD 1.8 AT Gasoline 1796 cm³ 90 hp 66 kW 145 N⋅m Automatic RWD 1.9 MT Gasoline 1900 cm³ 75 hp 55 kW 132 N⋅m Manual RWD 1.9 AT Gasoline 1900 cm³ 75 hp 55 kW 132 N⋅m Automatic RWD 2.0 MT Gasoline 1979 cm³ 90 hp 66 kW 142 N⋅m Manual RWD 2.0 AT Gasoline 1979 cm³ 90 hp 66 kW 142 N⋅m Automatic RWD 2.0 MT Gasoline 1979 cm³ 100 hp 74 kW 170 N⋅m Manual RWD 2.0 AT Gasoline 1979 cm³ 100 hp 74 kW 170 N⋅m Automatic RWD 2.0 MT Gasoline 1979 cm³ 110 hp 81 kW 162 N⋅m Manual RWD 2.0 AT Gasoline 1979 cm³ 110 hp 81 kW 162 N⋅m Automatic RWD 1.6 MT Gasoline 1584 cm³ 60 hp 44 kW 102 N⋅m Manual RWD
Opel Manta Dimensions
Coupe — Opel Manta Dimensions
Coupe Opel Manta Dimensions Modification Length Width Height Wheelbase Ground clearance, minimum
1.3 MT 4440 mm 1670 mm 1330 mm 2520 mm 130 mm 1.3 MT 4440 mm 1670 mm 1330 mm 2520 mm 130 mm 1.9 MT 4440 mm 1670 mm 1330 mm 2520 mm 130 mm 2.0 MT 4440 mm 1670 mm 1330 mm 2520 mm 130 mm 2.0 MT 4440 mm 1670 mm 1330 mm 2520 mm 130 mm 1.2 MT 4440 mm 1670 mm 1330 mm 2520 mm 130 mm 1.2 MT 4440 mm 1670 mm 1330 mm 2520 mm 130 mm 1.6 MT 4440 mm 1670 mm 1330 mm 2520 mm 130 mm 1.8 MT 4440 mm 1670 mm 1330 mm 2520 mm 130 mm 1.9 MT 4440 mm 1670 mm 1330 mm 2520 mm 130 mm 1.9 MT 4440 mm 1670 mm 1330 mm 2520 mm 130 mm 1.9 AT 4440 mm 1670 mm 1330 mm 2520 mm 130 mm 2.0 MT 4440 mm 1670 mm 1330 mm 2520 mm 130 mm 2.0 AT 4440 mm 1670 mm 1330 mm 2520 mm 130 mm 2.4 MT 4440 mm 1670 mm 1330 mm 2520 mm 130 mm 1.6 MT 4440 mm 1670 mm 1330 mm 2520 mm 130 mm
Hatchback 3-door — Opel Manta Dimensions
Hatchback 3-door Opel Manta Dimensions Modification Length Width Height Wheelbase Ground clearance, minimum
1.3 MT 4440 mm 1670 mm 1330 mm 2520 mm 130 mm 1.3 MT 4440 mm 1670 mm 1330 mm 2520 mm 130 mm 1.8 MT 4440 mm 1670 mm 1330 mm 2520 mm 130 mm 1.8 AT 4440 mm 1670 mm 1330 mm 2520 mm 130 mm 1.9 MT 4440 mm 1670 mm 1330 mm 2520 mm 130 mm 1.9 AT 4440 mm 1670 mm 1330 mm 2520 mm 130 mm 2.0 MT 4440 mm 1670 mm 1330 mm 2520 mm 130 mm 2.0 AT 4440 mm 1670 mm 1330 mm 2520 mm 130 mm 2.0 MT 4440 mm 1670 mm 1330 mm 2520 mm 130 mm 2.0 AT 4440 mm 1670 mm 1330 mm 2520 mm 130 mm 2.0 MT 4440 mm 1670 mm 1330 mm 2520 mm 130 mm 2.0 AT 4440 mm 1670 mm 1330 mm 2520 mm 130 mm 1.6 MT 4440 mm 1670 mm 1330 mm 2520 mm 130 mm
