Opel Insignia 2.0 AT Specs — First Generation Restyling
Longer journeys focus on staying settled and alert, so the Opel Insignia 2.0 AT is examined through everyday needs like smooth progress and easy control use.
1 generation, restyling · Estate 5-door

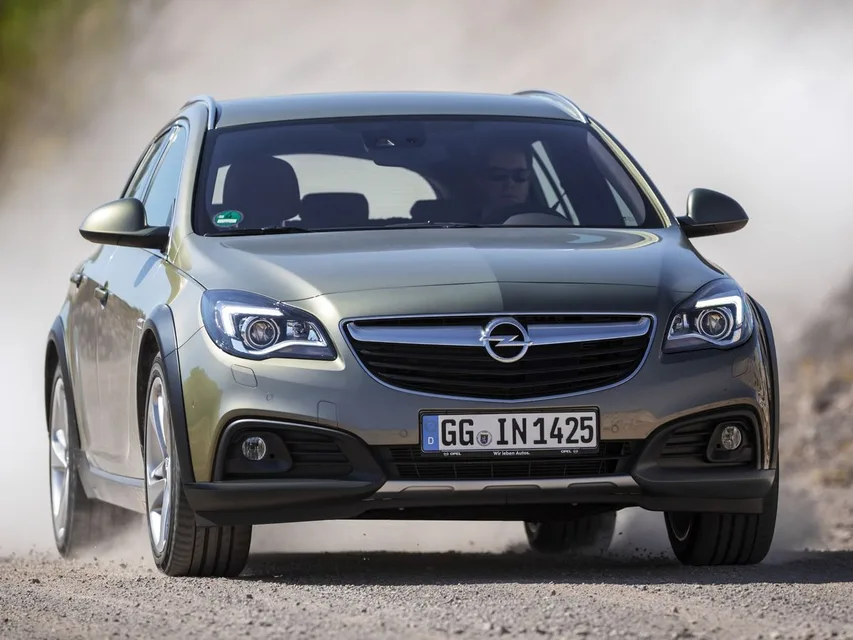

Generation photo. Individual trim appearance may differ.
The highest speed a vehicle can sustain under manufacturer test conditions. Some cars are electronically limited below their mechanical potential. Glossary entry
233 km/h
Engine type
Gasoline
Transmission
Automatic
Type of boost?
A turbocharger or supercharger compresses the air entering the engine so a smaller engine can produce more power. Naturally aspirated engines draw air without a compressor. Glossary entry
Turbo
Type of drive?
Which wheels receive power: front-wheel drive, rear-wheel drive or all-wheel drive. All-wheel drive can send power to every wheel for extra traction. Glossary entry
AWD
Bore and stroke?
The diameter of a cylinder (bore) and the distance the piston travels inside it (stroke). Together they determine the displacement of the engine. Glossary entry
86 × 86 mm
Engine capacity?
The total volume swept by all pistons inside the cylinders, usually stated in cubic centimetres or litres. Larger displacement often means more power but higher consumption. Glossary entry
1998 cm³
Engine location
Front, transverse
Number of gears?
How many fixed forward ratios a gearbox offers. More gears can improve economy and refinement; continuously variable transmissions have no fixed steps. Glossary entry
6
Maximum power?
A unit of engine or motor output. One metric horsepower is about 0.735 kilowatts. Peak power is normally reached at high engine speed. Glossary entry
249 hp
Maximum power, kw?
A unit of engine or motor output. One metric horsepower is about 0.735 kilowatts. Peak power is normally reached at high engine speed. Glossary entry
183 kW
Compression ratio?
The ratio between the largest and smallest volume of a cylinder as the piston moves. Higher ratios improve efficiency but may require higher-octane fuel. Glossary entry
9.5
Maximum power rpm
5300 rpm
Maximum torque N⋅m
400 N⋅m
Maximum torque rpm
2500 – 4500 rpm
Acceleration to 100?
The time a vehicle needs to reach 100 km/h from a standstill, a common shorthand for overall performance. Glossary entry
7.7 s
Engine power system
Distributed injection (multi-point)
Number of cylinders
4
Valves per cylinder?
The number of intake and exhaust valves in each cylinder. Four valves per cylinder is common and helps the engine breathe at higher speeds. Glossary entry
4
Cylinder arrangement
Inline
Maximum power ICE
Not provided
Maximum power ICE
Not provided
Energy & emissions
ECO class
Euro 5
Battery power
Not provided
Fuel grade
95
Mild Hybrid?
A car with a small electric motor and battery that assist the combustion engine and recover braking energy but cannot drive on electricity alone. Glossary entry
Not provided
Battery type
Not provided
CO2 emissions?
The amount of carbon dioxide released per kilometre under a standardised test. Lower figures usually go hand in hand with lower fuel consumption. Glossary entry
Not provided
Full charge home
Not provided
Power consumption
Not provided
Fuel tank capacity
70 l
Full public charging time
Not provided
Driving range, maximum?
The distance an electric or plug-in vehicle can travel on a full charge under a stated test cycle. Temperature, speed and load change the real result. Glossary entry
Not provided
Driving range, minimum?
The distance an electric or plug-in vehicle can travel on a full charge under a stated test cycle. Temperature, speed and load change the real result. Glossary entry
Not provided
Fuel consumption city
12 l
Average consumption
8.5 l
Fuel consumption highway
6.4 l
Dimensions & body
Doors number
5
Number of seats
5
Width
1856 mm
Height
1513 mm
Length
4913 mm
Body type
Estate 5-door
Wheelbase?
The distance between the centres of the front and rear wheels. A longer wheelbase usually gives more cabin space and a calmer ride; a shorter one helps agility and parking. Glossary entry
2737 mm
U-turn diameter
Not provided
Depth of the ford to be crossed
Not provided
Body style
Estate
Rear track width?
The distance between the centres of the two wheels on the same axle. A wider track generally improves stability in corners. Glossary entry
1590 mm
Trunk volume max
1530 l
Trunk volume min
540 l
Front track width?
The distance between the centres of the two wheels on the same axle. A wider track generally improves stability in corners. Glossary entry
1587 mm
Max weight
2400 kg
Curb weight?
The weight of the vehicle with all standard equipment and fluids but without passengers or cargo. Glossary entry
1843 kg
Ground clearance, maximum?
The gap between the lowest point of the underbody and the road. More clearance helps on rough roads and steep driveway ramps. Glossary entry
Not provided
Ground clearance, minimum?
The gap between the lowest point of the underbody and the road. More clearance helps on rough roads and steep driveway ramps. Glossary entry
175 mm
Identity & configuration
Vehicle class
D
Body designation
0G-A
Right-hand drive
No
Additional specifications
Stop
2017-05-31
Start
2013-06-01
Wheel size
Not provided
Rear brakes
Disc
Front brakes
Ventilated disc
Rear suspension
Independent, spring
Front suspension
Independent, spring
No specifications match your search. Try another label or value, or clear the search.
Not provided means the source has no value. Zero remains zero. Units are shown as supplied; range test cycles are only stated when known.
Fuel cost calculator
Estimates use only the figures you enter, in your own currency. No live fuel prices or emissions data are used.
Fuel per trip
L
Trip cost
Monthly cost
Annual cost
Enable JavaScript to calculate estimates.
Engine and Transmission
In everyday driving, predictable acceleration helps with merging and overtaking, so a gearbox that changes ratios without interruption can reduce the need for constant speed corrections on longer runs.
Drivetrain and Everyday Driving
Familiar controls save attention during longer journeys. When indicators, wipers and climate adjustments are easy to reach and operate by feel, the driver can keep eyes on the road and reduce fatigue.
Body and Practicality
Passengers often carry personal items such as water bottles, phones and jackets. Convenience depends on having several accessible storage spaces so that occupants do not need to twist around or open the boot while moving.
