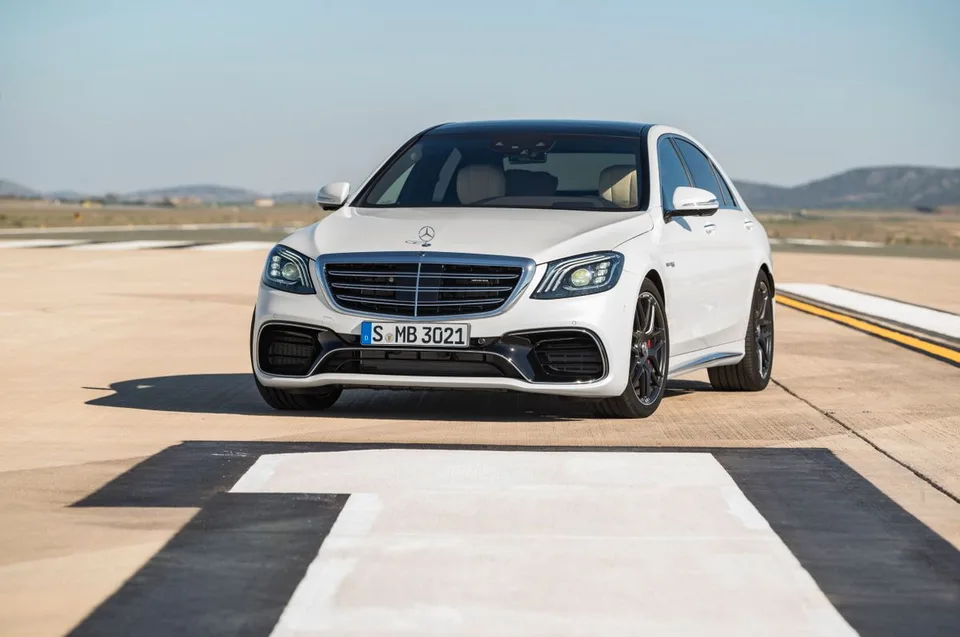

Mercedes S-Class AMG S63 4.0 AT S63 4Matic Equipment — Third Generation Restyling

The Mercedes S-Class AMG S63 4.0 AT S63 4Matic is considered here through the lens of city journeys, the short repeated trips where everyday habits and preferences shape what matters behind the wheel.

3 generation, restyling · Sedan

2017–2020

S63 4.0 AT

Gasoline · Automatic · AWD

At a glance

View full specifications ↓

S63 4Matic

Report an inaccuracy ↗

Specifications

Jump to a section

Performance & powertrain

Top speed
?

The highest speed a vehicle can sustain under manufacturer test conditions. Some cars are electronically limited below their mechanical potential. Glossary entry

250 km/h
Engine type
Gasoline
Transmission
Automatic
Type of boost
?

A turbocharger or supercharger compresses the air entering the engine so a smaller engine can produce more power. Naturally aspirated engines draw air without a compressor. Glossary entry

Turbo
Type of drive
?

Which wheels receive power: front-wheel drive, rear-wheel drive or all-wheel drive. All-wheel drive can send power to every wheel for extra traction. Glossary entry

AWD
Bore and stroke
?

The diameter of a cylinder (bore) and the distance the piston travels inside it (stroke). Together they determine the displacement of the engine. Glossary entry

Not provided
Engine capacity
?

The total volume swept by all pistons inside the cylinders, usually stated in cubic centimetres or litres. Larger displacement often means more power but higher consumption. Glossary entry

3982 cm³
Engine location
Front, longitudinal
Number of gears
?

How many fixed forward ratios a gearbox offers. More gears can improve economy and refinement; continuously variable transmissions have no fixed steps. Glossary entry

9
Maximum power
?

A unit of engine or motor output. One metric horsepower is about 0.735 kilowatts. Peak power is normally reached at high engine speed. Glossary entry

612 hp
Maximum power, kw
?

A unit of engine or motor output. One metric horsepower is about 0.735 kilowatts. Peak power is normally reached at high engine speed. Glossary entry

450 kW
Compression ratio
?

The ratio between the largest and smallest volume of a cylinder as the piston moves. Higher ratios improve efficiency but may require higher-octane fuel. Glossary entry

8.6
Maximum power rpm
5500 – 6000 rpm
Maximum torque N⋅m
900 N⋅m
Maximum torque rpm
2750 – 4500 rpm
Acceleration to 100
?

The time a vehicle needs to reach 100 km/h from a standstill, a common shorthand for overall performance. Glossary entry

3.5 s
Engine power system
Direct injection (direct)
Number of cylinders
8
Valves per cylinder
?

The number of intake and exhaust valves in each cylinder. Four valves per cylinder is common and helps the engine breathe at higher speeds. Glossary entry

4
Cylinder arrangement
V-shaped
Maximum power ICE
Not provided
Maximum power ICE
Not provided

Energy & emissions

ECO class
Euro 6
Battery power
Not provided
Fuel grade
98
Mild Hybrid
?

A car with a small electric motor and battery that assist the combustion engine and recover braking energy but cannot drive on electricity alone. Glossary entry

Not provided
Battery type
Not provided
CO2 emissions
?

The amount of carbon dioxide released per kilometre under a standardised test. Lower figures usually go hand in hand with lower fuel consumption. Glossary entry

203 g/km
Full charge home
Not provided
Power consumption
Not provided
Fuel tank capacity
70 l
Full public charging time
Not provided
Driving range, maximum
?

The distance an electric or plug-in vehicle can travel on a full charge under a stated test cycle. Temperature, speed and load change the real result. Glossary entry

Not provided
Driving range, minimum
?

The distance an electric or plug-in vehicle can travel on a full charge under a stated test cycle. Temperature, speed and load change the real result. Glossary entry

Not provided
Fuel consumption city
11.7 l
Average consumption
8.9 l
Fuel consumption highway
7.3 l

Dimensions & body

Doors number
4
Number of seats
4–5
Width
1915 mm
Height
1499 mm
Length
5287 mm
Body type
Sedan
Wheelbase
?

The distance between the centres of the front and rear wheels. A longer wheelbase usually gives more cabin space and a calmer ride; a shorter one helps agility and parking. Glossary entry

3165 mm
U-turn diameter
Not provided
Depth of the ford to be crossed
Not provided
Body style
Sedan
Rear track width
?

The distance between the centres of the two wheels on the same axle. A wider track generally improves stability in corners. Glossary entry

1644 mm
Trunk volume max
Not provided
Trunk volume min
510 l
Front track width
?

The distance between the centres of the two wheels on the same axle. A wider track generally improves stability in corners. Glossary entry

1643 mm
Max weight
2745 kg
Curb weight
?

The weight of the vehicle with all standard equipment and fluids but without passengers or cargo. Glossary entry

2070 kg
Ground clearance, maximum
?

The gap between the lowest point of the underbody and the road. More clearance helps on rough roads and steep driveway ramps. Glossary entry

Not provided
Ground clearance, minimum
?

The gap between the lowest point of the underbody and the road. More clearance helps on rough roads and steep driveway ramps. Glossary entry

Not provided

Identity & configuration

Body code
W222
Vehicle class
S
Body designation
W222
Right-hand drive
No

Additional specifications

Stop
2020-08-31
Start
2017-01-01
Wheel size
Not provided
Rear brakes
Ventilated disc
Front brakes
Ventilated disc
Rear suspension
Independent, pneumatic
Front suspension
Independent, pneumatic

Trim equipment

Dimensions & body

Number of seats
4

Additional specifications

Driver Assistance Systems
Anti-lock braking system (ABS), Electronic stability program (ESP), Hill start assist (HAS), Emergency brake assist (BAS, EBD, EBA), Automatic slip regulation (ASR), Collision avoidance system, Lane departure warning system, Blind spot monitoring system, Traffic sign assist
Stop
2020-08-31
View
Automatic headlight range control, Adaptive front-lighting system, Fog lamp, Headlight washer system, Light sensor, Rain sensor, High beam assist, Rotary lights
Start
2017-01-01
Airbags
Driver's airbag, Passenger airbag, Side front airbags, Side rear airbags, Window airbags (curtains), Driver's knee airbag, Passenger's knee airbag, Between the front seats
Camera
360°
Isofix
Isofix for the back row
Material
Alloy
Comfort
Door closer, Cooled glove box, On-board computer, Digital instrument cluster, Engine Start Button, Power folding mirrors, Power mirrors, Multifunction steering wheel, Paddle Shifters, Electronic parking brake
Massage
Front seats with massage
Exterior
Metallic
Interior
Sunblinds in the rear doors, Sunshade on the rear window, Pedal pads, Decorative interior lighting, Kicking plates, Leather steering wheel, Sunroof, Panoramic roof, Front center armrest, Power window
Safety
Driver drowsiness detection, Tire pressure sensors
Headlights
LED headlights
Sound
Hi-Fi Burmester audio system
Diameter
R20 ″
Multimedia
AUX, USB, Bluetooth, 12V, Carplay, Android Auto, Wireless Charging for Smartphone, Navigation system, Voice control, Trunk speaker system, Hands-free system
Speakers
13 speakers
Cruise control
Cruise control
Parking assist system
Front parking sensors, Rear parking sensors, Automatic parking system
Power steering
Active power steering
Air conditioner
Four-zone climate control
Seat position memory
Front seats with memory function
Ceiling material
Black Cloth Ceiling
Electric heating
Front seats
Ventilation
Ventilated front seats
Steering wheel adjustment
Steering wheel height adjustment, Power adjustment, Steering wheel reach adjustment
Anti theft system
Keyless central locking, Immobilizer
Seat trim
Genuine leather seats
Power seat adjustment
Front seat adjustment, Rear seat adjustment
