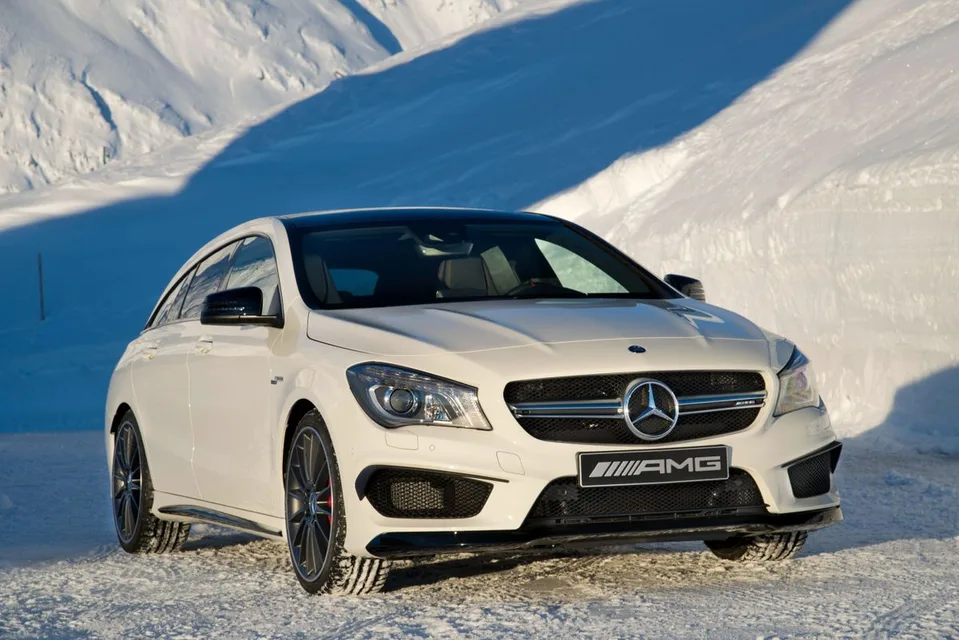

Mercedes CLA AMG CLA45 2.0 DCT CLA45 AMG 4Matic Special Series Equipment — First Generation

Planning a long drive in the Mercedes CLA AMG CLA45 2.0 DCT CLA45 AMG 4Matic Special Series begins well before departure, with the practical details that shape how the hours pass.

1 generation · Estate 5-door

2013–2016

CLA45 2.0 DCT

Gasoline · Robotic · AWD

At a glance

View full specifications ↓

CLA45 AMG 4Matic Special Series

Report an inaccuracy ↗

Specifications

Jump to a section

Performance & powertrain

Top speed
?

The highest speed a vehicle can sustain under manufacturer test conditions. Some cars are electronically limited below their mechanical potential. Glossary entry

250 km/h
Engine type
Gasoline
Transmission
Robotic
Type of boost
?

A turbocharger or supercharger compresses the air entering the engine so a smaller engine can produce more power. Naturally aspirated engines draw air without a compressor. Glossary entry

Turbo
Type of drive
?

Which wheels receive power: front-wheel drive, rear-wheel drive or all-wheel drive. All-wheel drive can send power to every wheel for extra traction. Glossary entry

AWD
Bore and stroke
?

The diameter of a cylinder (bore) and the distance the piston travels inside it (stroke). Together they determine the displacement of the engine. Glossary entry

83 × 92 mm
Engine capacity
?

The total volume swept by all pistons inside the cylinders, usually stated in cubic centimetres or litres. Larger displacement often means more power but higher consumption. Glossary entry

1991 cm³
Engine location
Front, transverse
Number of gears
?

How many fixed forward ratios a gearbox offers. More gears can improve economy and refinement; continuously variable transmissions have no fixed steps. Glossary entry

7
Maximum power
?

A unit of engine or motor output. One metric horsepower is about 0.735 kilowatts. Peak power is normally reached at high engine speed. Glossary entry

381 hp
Maximum power, kw
?

A unit of engine or motor output. One metric horsepower is about 0.735 kilowatts. Peak power is normally reached at high engine speed. Glossary entry

280 kW
Compression ratio
?

The ratio between the largest and smallest volume of a cylinder as the piston moves. Higher ratios improve efficiency but may require higher-octane fuel. Glossary entry

8.6
Maximum power rpm
6000 rpm
Maximum torque N⋅m
475 N⋅m
Maximum torque rpm
2250 – 5000 rpm
Acceleration to 100
?

The time a vehicle needs to reach 100 km/h from a standstill, a common shorthand for overall performance. Glossary entry

4.3 s
Engine power system
Direct injection (direct)
Number of cylinders
4
Valves per cylinder
?

The number of intake and exhaust valves in each cylinder. Four valves per cylinder is common and helps the engine breathe at higher speeds. Glossary entry

4
Cylinder arrangement
Inline
Maximum power ICE
Not provided
Maximum power ICE
Not provided

Energy & emissions

ECO class
Euro 6
Battery power
Not provided
Fuel grade
98
Mild Hybrid
?

A car with a small electric motor and battery that assist the combustion engine and recover braking energy but cannot drive on electricity alone. Glossary entry

Not provided
Battery type
Not provided
CO2 emissions
?

The amount of carbon dioxide released per kilometre under a standardised test. Lower figures usually go hand in hand with lower fuel consumption. Glossary entry

171 g/km
Full charge home
Not provided
Power consumption
Not provided
Fuel tank capacity
56 l
Full public charging time
Not provided
Driving range, maximum
?

The distance an electric or plug-in vehicle can travel on a full charge under a stated test cycle. Temperature, speed and load change the real result. Glossary entry

Not provided
Driving range, minimum
?

The distance an electric or plug-in vehicle can travel on a full charge under a stated test cycle. Temperature, speed and load change the real result. Glossary entry

Not provided
Fuel consumption city
9.6 l
Average consumption
7.3 l
Fuel consumption highway
6 l

Dimensions & body

Doors number
5
Number of seats
5
Width
1777 mm
Height
1417 mm
Length
4691 mm
Body type
Estate 5-door
Wheelbase
?

The distance between the centres of the front and rear wheels. A longer wheelbase usually gives more cabin space and a calmer ride; a shorter one helps agility and parking. Glossary entry

2699 mm
U-turn diameter
Not provided
Depth of the ford to be crossed
Not provided
Body style
Estate
Rear track width
?

The distance between the centres of the two wheels on the same axle. A wider track generally improves stability in corners. Glossary entry

1561 mm
Trunk volume max
1354 l
Trunk volume min
495 l
Front track width
?

The distance between the centres of the two wheels on the same axle. A wider track generally improves stability in corners. Glossary entry

1557 mm
Max weight
2120 kg
Curb weight
?

The weight of the vehicle with all standard equipment and fluids but without passengers or cargo. Glossary entry

1615 kg
Ground clearance, maximum
?

The gap between the lowest point of the underbody and the road. More clearance helps on rough roads and steep driveway ramps. Glossary entry

Not provided
Ground clearance, minimum
?

The gap between the lowest point of the underbody and the road. More clearance helps on rough roads and steep driveway ramps. Glossary entry

Not provided

Identity & configuration

Body code
X117
Vehicle class
C
Body designation
X117
Right-hand drive
No

Additional specifications

Stop
2016-12-31
Start
2013-01-01
Wheel size
Not provided
Rear brakes
Ventilated disc
Front brakes
Ventilated disc
Rear suspension
Independent, spring
Front suspension
Independent, spring

Trim equipment

Dimensions & body

Number of seats
5

Additional specifications

Driver Assistance Systems
Anti-lock braking system (ABS), Electronic stability program (ESP)
Stop
2016-12-31
View
Adaptive front-lighting system, Fog lamp, Headlight washer system, Light sensor, Rain sensor
Start
2013-01-01
Airbags
Driver's airbag, Passenger airbag, Side front airbags, Window airbags (curtains)
Isofix
Isofix for the back row
Comfort
Cigarette lighter and ashtray, Cooled glove box, On-board computer, Keyless entry system, Engine Start Button, Power folding mirrors, Power mirrors, Multifunction steering wheel, Paddle Shifters
Exterior
Metallic
Interior
Folding rear seat, Third rear headrest, Pedal pads, Kicking plates, Sports front seats, Leather steering wheel, Front center armrest, Power window
Safety
Tire pressure sensors
Headlights
Xenon / Bi-Xenon
Sound
Audio preparation, Audio system
Diameter
R18 ″
Multimedia
AUX, 12V, Navigation system
Cruise control
Cruise control
Parking assist system
Front parking sensors, Rear parking sensors
Power steering
Active power steering
Air conditioner
Air conditioner, Single-zone climate control
Seat position memory
Front seats with memory function
Electric heating
Front seats, Side mirrors
Steering wheel adjustment
Steering wheel height adjustment, Steering wheel reach adjustment
Anti theft system
Keyless central locking, Immobilizer
Seat trim
Genuine leather seats
Power seat adjustment
Front seat adjustment
