Maxus eDeliver 5 Specs, Electric Power & Dimensions (from 2024) — First Generation

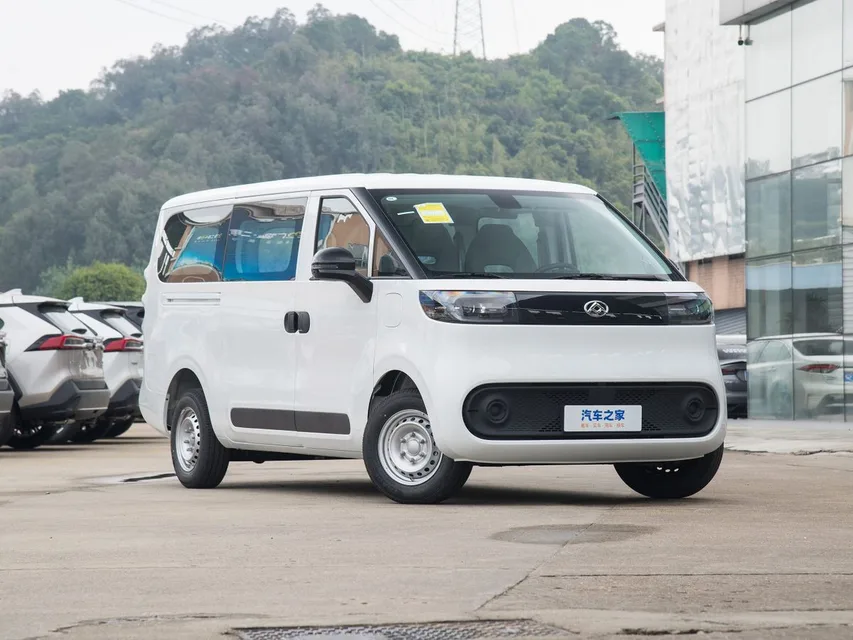

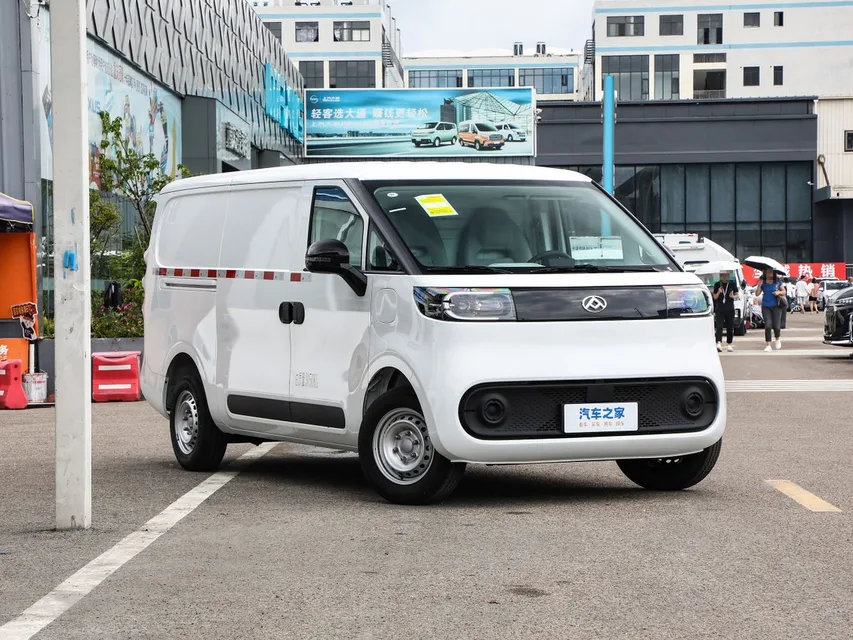

The first-generation Maxus eDeliver 5 is a fully electric light commercial vehicle offered in Minivan, Van and Van Long bodies, built around urban delivery work, easy loading and quiet, low-cost daily running.

← All Maxus models

3 modificationsAll supplied years

Maxus eDeliver 5 Electric Power and Drivetrain

Every version is electric, so Maxus eDeliver 5 horsepower comes from a motor driving the front wheels through an automatic transmission. The AT Minivan, AT Van and AT Van Long examples all share this front-wheel-drive layout, which gives immediate pull away from a standstill and no gear changes in stop-start traffic.

Minivan — Maxus eDeliver 5 Electric Power and Drivetrain

Minivan Maxus eDeliver 5 Electric Power and Drivetrain
ModificationEngine typeMaximum powerMaximum power, kwTransmissionType of drive
ATElectro163 hp119 kWAutomaticFWD

Van — Maxus eDeliver 5 Electric Power and Drivetrain

Van Maxus eDeliver 5 Electric Power and Drivetrain
ModificationEngine typeMaximum powerMaximum power, kwMaximum torque N⋅mTransmissionType of drive
ATElectro163 hp119 kW245 N⋅mAutomaticFWD

Van Long — Maxus eDeliver 5 Electric Power and Drivetrain

Van Long Maxus eDeliver 5 Electric Power and Drivetrain
ModificationEngine typeMaximum powerMaximum power, kwTransmissionType of drive
ATElectro163 hp119 kWAutomaticFWD

Maxus eDeliver 5 Dimensions

Minivan — Maxus eDeliver 5 Dimensions

Minivan Maxus eDeliver 5 Dimensions
ModificationLengthWidthHeightWheelbaseMax weight
AT4800 mm1870 mm1280 mm3100 mm3010 kg

Van — Maxus eDeliver 5 Dimensions

Van Maxus eDeliver 5 Dimensions
ModificationLengthWidthHeightWheelbase
AT4800 mm1870 mm1280 mm3100 mm

Van Long — Maxus eDeliver 5 Dimensions

Van Long Maxus eDeliver 5 Dimensions
ModificationLengthWidthHeightWheelbaseMax weight
AT4800 mm1870 mm1960 mm3100 mm3010 kg

Maxus eDeliver 5 Trims and Equipment

Maxus eDeliver 5 trim levels sit on top of the technical version rather than replacing it. The AT Van, for example, is offered in L1H1 and L1H2 configurations, so the drivetrain stays the same while roof height, load area and equipment differ to suit different kinds of cargo.

Maxus eDeliver 5 Trims and Equipment
ModificationBodyEquipment
ATVanL1H1
ATVanL1H2
ATVan LongL2H1

Maxus eDeliver 5 Battery, Range, Charging

Maxus eDeliver 5 battery capacity comes from a lithium-ion pack, used by the AT Minivan and AT Van alike and packaged under the floor so cargo space is not compromised. In practice most operators charge overnight from an AC wallbox and use DC fast charging to extend range mid-shift.

Minivan — Maxus eDeliver 5 Battery, Range, Charging

Minivan Maxus eDeliver 5 Battery, Range, Charging
ModificationBattery powerBattery typeDriving range, maximum
AT64 kWhLithium-ion batterie489 km

Van — Maxus eDeliver 5 Battery, Range, Charging

Van Maxus eDeliver 5 Battery, Range, Charging
ModificationBattery powerBattery typeDriving range, maximumFull charge homeFull public charging time
AT64 kWhLithium-ion batterie316 km450 min42 min

Van Long — Maxus eDeliver 5 Battery, Range, Charging

Van Long Maxus eDeliver 5 Battery, Range, Charging
ModificationBattery powerBattery typeDriving range, maximum
AT64 kWhLithium-ion batterie489 km
