Jaguar XJR 5.0 AT Specs — Fourth Generation Restyling
The Jaguar XJR 5.0 AT belongs to the fourth generation restyling of this saloon, and its automatic transmission illustrates how the pedal a driver presses and the speed that follows are only indirectly linked.
4 generation, restyling · Sedan

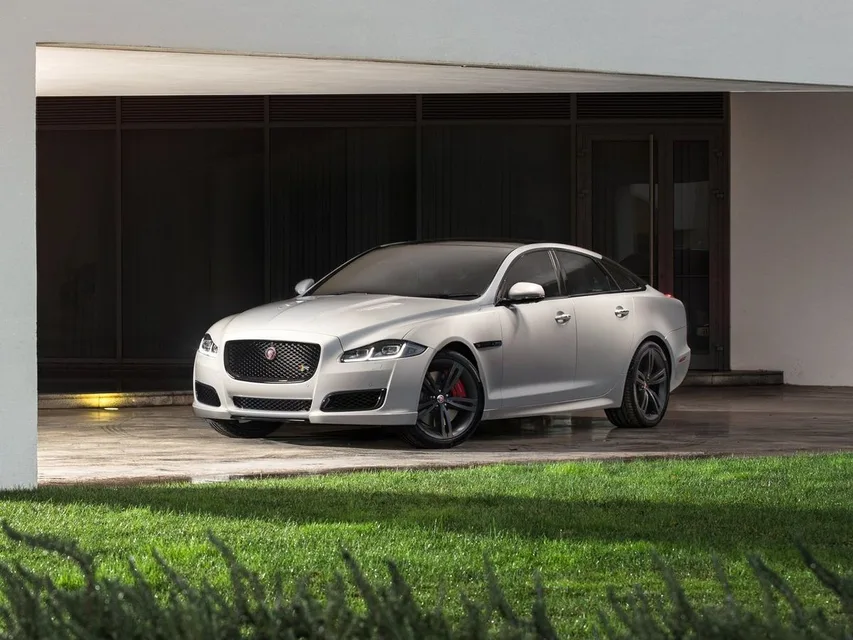

Generation photo. Individual trim appearance may differ.
The highest speed a vehicle can sustain under manufacturer test conditions. Some cars are electronically limited below their mechanical potential. Glossary entry
280 km/h
Engine type
Gasoline
Transmission
Automatic
Type of boost?
A turbocharger or supercharger compresses the air entering the engine so a smaller engine can produce more power. Naturally aspirated engines draw air without a compressor. Glossary entry
Turbo
Type of drive?
Which wheels receive power: front-wheel drive, rear-wheel drive or all-wheel drive. All-wheel drive can send power to every wheel for extra traction. Glossary entry
RWD
Bore and stroke?
The diameter of a cylinder (bore) and the distance the piston travels inside it (stroke). Together they determine the displacement of the engine. Glossary entry
92.5 × 93 mm
Engine capacity?
The total volume swept by all pistons inside the cylinders, usually stated in cubic centimetres or litres. Larger displacement often means more power but higher consumption. Glossary entry
5000 cm³
Engine location
Front, longitudinal
Number of gears?
How many fixed forward ratios a gearbox offers. More gears can improve economy and refinement; continuously variable transmissions have no fixed steps. Glossary entry
8
Maximum power?
A unit of engine or motor output. One metric horsepower is about 0.735 kilowatts. Peak power is normally reached at high engine speed. Glossary entry
550 hp
Maximum power, kw?
A unit of engine or motor output. One metric horsepower is about 0.735 kilowatts. Peak power is normally reached at high engine speed. Glossary entry
405 kW
Compression ratio?
The ratio between the largest and smallest volume of a cylinder as the piston moves. Higher ratios improve efficiency but may require higher-octane fuel. Glossary entry
9.5
Maximum power rpm
6000 – 6500 rpm
Maximum torque N⋅m
680 N⋅m
Maximum torque rpm
3500 – 4000 rpm
Acceleration to 100?
The time a vehicle needs to reach 100 km/h from a standstill, a common shorthand for overall performance. Glossary entry
4.6 s
Engine power system
Direct injection (direct)
Number of cylinders
8
Valves per cylinder?
The number of intake and exhaust valves in each cylinder. Four valves per cylinder is common and helps the engine breathe at higher speeds. Glossary entry
4
Cylinder arrangement
V-shaped
Maximum power ICE
Not provided
Maximum power ICE
Not provided
Energy & emissions
ECO class
Euro 6
Battery power
Not provided
Fuel grade
95
Mild Hybrid?
A car with a small electric motor and battery that assist the combustion engine and recover braking energy but cannot drive on electricity alone. Glossary entry
Not provided
Battery type
Not provided
CO2 emissions?
The amount of carbon dioxide released per kilometre under a standardised test. Lower figures usually go hand in hand with lower fuel consumption. Glossary entry
264 g/km
Full charge home
Not provided
Power consumption
Not provided
Fuel tank capacity
77 l
Full public charging time
Not provided
Driving range, maximum?
The distance an electric or plug-in vehicle can travel on a full charge under a stated test cycle. Temperature, speed and load change the real result. Glossary entry
Not provided
Driving range, minimum?
The distance an electric or plug-in vehicle can travel on a full charge under a stated test cycle. Temperature, speed and load change the real result. Glossary entry
Not provided
Fuel consumption city
16.2 l
Average consumption
11.1 l
Fuel consumption highway
8.2 l
Dimensions & body
Doors number
4
Number of seats
5
Width
1899 mm
Height
1460 mm
Length
5130 mm
Body type
Sedan
Wheelbase?
The distance between the centres of the front and rear wheels. A longer wheelbase usually gives more cabin space and a calmer ride; a shorter one helps agility and parking. Glossary entry
3032 mm
U-turn diameter
Not provided
Depth of the ford to be crossed
Not provided
Body style
Sedan
Rear track width?
The distance between the centres of the two wheels on the same axle. A wider track generally improves stability in corners. Glossary entry
1604 mm
Trunk volume max
Not provided
Trunk volume min
520 l
Front track width?
The distance between the centres of the two wheels on the same axle. A wider track generally improves stability in corners. Glossary entry
1626 mm
Max weight
2400 kg
Curb weight?
The weight of the vehicle with all standard equipment and fluids but without passengers or cargo. Glossary entry
1875 kg
Ground clearance, maximum?
The gap between the lowest point of the underbody and the road. More clearance helps on rough roads and steep driveway ramps. Glossary entry
Not provided
Ground clearance, minimum?
The gap between the lowest point of the underbody and the road. More clearance helps on rough roads and steep driveway ramps. Glossary entry
127 mm
Identity & configuration
Body code
X351
Vehicle class
F
Right-hand drive
No
Additional specifications
Stop
2019-12-31
Start
2015-08-01
Wheel size
Not provided
Rear brakes
Ventilated disc
Front brakes
Ventilated disc
Rear suspension
Independent, pneumatic
Front suspension
Independent, spring
No specifications match your search. Try another label or value, or clear the search.
Not provided means the source has no value. Zero remains zero. Units are shown as supplied; range test cycles are only stated when known.
Fuel cost calculator
Estimates use only the figures you enter, in your own currency. No live fuel prices or emissions data are used.
Fuel per trip
L
Trip cost
Monthly cost
Annual cost
Enable JavaScript to calculate estimates.
Engine and Transmission
The throttle pedal asks for engine torque, not for a road speed. An automatic transmission stands between the two, selecting a ratio that multiplies that torque, so identical pedal travel produces different acceleration depending on the gear engaged.
Drivetrain and Everyday Driving
Rear-wheel drive fixes which wheels are driven, not how much grip each one finds. Where one rear tyre sits on a wet patch or loose gravel, the surface under it limits the torque that can be transmitted before the wheel slips.
Body and Practicality
A sedan closes its luggage area under a separate lid behind the rear screen, so the roofline never extends over the load. Tall objects meet that boundary, while long flat items slide in more readily.
