Hyundai ix20 Specs, Engines & Dimensions (2015–2019)

Hyundai ix20 Engines and Transmissions

Each Hyundai ix20 engine here is a compact petrol unit driving the front wheels. The 1.4 MT suits budget-minded town driving, while the 1.6 MT adds easier motorway pace. Prefer the 1.6 AT if traffic makes an automatic transmission worth the modest fuel penalty.

Hatchback 5-door — Hyundai ix20 Engines and Transmissions

Hatchback 5-door Hyundai ix20 Engines and Transmissions
Modification	Engine type	Engine capacity	Maximum power	Maximum power, kw	Maximum torque N⋅m	Transmission	Type of drive
1.4 MT	Diesel	1396 cm³	77 hp	57 kW	240 N⋅m	Manual	FWD
1.4 MT	Diesel	1396 cm³	90 hp	66 kW	240 N⋅m	Manual	FWD
1.6 MT	Diesel	1582 cm³	115 hp	81 kW	260 N⋅m	Manual	FWD
1.6 MT	Diesel	1582 cm³	128 hp	94 kW	260 N⋅m	Manual	FWD
1.4 MT	Gasoline	1396 cm³	90 hp	66 kW	137 N⋅m	Manual	FWD
1.6 MT	Gasoline	1591 cm³	125 hp	92 kW	156 N⋅m	Manual	FWD
1.6 AT	Gasoline	1591 cm³	125 hp	92 kW	156 N⋅m	Automatic	FWD

Hyundai ix20 Dimensions

Hatchback 5-door — Hyundai ix20 Dimensions

Hatchback 5-door Hyundai ix20 Dimensions
Modification	Length	Width	Height	Wheelbase	Curb weight	Max weight	Ground clearance, minimum
1.4 MT	4115 mm	1765 mm	1600 mm	2615 mm	1270 kg	1710 kg	150 mm
1.4 MT	4115 mm	1765 mm	1600 mm	2615 mm	1270 kg	1710 kg	150 mm
1.6 MT	4115 mm	1765 mm	1600 mm	2615 mm	1281 kg	1710 kg	150 mm
1.6 MT	4115 mm	1765 mm	1600 mm	2615 mm	1281 kg	1710 kg	150 mm
1.4 MT	4115 mm	1765 mm	1600 mm	2615 mm	1178 kg	1710 kg	150 mm
1.6 MT	4115 mm	1765 mm	1600 mm	2615 mm	1180 kg	1710 kg	150 mm
1.6 AT	4115 mm	1765 mm	1600 mm	2615 mm	1222 kg	1710 kg	150 mm

Hyundai ix20 Cargo Space

Hatchback 5-door — Hyundai ix20 Cargo Space

Hatchback 5-door Hyundai ix20 Cargo Space
Modification	Trunk volume min	Trunk volume max
1.4 MT	440 l	1486 l
1.4 MT	440 l	1486 l
1.6 MT	440 l	1486 l
1.6 MT	440 l	1486 l
1.4 MT	440 l	1486 l
1.6 MT	440 l	1486 l
1.6 AT	440 l	1486 l

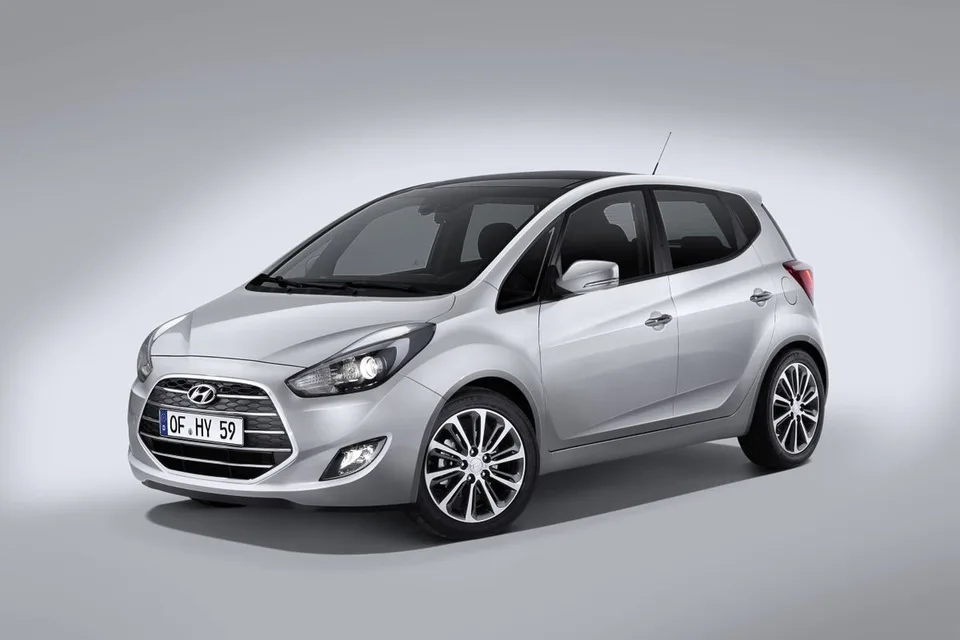

Hyundai ix20 Specs, Engines & Dimensions (2015–2019) — First Generation Restyling
