← Hyundai Creta generations

TRIM DETAILS

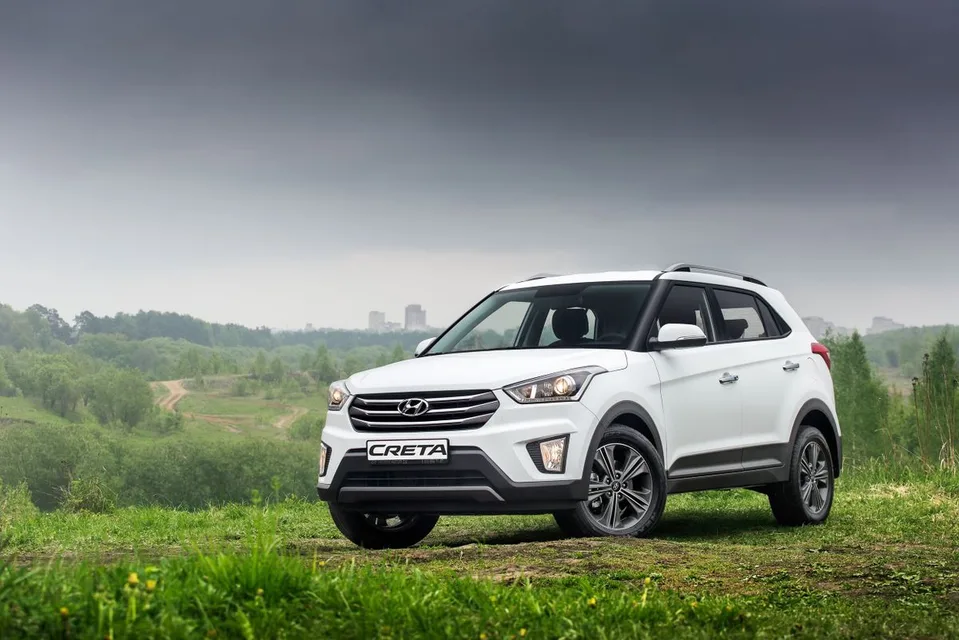

Hyundai Creta 1.6 MT Active Equipment — First Generation

City journeys make up most of the driving many owners do, and they shape what matters day to day. This overview looks at the Hyundai Creta 1.6 MT Active through that ordinary urban routine.

1 generation · SUV 5-doors

2015–2020

1.6 MT

Gasoline · Manual · FWD

At a glance

View full specifications ↓

Active

Report an inaccuracy ↗

Specifications

Jump to a section

Performance & powertrain

Top speed
?

The highest speed a vehicle can sustain under manufacturer test conditions. Some cars are electronically limited below their mechanical potential. Glossary entry

169 km/h
Engine type
Gasoline
Transmission
Manual
Type of boost
?

A turbocharger or supercharger compresses the air entering the engine so a smaller engine can produce more power. Naturally aspirated engines draw air without a compressor. Glossary entry

No
Type of drive
?

Which wheels receive power: front-wheel drive, rear-wheel drive or all-wheel drive. All-wheel drive can send power to every wheel for extra traction. Glossary entry

FWD
Bore and stroke
?

The diameter of a cylinder (bore) and the distance the piston travels inside it (stroke). Together they determine the displacement of the engine. Glossary entry

77 × 85.4 mm
Engine capacity
?

The total volume swept by all pistons inside the cylinders, usually stated in cubic centimetres or litres. Larger displacement often means more power but higher consumption. Glossary entry

1591 cm³
Engine location
Front, transverse
Number of gears
?

How many fixed forward ratios a gearbox offers. More gears can improve economy and refinement; continuously variable transmissions have no fixed steps. Glossary entry

6
Maximum power
?

A unit of engine or motor output. One metric horsepower is about 0.735 kilowatts. Peak power is normally reached at high engine speed. Glossary entry

123 hp
Maximum power, kw
?

A unit of engine or motor output. One metric horsepower is about 0.735 kilowatts. Peak power is normally reached at high engine speed. Glossary entry

92 kW
Compression ratio
?

The ratio between the largest and smallest volume of a cylinder as the piston moves. Higher ratios improve efficiency but may require higher-octane fuel. Glossary entry

10.5
Maximum power rpm
6400 rpm
Maximum torque N⋅m
151 N⋅m
Maximum torque rpm
4850 rpm
Acceleration to 100
?

The time a vehicle needs to reach 100 km/h from a standstill, a common shorthand for overall performance. Glossary entry

12.3 s
Engine power system
Distributed injection (multi-point)
Number of cylinders
4
Valves per cylinder
?

The number of intake and exhaust valves in each cylinder. Four valves per cylinder is common and helps the engine breathe at higher speeds. Glossary entry

4
Cylinder arrangement
Inline
Maximum power ICE
Not provided
Maximum power ICE
Not provided

Energy & emissions

ECO class
Euro 6
Battery power
Not provided
Fuel grade
95
Mild Hybrid
?

A car with a small electric motor and battery that assist the combustion engine and recover braking energy but cannot drive on electricity alone. Glossary entry

Not provided
Battery type
Not provided
CO2 emissions
?

The amount of carbon dioxide released per kilometre under a standardised test. Lower figures usually go hand in hand with lower fuel consumption. Glossary entry

161 g/km
Full charge home
Not provided
Power consumption
Not provided
Fuel tank capacity
55 l
Full public charging time
Not provided
Driving range, maximum
?

The distance an electric or plug-in vehicle can travel on a full charge under a stated test cycle. Temperature, speed and load change the real result. Glossary entry

Not provided
Driving range, minimum
?

The distance an electric or plug-in vehicle can travel on a full charge under a stated test cycle. Temperature, speed and load change the real result. Glossary entry

Not provided
Fuel consumption city
9 l
Average consumption
7 l
Fuel consumption highway
5.8 l

Dimensions & body

Doors number
5
Number of seats
5
Width
1780 mm
Height
1630 mm
Length
4270 mm
Body type
SUV 5-doors
Wheelbase
?

The distance between the centres of the front and rear wheels. A longer wheelbase usually gives more cabin space and a calmer ride; a shorter one helps agility and parking. Glossary entry

2590 mm
U-turn diameter
Not provided
Depth of the ford to be crossed
Not provided
Body style
SUV
Rear track width
?

The distance between the centres of the two wheels on the same axle. A wider track generally improves stability in corners. Glossary entry

1570 mm
Trunk volume max
Not provided
Trunk volume min
402 l
Front track width
?

The distance between the centres of the two wheels on the same axle. A wider track generally improves stability in corners. Glossary entry

1557 mm
Max weight
Not provided
Curb weight
?

The weight of the vehicle with all standard equipment and fluids but without passengers or cargo. Glossary entry

Not provided
Ground clearance, maximum
?

The gap between the lowest point of the underbody and the road. More clearance helps on rough roads and steep driveway ramps. Glossary entry

Not provided
Ground clearance, minimum
?

The gap between the lowest point of the underbody and the road. More clearance helps on rough roads and steep driveway ramps. Glossary entry

190 mm

Identity & configuration

Body code
GS
Vehicle class
B
Body designation
GS
Right-hand drive
No

Additional specifications

Stop
2020-08-31
Start
2015-06-01
Wheel size
Not provided
Rear brakes
Disc
Front brakes
Ventilated disc
Rear suspension
Semi-independent, springorts hélicoïdaux, sem
Front suspension
Independent, spring

Trim equipment

Dimensions & body

Number of seats
5

Additional specifications

Driver Assistance Systems
Anti-lock braking system (ABS), Electronic stability program (ESP), Hill start assist (HAS), Emergency brake assist (BAS, EBD, EBA), Automatic slip regulation (ASR), Hill descent control (HDC)
Stop
2020-08-31
Suspension and spare wheel
Full size spare tire
Start
2015-06-01
Airbags
Driver's airbag, Passenger airbag
Isofix
Isofix for the back row
Material
Steel
Comfort
On-board computer, Power mirrors, Multifunction steering wheel
Interior
Folding rear seat, Kicking plates, Front center armrest, Power window
Safety
Tire pressure sensors
Sound
Audio preparation
Multimedia
AUX, USB, Bluetooth, 12V
Power steering
Power steering
Air conditioner
Air conditioner
Electric heating
Front seats, Side mirrors
Steering wheel adjustment
Steering wheel height adjustment
Anti theft system
Keyless central locking, Immobilizer
Seat trim
Fabric seats
Seat adjustment
Driver's seat adjustment

Not provided means the source has no value. Zero remains zero. Units are shown as supplied; range test cycles are only stated when known.

Fuel cost calculator

Estimates use only the figures you enter, in your own currency. No live fuel prices or emissions data are used.

Units

Enable JavaScript to calculate estimates.

Comfort and Convenience

Seating position is a personal preference: some drivers settle low and close to the wheel, others sit taller for a broader view ahead. Body proportions and long-held habits explain why no single setting suits everyone.

Safety and Driver Assistance

Knowing where the wipers, lights and demister sit before setting off means less searching when conditions change mid-journey. A few minutes spent parked, identifying each control by position, turns them into something recalled rather than hunted for.

Multimedia and Connectivity

Battery level is the usual urban worry, since short hops with navigation running drain a phone quickly. Where a charging point is available, keeping a suitable cable in the car matters more than which socket type it uses.
