Honda N-BOX Specs, Engines & Dimensions (from 2017)

Honda N-BOX Engines and Transmissions

The Honda N-BOX engine in this generation is gasoline, so you get city-friendly power rather than highway muscle. Pair it with the transmission and drivetrain and the compact powertrain is easy in traffic and parking. Treat the setups here as examples, not the full Mini 5-doors lineup.

Mini 5-doors — Honda N-BOX Engines and Transmissions

Mini 5-doors Honda N-BOX Engines and Transmissions
Modification	Engine type	Engine capacity	Maximum power	Maximum power, kw	Maximum torque N⋅m	Transmission	Type of drive
0.7 CVT	Gasoline	658 cm³	58 hp	43 kW	65 N⋅m	Variable	FWD
0.7 CVT	Gasoline	658 cm³	58 hp	43 kW	65 N⋅m	Variable	AWD
0.7 CVT	Gasoline	658 cm³	64 hp	47 kW	104 N⋅m	Variable	FWD
0.7 CVT	Gasoline	658 cm³	64 hp	47 kW	104 N⋅m	Variable	AWD

Honda N-BOX Dimensions

Mini 5-doors — Honda N-BOX Dimensions

Mini 5-doors Honda N-BOX Dimensions
Modification	Length	Width	Height	Wheelbase	Curb weight	Ground clearance, minimum
0.7 CVT	3395 mm	1475 mm	1790 mm	2520 mm	890 kg	145 mm
0.7 CVT	3395 mm	1475 mm	1790 mm	2520 mm	950 kg	145 mm
0.7 CVT	3395 mm	1475 mm	1790 mm	2520 mm	910 kg	145 mm
0.7 CVT	3395 mm	1475 mm	1790 mm	2520 mm	980 kg	145 mm

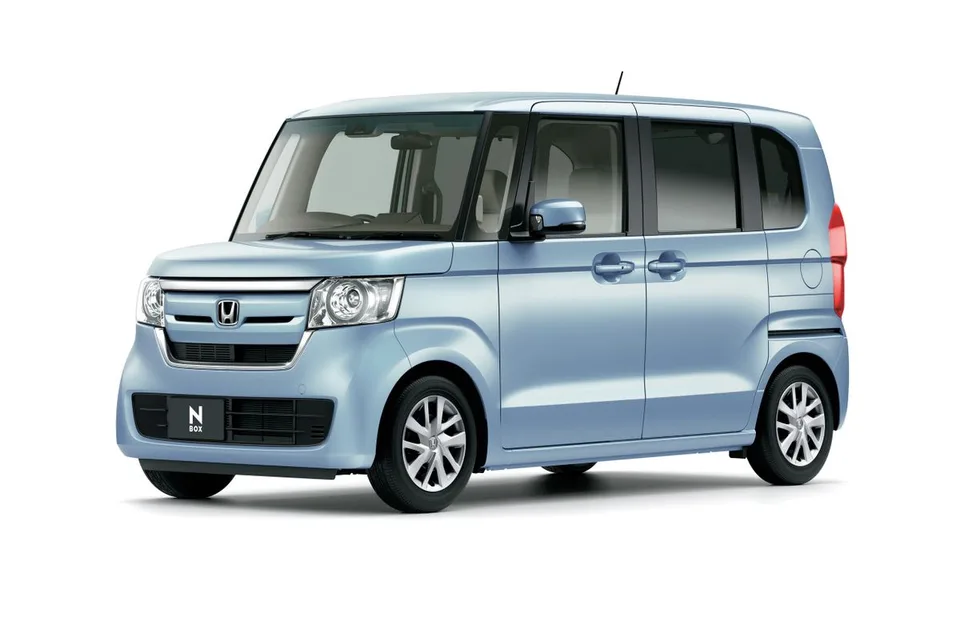

Honda N-BOX Specs, Engines & Dimensions (from 2017) — Second Generation

Honda N-BOX

Honda N-BOX

Honda N-BOX

Honda N-BOX

Honda N-BOX Engines and Transmissions

Mini 5-doors — Honda N-BOX Engines and Transmissions

Honda N-BOX Dimensions

Mini 5-doors — Honda N-BOX Dimensions
