Catalog / Ford / Escort / 5 generation
Ford Escort Engines and Transmissions
Most versions pair a modest Ford Escort engine with a manual gearbox driving the front wheels, a simple and economical layout. Smaller petrol units such as the 1.3 MT and 1.4 MT suit town use, while the 1.8 MT diesel favours steady, frugal motorway running.
Hatchback 5-door — Ford Escort Engines and Transmissions
Hatchback 5-door Ford Escort Engines and Transmissions Modification Engine type Engine capacity Maximum power Maximum power, kw Maximum torque N⋅m Transmission Type of drive 1.3 MT Gasoline 1299 cm³ 60 hp 44 kW 101 N⋅m Manual FWD 1.4 MT Gasoline 1392 cm³ 71 hp 52 kW 103 N⋅m Manual FWD 1.6 MT Gasoline 1597 cm³ 90 hp 66 kW 134 N⋅m Manual FWD 1.6 MT Gasoline 1597 cm³ 105 hp 77 kW 138 N⋅m Manual FWD 1.8 MT Diesel 1753 cm³ 60 hp 44 kW 110 N⋅m Manual FWD
Hatchback 3-door — Ford Escort Engines and Transmissions
Hatchback 3-door Ford Escort Engines and Transmissions Modification Engine type Engine capacity Maximum power Maximum power, kw Maximum torque N⋅m Transmission Type of drive 1.4 MT Gasoline 1392 cm³ 71 hp 52 kW 103 N⋅m Manual FWD 1.6 MT Gasoline 1597 cm³ 105 hp 77 kW 138 N⋅m Manual FWD 1.8 MT Gasoline 1796 cm³ 105 hp 77 kW 153 N⋅m Manual FWD 1.8 MT Gasoline 1796 cm³ 130 hp 96 kW 162 N⋅m Manual FWD 2.0 MT Gasoline 1998 cm³ 150 hp 110 kW 190 N⋅m Manual FWD

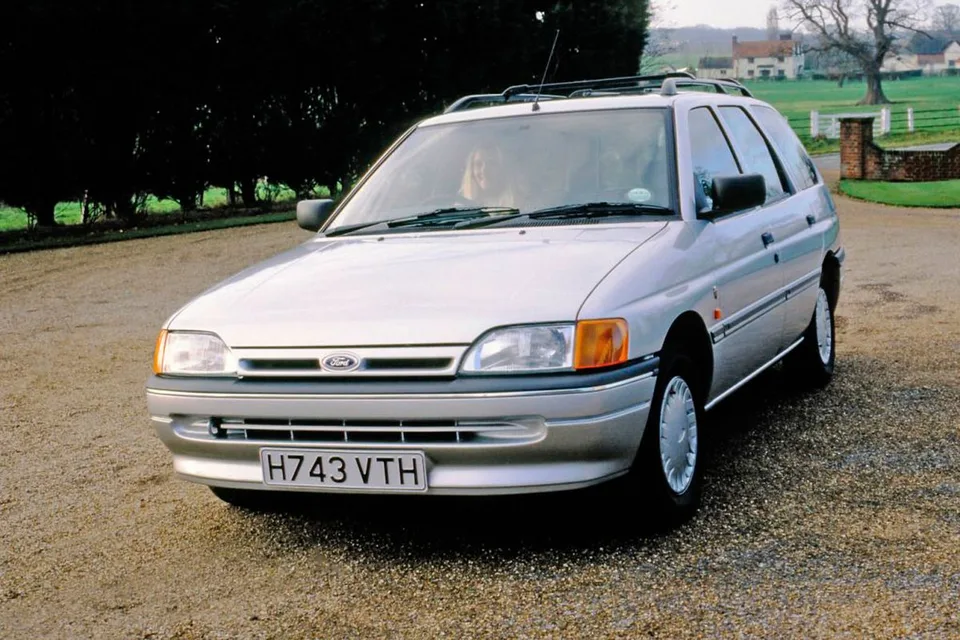

Estate 5-door — Ford Escort Engines and Transmissions
Estate 5-door Ford Escort Engines and Transmissions Modification Engine type Engine capacity Maximum power Maximum power, kw Maximum torque N⋅m Transmission Type of drive 1.3 MT Gasoline 1299 cm³ 60 hp 44 kW 101 N⋅m Manual FWD 1.4 MT Gasoline 1392 cm³ 71 hp 52 kW 103 N⋅m Manual FWD 1.6 MT Gasoline 1597 cm³ 90 hp 66 kW 133 N⋅m Manual FWD 1.6 MT Gasoline 1597 cm³ 105 hp 77 kW 138 N⋅m Manual FWD 1.8 MT Gasoline 1796 cm³ 105 hp 77 kW 153 N⋅m Manual FWD 1.8 MT Diesel 1753 cm³ 60 hp 44 kW 110 N⋅m Manual FWD

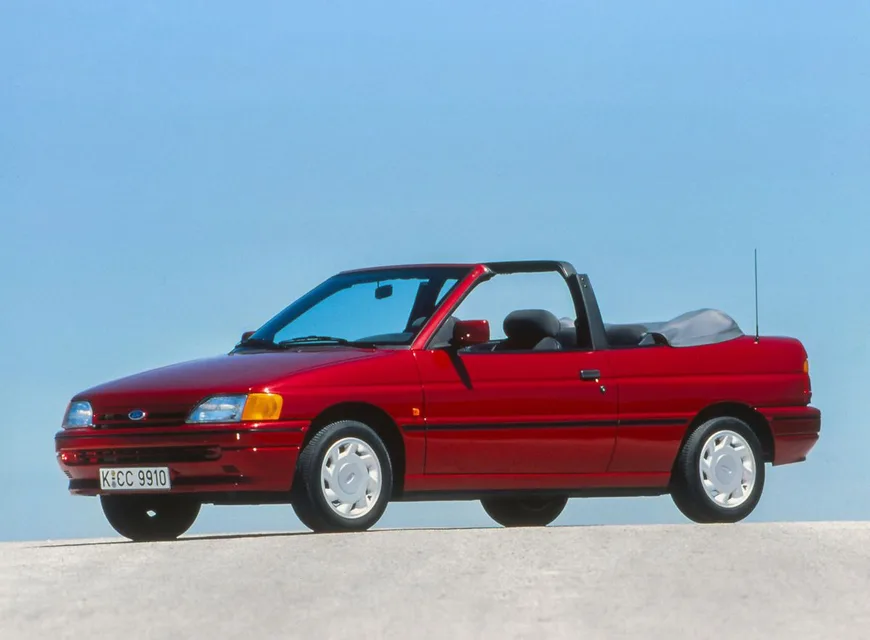

Cabrio — Ford Escort Engines and Transmissions
Cabrio Ford Escort Engines and Transmissions Modification Engine type Engine capacity Maximum power Maximum power, kw Maximum torque N⋅m Transmission Type of drive 1.4 MT Gasoline 1392 cm³ 71 hp 52 kW 103 N⋅m Manual FWD 1.6 MT Gasoline 1597 cm³ 105 hp 77 kW 138 N⋅m Manual FWD 1.8 MT Gasoline 1796 cm³ 105 hp 77 kW 153 N⋅m Manual FWD 1.8 MT Gasoline 1796 cm³ 130 hp 96 kW 162 N⋅m Manual FWD
Ford Escort Dimensions
Hatchback 5-door — Ford Escort Dimensions
Hatchback 5-door Ford Escort Dimensions Modification Length Width Height Wheelbase Curb weight Ground clearance, minimum 1.3 MT 4229 mm 1679 mm 1349 mm 2520 mm 920 kg 130 mm 1.4 MT 4229 mm 1679 mm 1349 mm 2520 mm 950 kg 130 mm 1.6 MT 4229 mm 1679 mm 1349 mm 2520 mm 980 kg 130 mm 1.6 MT 4229 mm 1679 mm 1349 mm 2520 mm 1015 kg 130 mm 1.8 MT 4229 mm 1679 mm 1349 mm 2520 mm 1011 kg 130 mm
Hatchback 3-door — Ford Escort Dimensions
Hatchback 3-door Ford Escort Dimensions Modification Length Width Height Wheelbase Curb weight Max weight Ground clearance, minimum 1.4 MT 4229 mm 1679 mm 1349 mm 2520 mm 940 kg 1400 kg 130 mm 1.6 MT 4229 mm 1679 mm 1349 mm 2520 mm 980 kg 1425 kg 130 mm 1.8 MT 4229 mm 1679 mm 1349 mm 2520 mm 1033 kg Not provided 130 mm 1.8 MT 4229 mm 1679 mm 1349 mm 2520 mm Not provided Not provided 130 mm 2.0 MT 4229 mm 1679 mm 1349 mm 2520 mm 1096 kg Not provided 130 mm
Estate 5-door — Ford Escort Dimensions
Estate 5-door Ford Escort Dimensions Modification Length Width Height Wheelbase Curb weight Max weight Ground clearance, minimum 1.3 MT 4270 mm 1679 mm 1341 mm 2525 mm Not provided Not provided 130 mm 1.4 MT 4270 mm 1679 mm 1341 mm 2525 mm Not provided Not provided 130 mm 1.6 MT 4270 mm 1679 mm 1341 mm 2525 mm Not provided Not provided 130 mm 1.6 MT 4270 mm 1679 mm 1341 mm 2525 mm Not provided Not provided 130 mm 1.8 MT 4270 mm 1679 mm 1341 mm 2525 mm Not provided Not provided 130 mm 1.8 MT 4270 mm 1679 mm 1341 mm 2525 mm 1050 kg 1550 kg 130 mm
Cabrio — Ford Escort Dimensions
Cabrio Ford Escort Dimensions Modification Length Width Height Wheelbase Ground clearance, minimum 1.4 MT 4220 mm 1680 mm 1350 mm 2525 mm 130 mm 1.6 MT 4220 mm 1680 mm 1350 mm 2525 mm 130 mm 1.8 MT 4220 mm 1680 mm 1350 mm 2525 mm 130 mm 1.8 MT 4220 mm 1680 mm 1350 mm 2525 mm 130 mm
Ford Escort Cargo Space
Hatchback 5-door — Ford Escort Cargo Space
Hatchback 3-door — Ford Escort Cargo Space
