Caterham CSR Specs, Engines & Dimensions (from 2005)

Caterham CSR Engines and Transmissions

Every Caterham CSR uses a gasoline engine, chosen for instant response and strong performance. The powertrain is designed to make the most of the car's light weight, giving lively acceleration without relying on huge displacement. A manual transmission is standard, keeping you closely involved with the drivetrain and the road.

Roadster — Caterham CSR Engines and Transmissions

Roadster Caterham CSR Engines and Transmissions
Modification	Engine type	Engine capacity	Maximum power	Maximum power, kw	Maximum torque N⋅m	Transmission	Type of drive
2.3 MT	Gasoline	2261 cm³	200 hp	147 kW	221 N⋅m	Manual	RWD
2.3 MT	Gasoline	2261 cm³	260 hp	191 kW	271 N⋅m	Manual	RWD

Caterham CSR Dimensions

Roadster — Caterham CSR Dimensions

Roadster Caterham CSR Dimensions
Modification	Length	Width	Height	Wheelbase	Curb weight	Max weight	Ground clearance, minimum
2.3 MT	3300 mm	1505 mm	1140 mm	2315 mm	565 kg	875 kg	100 mm
2.3 MT	3300 mm	1505 mm	1140 mm	2315 mm	515 kg	Not provided	100 mm

Caterham CSR Specs, Engines & Dimensions (from 2005) — First Generation

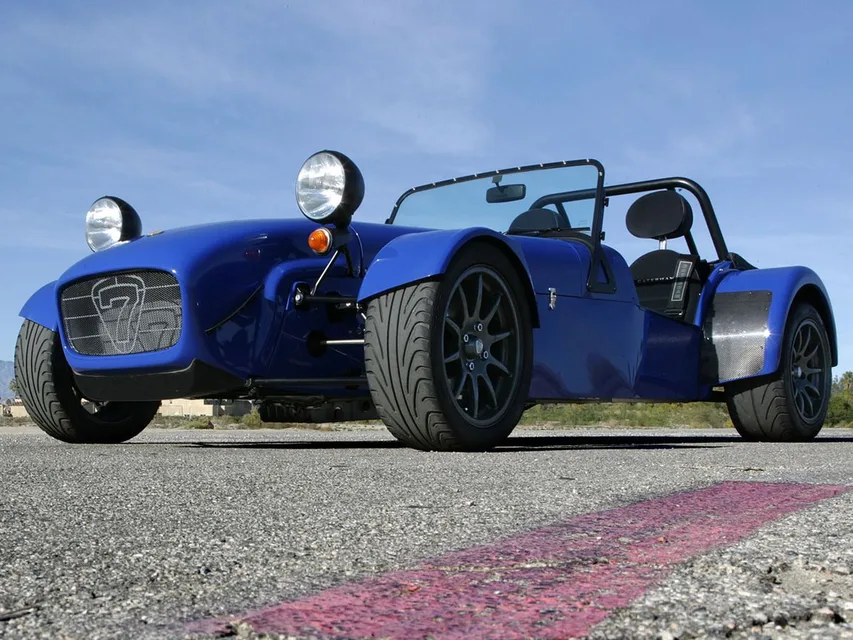

Caterham CSR
