Why Do Some Cars Have a Transfer Case?
Drivers who ask why do some cars have a transfer case usually notice an extra gearbox behind the transmission on a truck or SUV. Its job is simple to state: it takes engine torque that has already passed through the transmission and splits it between the front and rear axles, so all four wheels can help move the vehicle when traction is limited.
Transfer path
In a typical rear-drive-based four-wheel-drive layout, torque leaves the transmission and enters the transfer case, which sits just behind it. Inside, a chain or a set of gears carries part of that torque sideways to a second output. One output feeds the rear driveshaft and rear differential, while the other feeds a shorter front driveshaft running forward to the front differential. Without this unit, the transmission would have only one output and only one axle could be driven.

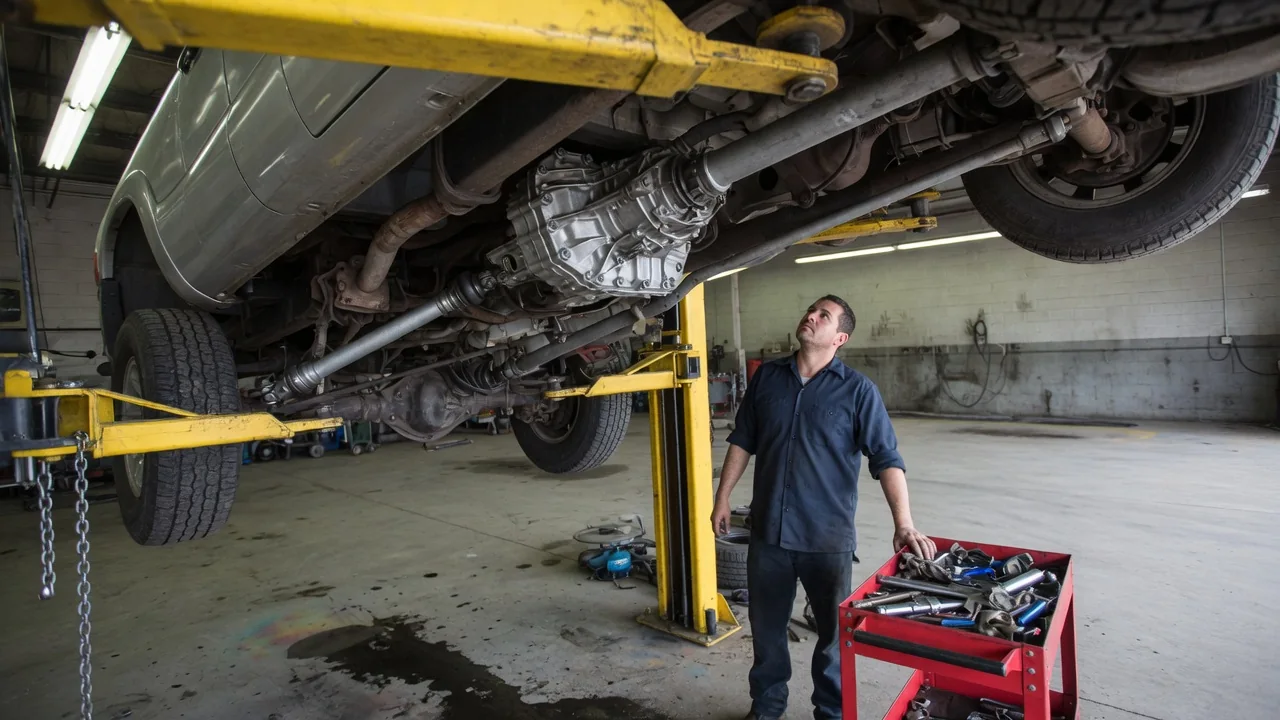

Looking under a body-on-frame pickup, you can often see the arrangement directly: a compact housing at the back of the transmission with one shaft heading rearward and another angling toward the front axle. Vehicles built on front-drive platforms handle the same task differently, commonly using a smaller power transfer unit attached to the transaxle to send torque rearward. The naming and hardware vary by manufacturer, so the layout on one vehicle should not be assumed to match another.
Range selection basics
Many transfer cases do more than split torque; they also offer a choice of ranges. High range passes transmission output along at its normal ratio and suits ordinary road speeds. Low range routes torque through an additional reduction gearset, multiplying it and slowing wheel speed for a given engine speed. That reduction is what lets a loaded truck creep up a steep trail, ease down a rocky descent with engine braking, or pull a boat up a slippery ramp without straining the drivetrain.
The driver selects these modes through a floor lever, a rotary dial, or dashboard buttons, depending on the vehicle. Common positions include two-wheel drive, four-wheel drive high, and four-wheel drive low, and some systems add an automatic setting that engages the front axle as needed. Shifting into low range often requires the vehicle to be stopped or nearly stopped with the transmission in neutral, but the correct procedure is specific to each model and is described in the owner's manual.
Usage limits
The most important limit concerns part-time systems, which lock the front and rear driveshafts together so they turn at the same speed. In a turn, the front wheels travel a longer path than the rears and need to rotate faster. On loose gravel, snow, or mud, the tires slip slightly and relieve that difference. On dry pavement they grip instead, and the stress winds up in the drivetrain, a condition often called binding or driveline wind-up.
Full-time and automatic systems avoid this problem by placing a center differential or a clutch pack inside the transfer case, allowing the two axles to turn at different speeds. Those designs can generally stay engaged on any surface, although some include a lock setting that carries the same pavement restriction as a part-time system. Low range brings its own limit, since it is intended for slow, deliberate driving rather than road speeds. Which category a given vehicle falls into must be confirmed from its own documentation.
Everyday Use and Observations
In daily driving, a healthy transfer case goes largely unnoticed. Engaging four-wheel drive usually brings an indicator light on the instrument cluster and sometimes a faint clunk or whir as an actuator moves or the front axle connects. On a slick road, the difference shows up as steadier pull-away from a stop, because torque is shared among four tire contact patches rather than two. Steering may feel slightly heavier with a part-time system engaged, especially in tight turns.
Some observations deserve attention. A part-time system left engaged on dry pavement may produce hopping or scrubbing tires in parking-lot turns and a lever that resists moving back to two-wheel drive. Grinding during a range change, a flashing four-wheel-drive indicator, fluid spots beneath the middle of the vehicle, or a whine that changes with road speed all suggest something worth checking. Mismatched tire sizes or uneven tread wear can also load the unit, since the axles are then forced to turn at different rates.
Limits and Next Steps
A transfer case distributes torque between axles, but it cannot create traction that the tires do not have. With open differentials at each axle, torque can still escape through one spinning wheel at the front and one at the rear, which is why some vehicles add locking differentials or brake-based traction control. Four-wheel drive also does nothing to shorten braking distances or raise cornering grip on ice, so careful speed and suitable tires remain the larger factors in winter safety.
For owners, the sensible next steps are straightforward. Read the manual to learn which type of system the vehicle has, when each mode may be used, and what fluid and service schedule the manufacturer specifies, since these differ widely. Engaging the system periodically on a suitable loose surface helps confirm it still works before it is needed. If a warning light or stored fault code appears, treat it as a starting point for diagnosis by a qualified technician rather than proof that a particular component has failed.
