Ram 2500 and 3500 Differential Fluid: Capacity, Type, and Change Interval
Fresh differential fluid protects the gears and bearings inside your Ram 2500 or 3500 axle, especially when frequent trailer towing or heavy loads generate extra heat and shear. Before opening the fill plug or dropping the cover, you need to confirm two things: exactly which AAM axle your truck left the factory with, and what capacity, fluid type, and change interval the factory documentation calls for. This guide connects model-year questions—from a 2012 Ram 3500 rear end to a 2021 Ram 2500—with the service details that keep both 4WD and 2WD axles reliable.
Identify the Axle Before Choosing Differential Fluid
Model year and drivetrain alone do not define the service fill. Ram 2500 and 3500 trucks have shipped with several AAM axle families, and a rear axle identification tag or stamped code on the housing tells you which one is installed. This matters because a 10.5-inch axle may call for a straightforward fill to the plug, while a 11.5-inch or 12.0-inch axle can have a different oil level or a cover design that changes how much fluid leaves the bottle. Always confirm the specific axle before trusting a generic capacity listed for the model name.
If the axle has been swapped or fitted with an aftermarket differential cover, the original build data may be misleading. Raised covers and extra oil capacity alter the volume needed, and a recycled housing may not carry its donor truck's spec. The vehicle's owner's manual provides the base service requirement, but the most reliable step is to locate the axle identification tag, compare it to the service information for that year and model, and use the documented fill-level procedure rather than assuming every axle fills to the bottom of the hole.
Rear Differential Capacity by Model Year and Axle
Verified rear differential capacities for these trucks are axle-specific. For example, a 2015 or 2017 Ram 2500 with a 10.5-inch AAM rear axle typically accepts about 3.0 to 3.4 quarts during a routine drain and refill, while many 2018, 2020, and 2021 2500s with a 11.5-inch AAM axle list a service fill near 4.0 to 4.5 quarts. A 2012 Ram 3500 often uses a 11.5-inch AAM axle with a similar range, but dual-rear-wheel and cab-and-chassis configurations can shift the number, so the axle code remains the final authority.
No single capacity safely covers every Ram 2500 or 3500. The routine service fill is the amount added until the lubricant reaches the specified level—often the fill opening, but not always—and it is consistently less than the dry assembly capacity used after a complete teardown. Because residual oil clings to ring gear and axle tubes, expect to add slightly less than the published dry fill. Adding fluid until it just runs from the fill hole can overfill some AAM axles, so follow the factory procedure, which may call for a measured fill or a level below the plug. US quart figures can be converted to liters for aftermarket cover documentation.
Front Differential Capacity on Four-Wheel-Drive Trucks
Front differential service applies only to four-wheel-drive Ram trucks; a two-wheel-drive model has no driven front axle to maintain. For a 4WD 2500 or 3500, the front axle is a separate AAM assembly with a smaller oil volume than the rear. Its capacity is tied to the same model-year and axle identification process—not to the rear specification—and it must be checked while the vehicle sits level. The front differential lubricant requirement is also often a different viscosity or additive package than what the heavy rear axle uses.
Do not confuse the front differential with the transfer case. The transfer case is a distinct component behind the transmission with its own fluid, fill procedure, and capacity, even though both may share a similar gear oil appearance. During service, the front axle's fill plug usually faces the rear of the housing and may be less accessible than the rear cover. The correct service fill is reached by adding fluid to the documented level—typically the fill opening—while the truck is level, then waiting for the level to stabilize before reinstalling the plug.
Choose the Specified Gear Oil and Additive
The required gear oil is printed in the owner's manual and confirmed by the axle identification. Common AAM rear axles in these trucks specify a synthetic 75W-90 or 75W-140 gear oil meeting a Chrysler or Mopar material standard; the viscosity depends on axle size, towing frequency, and year. A 2014 Ram 2500 may call for 75W-90 in a light-service rear axle, while a 2016 or 2018 model equipped for heavy towing with a larger AAM rear end may require 75W-140. Always match the printed spec rather than substituting based on temperature alone.
A differential cover marked limited-slip or a window sticker mentioning anti-spin does not automatically mean you must pour in a separate friction-modifier tube. Some AAM axles use a gear oil already formulated with the correct limited-slip additive, while others require a supplemental bottle. The gear oil label tells you whether it meets the manufacturer specification and often states 'contains limited-slip additive' when appropriate. Check the axle service information; adding extra modifier where none is specified can reduce the oil's ability to protect the gears.
Find the Applicable Change Interval for Towing and Daily Use
The maintenance schedule separates a visual inspection from a fluid replacement. During a normal interval, you may only need to check for leaks and confirm the oil level, while replacement is listed less frequently. For many Ram 2500 and 3500 model years, the documented interval shortens under severe service—frequent trailer towing, sustained high-speed loaded operation, commercial use, or repeated short trips with a heavy payload. Towing schedules can move from tens of thousands of miles down to roughly half, but the exact mileage belongs to your truck's year and axle.
If the service history is unknown or the axle has been submerged, do not simply extend the old fluid. Water contamination turns gear oil milky and accelerates wear, so the axle deserves an immediate level check and likely a drain, inspection, and refill. After any differential fluid change, record the date, odometer reading, axle identification, lubricant specification and quantity, and whether the truck had been towing. That written record lets you apply the correct interval later—and protects the diagnosis if a future bearing noise appears.
What a Differential Fluid Change Includes

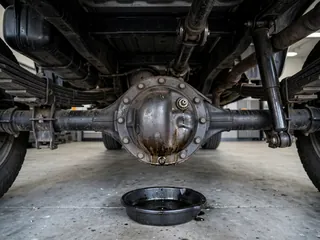

A complete differential fluid change begins by confirming the axle and specification, then removing the fill plug before the drain to avoid a sealed vacuum, draining the old oil, and inspecting the removed cover for metal debris or water. The sealing surface is cleaned, a fresh gasket or proper sealant is applied, and the cover is tightened to the axle's specified fastener torque using a crisscross pattern. Refill to the documented level, then recheck for leaks around the cover and plugs after a short test.
Not every axle has a drain plug; many require removing the differential cover, so access, clean sealing, and torque are critical. You can reasonably watch for driveway oil spots, a new howl or rumble from the axle, or a shudder during slow turns, but those symptoms alone cannot identify whether a bearing, gear set, or seal has failed. A fluid change may fix a low-level groan, but if you find heavy metal flakes, milky oil, or persistent noise, the axle needs professional diagnosis. Always collect used oil in a clean pan and deliver it to a recycling center, and if safe lifting or the required procedure is out of reach, have a qualified shop perform the service.
