Ford 3.5 V6 and EcoBoost Timing Chain: Marks, Kits, and Replacement Cost
Ford 3.5 Duratec and EcoBoost engines rely on a timing chain to keep camshaft and crankshaft correlation, yet the hardware is not the same on every 3.5. A useful chain diagram for Ford 3.5 timing marks, a 3.5 EcoBoost timing chain kit, or an Explorer replacement-cost discussion all start with engine identification. Model year, vehicle application, and naturally aspirated versus EcoBoost configuration decide which illustration, parts list, and labor scope apply.
Identify the Ford 3.5 Engine Before Choosing a Diagram or Kit
Selecting a Ford 3.5 timing chain diagram or kit without first confirming the engine is a common mismatch. Ford used 3.5 Duratec naturally aspirated and 3.5 EcoBoost configurations in different vehicles and years, and those families do not share identical timing hardware. Camshaft sprockets, the crankshaft sprocket, chain guides, hydraulic tensioners, and camshaft phasers can differ by application. Treating every 3.5 as interchangeable timing architecture leads to the wrong illustration, the wrong kit, and a repair plan that does not match the engine in the vehicle.
A shop or parts supplier should use VIN-based application information, underhood labels, and catalog engine identification rather than a model name alone. The VIN points to the build record that distinguishes a Duratec 3.5 from a 3.5 EcoBoost timing chain layout and the related parts catalog entries. That confirmation also matters for Explorer searches, because an Explorer can carry more than one 3.5 family depending on year and option. Until the engine is identified, timing marks, kit contents, and replacement labor cannot be discussed as if they apply to this vehicle.
Read Ford 3.5 Timing Chain Diagrams and Marks Safely

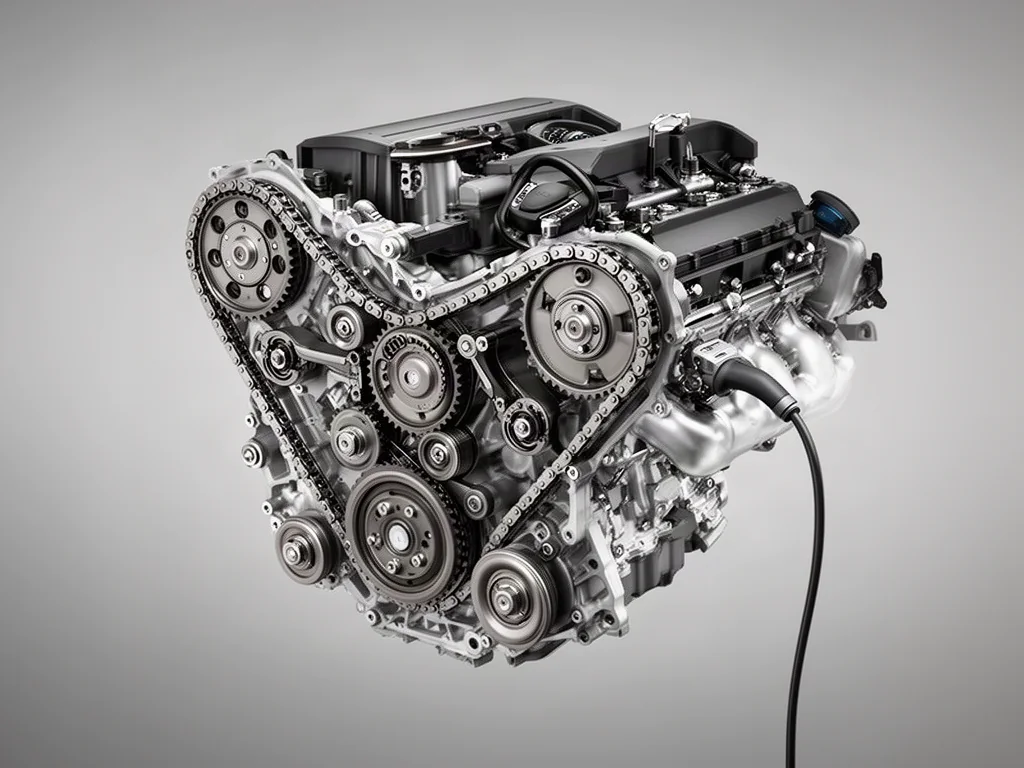

An application-correct Ford 3.5 timing chain diagram should identify the crankshaft sprocket, camshaft sprockets, chain routing, chain guides, hydraulic tensioners, and the timing references used for that engine. Those elements explain how the 3.5 EcoBoost timing chain or Duratec chain assembly is arranged, including any camshaft phasers shown on the cam drives. The illustration is an aid to understanding the assembly, not a substitute for service information. It should never be treated as a rotation sequence, a disassembly order, or a hands-on alignment procedure.
Chain-link identifiers and sprocket timing marks are not the same kind of reference, and their meaning depends on the correct service information for that Ford 3.5. Colored or plated links, painted marks, and teeth on camshaft or crankshaft sprockets can be interpreted only with the matching diagram. Owners looking for an Explorer-specific chain diagram and Ford 3.5 timing marks still need the engine identified; an unlabeled Ford 3.5 illustration cannot establish correct alignment for a particular Explorer. Using a generic picture as proof of position risks assembling the engine to the wrong correlation.
When a 3.5 EcoBoost Timing Chain Needs Professional Assessment
Unusual startup noise, rough running, or a warning light can justify a professional look at a 3.5 EcoBoost timing chain, but none of those symptoms prove the chain itself is worn. Similar noises can come from other front-end or valvetrain components. Owners can help by recording whether the sound appears cold or warm, how long it lasts after start, whether it changes with oil temperature, and recent oil-service history. That timeline, plus any stored messages, gives a technician a clearer starting point than a single complaint of rattle.
A timing chain replacement on a 3.5 EcoBoost should follow diagnosis, not a parts guess. Fault codes are evidence to interpret, not proof a chain, guide, or phaser has failed, and manufacturer-dependent codes need vehicle-specific confirmation. Camshaft and crankshaft correlation testing, oil-pressure evaluation, and inspection by a qualified technician often decide whether replacement is justified. The job is a broad engine-front repair that needs application-specific tooling and expertise. If severe mechanical noise, an oil-pressure warning, or major running problems develop, stop safely and arrange assistance rather than continuing to drive.
Check What a 3.5 EcoBoost Timing Chain Kit Includes

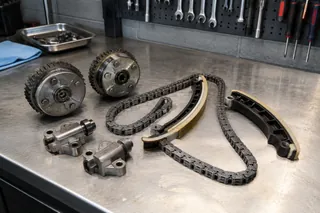

A 3.5 EcoBoost timing chain kit is not a standard package, and the word complete does not establish which components are actually supplied. Compare the contents list to the engine identified for that vehicle. Typical items to verify include primary and any secondary chains, chain guides, hydraulic tensioners, camshaft sprockets, the crankshaft sprocket, and whether camshaft phasers are included or sold separately. Two kits labeled for a Ford 3.5 can still omit different wear parts, so catalog fitment language is not a substitute for reading the packing list.
Timing cover seals, gaskets, fluids, and fasteners required by the applicable service procedure are often separate estimate items even when a kit looks comprehensive. Application confirmation is required before discussing fitment; a kit sold for a 3.5 EcoBoost in one vehicle may not match another 3.5 layout. Included parts also differ from additional components justified only after inspection, such as a damaged phaser, a worn sprocket, or a cover that will not seal. Those extras should appear as named line items after the technician documents why they are needed.
Understand Explorer and 3.5 EcoBoost Replacement Cost Factors
Ford Explorer timing chain replacement cost is not a single number, and neither is 3.5 EcoBoost timing chain replacement cost. Engine configuration, access to the front of the engine, local replacement labor rates, and the confirmed repair scope all shape the total. An Explorer with a 3.5 EcoBoost can require a different labor path than a Duratec 3.5 in another application, and shops bill diagnostic time separately from the repair. A meaningful estimate needs the vehicle details, the identified engine, and diagnostic findings rather than a universal Explorer price.
Ask for an itemized repair estimate that separates diagnostic work, replacement labor, named parts from the kit, timing cover seals, fluids, taxes, and warranty terms. That breakdown shows what is included when replacing a 3.5 EcoBoost timing chain and what remains optional until inspection. Documented damage or worn associated components can expand the scope after the cover is off, and additional work needs owner authorization before it is performed. Without those line items, two Explorer quotes that look similar on the bottom line can represent very different repairs.
Confirm the Repair Scope for 2014 and 2016 Ford Explorers
A 2014 Ford Explorer timing chain replacement and a 2016 Ford Explorer timing chain replacement are not automatically the same job. Both model years can appear in Explorer timing discussions, yet a year stamp does not establish the fitted engine, the correct timing diagram, the matching kit, or the replacement procedure. Confirm whether the vehicle has a 3.5 Duratec or a 3.5 EcoBoost before applying this Ford 3.5 guidance. Once the engine is identified, the shop can select application-correct marks, parts, and labor rather than borrowing another Explorer's paperwork.
Before authorizing work, ask the shop to confirm engine identification, the evidence that supports chain replacement, the proposed 3.5 EcoBoost timing chain kit or Duratec equivalent, and any associated work such as phasers, guides, or cover seals. That conversation keeps a 2014 or 2016 Explorer job tied to findings rather than a generic timing-chain package. Completed repair documentation should record the installed parts, the repair warranty, and verification that the original noise, running concern, or warning was addressed after assembly. Keep those records with the vehicle so later service can see what was actually replaced.
