Timing Chain Parts Explained: Sprockets, Gears, Phasers and Diagram
A diagram for timing chain hardware is most useful when it shows how the crankshaft sprocket, chain, camshaft sprockets, cam phasers, guides, and tensioner share one rotating circuit. Timing chain diagrams of that kind are conceptual maps, not installation templates. They help you read how valve timing stays coordinated with piston travel, and they show why each timing chain part has a job that only makes sense in relation to the others.
Read a Timing Chain Diagram from Crankshaft to Camshafts

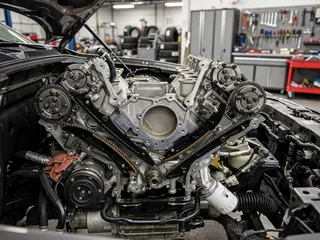

On a labeled conceptual timing chain diagram, start at the crankshaft sprocket at the front of the crank, then follow the chain as it wraps the camshaft sprockets. Many layouts also show timing chain phasers at the cam drive, plus chain guides that hold the route and a chain tensioner that takes up slack. That picture locates the hardware so you can see which components transmit rotation, which control the path, and which can shift camshaft timing while the chain still carries the drive.
Crankshaft rotation is what actually drives the camshafts. As the pistons go up and down, the chain turns the cams so intake and exhaust valves open and close in step with those piston events. In a conventional four-stroke engine, each camshaft completes one revolution for every two crankshaft revolutions, which is why camshaft timing is geared to a slower cam speed than crank speed. Chain routes, sprocket counts, and any secondary drives still depend on the engine; a conceptual diagram cannot establish installation alignment.
Identify the Parts Inside the Timing Chain Assembly
The chain itself is the linked connection that transmits rotation between the crankshaft and the camshaft drive components. The rest of the timing chain parts make more sense when grouped by function. Some pieces, including the sprockets or timing gears, transmit motion, while guides and the tensioner control the chain path and maintain tension, and on engines with variable valve timing a cam phaser adjusts valve events at the cam drive. That grouping makes a timing chain and sprocket layout easier to interpret than a parts list alone.
The timing cover encloses this hardware, shielding it from dirt and helping retain the oil that lubricates chain joints, sprocket teeth, guide faces, and any hydraulic tensioner or phaser. Without that oil film, metal-to-metal contact rises quickly. A product sold as a timing chain kit can still include different combinations of chain, sprockets, guides, tensioner, gaskets, or phasers, so the kit name does not establish contents or fitment. Confirm each timing chain part against the engine's documentation before treating a boxed set as complete.
How Timing Chain Sprockets and Gears Transmit Rotation
A timing chain sprocket uses teeth that sit in the chain's openings so rotation can transfer without relying on friction alone. The crankshaft sprocket turns with the crank, the chain carries that motion, and the remaining timing chain sprockets turn the cams. Listings often label the same hardware as a timing chain gear or a gear timing chain, grouping a timing gear and chain as one family. Identify each piece by what it actually does on that engine, not by the catalog label.
Sprocket diameter and tooth count set the rotational relationship between crank and cams, which is how the timing chain and gears keep the two-to-one four-stroke relationship. Universal tooth counts do not apply; those numbers are engine-specific. Because the chain and sprockets wear as a pair, a stretched chain can ride poorly on still-serviceable teeth, and worn sprocket teeth can accelerate chain damage. Condition has to be evaluated together. Wear limits, replacement pairing, and whether a timing chain and sprockets must be renewed as a set belong to engine-specific inspection, not a general diagram.
How Cam Phasers Adjust Valve Timing
On engines that use this form of variable valve timing, a cam phaser sits at the camshaft drive, usually where a camshaft sprocket would otherwise be a fixed hub. The chain still delivers a steady input, and the phaser changes the camshaft's angular position relative to that input. Advancing or retarding the cam this way moves valve events earlier or later in the cycle without breaking the underlying timing chain and sprocket relationship. Not every engine has phasers; their presence is a design choice, not a universal feature of every timing chain diagram.
Oil-controlled actuation is a common design: pressurized oil, directed by a control valve, moves vanes or a piston inside the phaser so the cam can shift under running conditions. Actuation methods and control hardware still vary by engine, so another layout may use a different oil circuit or solenoid arrangement. Oil supply, control hardware, and the phaser's mechanical condition can all affect how well it responds. A rattle, a rough idle, or a stored fault is evidence to interpret, not proof that a timing chain phaser has failed.
How Guides and Tensioners Control the Chain Path
In the same conceptual diagram, fixed chain guides sit along the taut or return run to keep the chain from slapping against the cover or jumping a tooth, while a movable tensioner guide bears on the slack side. Together they support the intended route so the timing chain and sprockets stay meshed. The chain tensioner then acts on the chain or on that movable guide, taking up slack as temperature, speed, and chain wear change the amount of free play in the loop.
Tensioner designs differ. Some rely mainly on a spring, others on oil pressure in a hydraulic chamber, and many combine a spring with a hydraulic assist and a ratchet or other retainer so the plunger does not collapse when pressure drops. Where hydraulic operation is used, oil supply and oil condition matter as much as the mechanical parts. Tensioning still cannot restore worn chain joints or repair a grooved, cracked, or missing guide face. Internal condition of the chain, guides, and tensioner requires inspection rather than assumption from slack alone.
What Symptoms Can Reveal About Timing Chain Parts
Unusual rattling at start-up, rough running, or a warning light can appear when timing-drive condition has changed, but none of those observations belongs to one timing chain part by default. A loose chain, a tired tensioner, a damaged guide, a sluggish phaser, or an oil-pressure problem can overlap in what the driver hears or feels. If a sound occurs, note when it happens, whether at cold start, idle, or under load, and check oil level with the engine off according to the owner's manual. That record helps diagnosis without turning the symptom into a parts verdict.
Professional diagnosis may add scan data, oil-pressure testing, and mechanical timing checks because a diagram or a phone recording cannot confirm the cause. Manufacturer-dependent codes still need vehicle-specific confirmation; a code is evidence, not proof a sprocket, chain, or phaser has failed. If an oil-pressure warning appears or sudden severe mechanical noise starts, stop safely, shut the engine off, and arrange professional help. Cover removal, tensioner release, engine rotation, and timing alignment stay outside this explanation, because those steps require engine-specific procedures rather than a general timing chain diagram.
