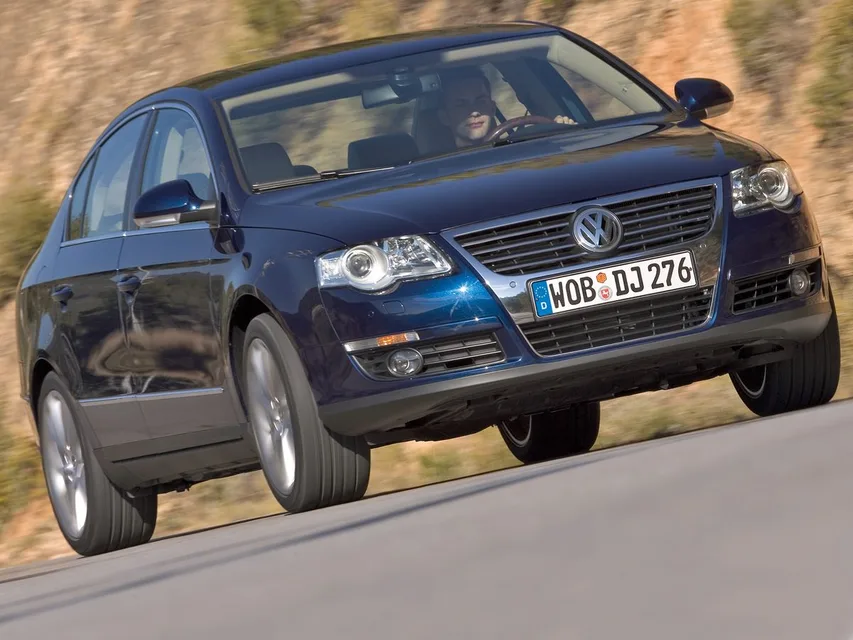

Volkswagen Passat 1.6 MT Specs — Sixth Generation

The Volkswagen Passat 1.6 MT suits daily use with straightforward operation and an easygoing character for routine trips.

6 generation · Sedan

2005–2010

1.6 MT

Diesel · Manual · FWD

At a glance

View full specifications ↓

Choose a trim

Confirmed trim details are not yet available for this modification.

Report an inaccuracy ↗

Specifications

Jump to a section

Performance & powertrain

Top speed
?

The highest speed a vehicle can sustain under manufacturer test conditions. Some cars are electronically limited below their mechanical potential. Glossary entry

193 km/h
Engine type
Diesel
Transmission
Manual
Type of boost
?

A turbocharger or supercharger compresses the air entering the engine so a smaller engine can produce more power. Naturally aspirated engines draw air without a compressor. Glossary entry

Turbo
Type of drive
?

Which wheels receive power: front-wheel drive, rear-wheel drive or all-wheel drive. All-wheel drive can send power to every wheel for extra traction. Glossary entry

FWD
Bore and stroke
?

The diameter of a cylinder (bore) and the distance the piston travels inside it (stroke). Together they determine the displacement of the engine. Glossary entry

76.5 × 86.4 mm
Engine capacity
?

The total volume swept by all pistons inside the cylinders, usually stated in cubic centimetres or litres. Larger displacement often means more power but higher consumption. Glossary entry

1598 cm³
Engine location
Front, transverse
Number of gears
?

How many fixed forward ratios a gearbox offers. More gears can improve economy and refinement; continuously variable transmissions have no fixed steps. Glossary entry

5
Maximum power
?

A unit of engine or motor output. One metric horsepower is about 0.735 kilowatts. Peak power is normally reached at high engine speed. Glossary entry

105 hp
Maximum power, kw
?

A unit of engine or motor output. One metric horsepower is about 0.735 kilowatts. Peak power is normally reached at high engine speed. Glossary entry

77 kW
Compression ratio
?

The ratio between the largest and smallest volume of a cylinder as the piston moves. Higher ratios improve efficiency but may require higher-octane fuel. Glossary entry

23
Maximum power rpm
4400 rpm
Maximum torque N⋅m
250 N⋅m
Maximum torque rpm
1500 rpm
Acceleration to 100
?

The time a vehicle needs to reach 100 km/h from a standstill, a common shorthand for overall performance. Glossary entry

12.4 s
Engine power system
Not provided
Number of cylinders
4
Valves per cylinder
?

The number of intake and exhaust valves in each cylinder. Four valves per cylinder is common and helps the engine breathe at higher speeds. Glossary entry

2
Cylinder arrangement
Inline
Maximum power ICE
Not provided
Maximum power ICE
Not provided

Energy & emissions

ECO class
Euro 4
Battery power
Not provided
Fuel grade
Diesel
Mild Hybrid
?

A car with a small electric motor and battery that assist the combustion engine and recover braking energy but cannot drive on electricity alone. Glossary entry

Not provided
Battery type
Not provided
CO2 emissions
?

The amount of carbon dioxide released per kilometre under a standardised test. Lower figures usually go hand in hand with lower fuel consumption. Glossary entry

Not provided
Full charge home
Not provided
Power consumption
Not provided
Fuel tank capacity
70 l
Full public charging time
Not provided
Driving range, maximum
?

The distance an electric or plug-in vehicle can travel on a full charge under a stated test cycle. Temperature, speed and load change the real result. Glossary entry

Not provided
Driving range, minimum
?

The distance an electric or plug-in vehicle can travel on a full charge under a stated test cycle. Temperature, speed and load change the real result. Glossary entry

Not provided
Fuel consumption city
5.4 l
Average consumption
4.4 l
Fuel consumption highway
3.8 l

Dimensions & body

Doors number
4
Number of seats
5
Width
1820 mm
Height
1472 mm
Length
4765 mm
Body type
Sedan
Wheelbase
?

The distance between the centres of the front and rear wheels. A longer wheelbase usually gives more cabin space and a calmer ride; a shorter one helps agility and parking. Glossary entry

2709 mm
U-turn diameter
Not provided
Depth of the ford to be crossed
Not provided
Body style
Sedan
Rear track width
?

The distance between the centres of the two wheels on the same axle. A wider track generally improves stability in corners. Glossary entry

1551 mm
Trunk volume max
Not provided
Trunk volume min
565 l
Front track width
?

The distance between the centres of the two wheels on the same axle. A wider track generally improves stability in corners. Glossary entry

1552 mm
Max weight
1990 kg
Curb weight
?

The weight of the vehicle with all standard equipment and fluids but without passengers or cargo. Glossary entry

1495 kg
Ground clearance, maximum
?

The gap between the lowest point of the underbody and the road. More clearance helps on rough roads and steep driveway ramps. Glossary entry

Not provided
Ground clearance, minimum
?

The gap between the lowest point of the underbody and the road. More clearance helps on rough roads and steep driveway ramps. Glossary entry

150 mm

Identity & configuration

Vehicle class
D
Body designation
3C2
Right-hand drive
No

Additional specifications

Stop
2010-07-31
Start
2005-03-01
Wheel size
Not provided
Rear brakes
Disc
Front brakes
Ventilated disc
Rear suspension
Independent, spring
Front suspension
Independent, spring

Not provided means the source has no value. Zero remains zero. Units are shown as supplied; range test cycles are only stated when known.

Fuel cost calculator

Estimates use only the figures you enter, in your own currency. No live fuel prices or emissions data are used.

Units

Enable JavaScript to calculate estimates.

Engine and Transmission

In everyday driving, predictability matters more than peak output; a modest engine with a manual gearbox lets the driver maintain smooth progress without constant attention.

Drivetrain and Everyday Driving

Familiar controls reduce distraction because common adjustments are made by touch, so the driver can keep attention on the road rather than searching for a switch.

Body and Practicality

For daily errands, easy access to the boot and a flat load area help when carrying shopping or a folded pushchair without having to rearrange items.
