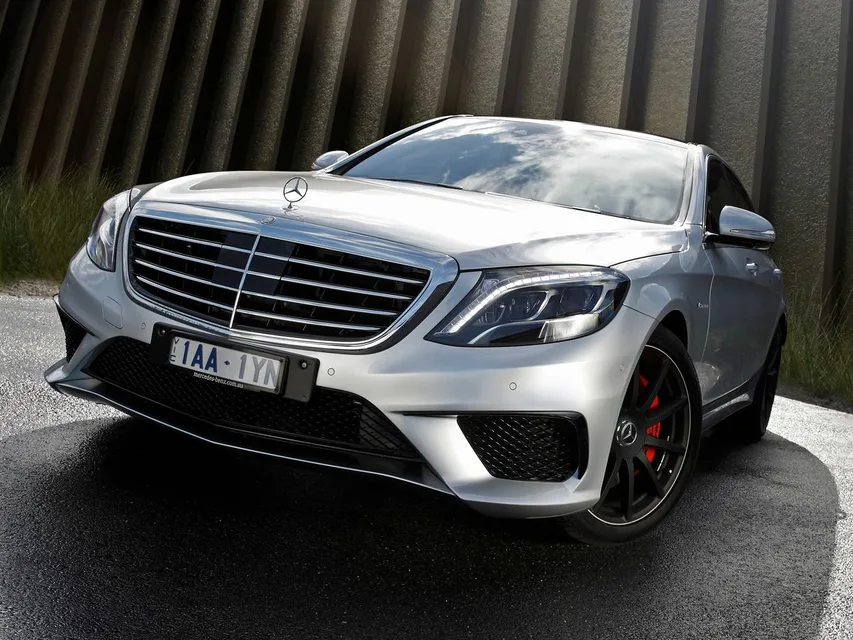

Mercedes S-Class AMG S63 5.5 AT Standart Equipment — Third Generation

The Mercedes S-Class AMG S63 5.5 AT in Standart form gathers its running information in one place, and the on-board computer is the clearest example of how that data reaches the driver.

3 generation · Sedan

2013–2017

S63 5.5 AT

Gasoline · Automatic · RWD

At a glance

View full specifications ↓

Standart

Report an inaccuracy ↗

Specifications

Jump to a section

Performance & powertrain

Top speed
?

The highest speed a vehicle can sustain under manufacturer test conditions. Some cars are electronically limited below their mechanical potential. Glossary entry

250 km/h
Engine type
Gasoline
Transmission
Automatic
Type of boost
?

A turbocharger or supercharger compresses the air entering the engine so a smaller engine can produce more power. Naturally aspirated engines draw air without a compressor. Glossary entry

Turbo
Type of drive
?

Which wheels receive power: front-wheel drive, rear-wheel drive or all-wheel drive. All-wheel drive can send power to every wheel for extra traction. Glossary entry

RWD
Bore and stroke
?

The diameter of a cylinder (bore) and the distance the piston travels inside it (stroke). Together they determine the displacement of the engine. Glossary entry

Not provided
Engine capacity
?

The total volume swept by all pistons inside the cylinders, usually stated in cubic centimetres or litres. Larger displacement often means more power but higher consumption. Glossary entry

5461 cm³
Engine location
Not provided
Number of gears
?

How many fixed forward ratios a gearbox offers. More gears can improve economy and refinement; continuously variable transmissions have no fixed steps. Glossary entry

7
Maximum power
?

A unit of engine or motor output. One metric horsepower is about 0.735 kilowatts. Peak power is normally reached at high engine speed. Glossary entry

585 hp
Maximum power, kw
?

A unit of engine or motor output. One metric horsepower is about 0.735 kilowatts. Peak power is normally reached at high engine speed. Glossary entry

430 kW
Compression ratio
?

The ratio between the largest and smallest volume of a cylinder as the piston moves. Higher ratios improve efficiency but may require higher-octane fuel. Glossary entry

10
Maximum power rpm
5500 rpm
Maximum torque N⋅m
800 N⋅m
Maximum torque rpm
1750 – 5000 rpm
Acceleration to 100
?

The time a vehicle needs to reach 100 km/h from a standstill, a common shorthand for overall performance. Glossary entry

4.4 s
Engine power system
Distributed injection (multi-point)
Number of cylinders
8
Valves per cylinder
?

The number of intake and exhaust valves in each cylinder. Four valves per cylinder is common and helps the engine breathe at higher speeds. Glossary entry

4
Cylinder arrangement
V-shaped
Maximum power ICE
Not provided
Maximum power ICE
Not provided

Energy & emissions

ECO class
Euro 6
Battery power
Not provided
Fuel grade
98
Mild Hybrid
?

A car with a small electric motor and battery that assist the combustion engine and recover braking energy but cannot drive on electricity alone. Glossary entry

Not provided
Battery type
Not provided
CO2 emissions
?

The amount of carbon dioxide released per kilometre under a standardised test. Lower figures usually go hand in hand with lower fuel consumption. Glossary entry

Not provided
Full charge home
Not provided
Power consumption
Not provided
Fuel tank capacity
70 l
Full public charging time
Not provided
Driving range, maximum
?

The distance an electric or plug-in vehicle can travel on a full charge under a stated test cycle. Temperature, speed and load change the real result. Glossary entry

Not provided
Driving range, minimum
?

The distance an electric or plug-in vehicle can travel on a full charge under a stated test cycle. Temperature, speed and load change the real result. Glossary entry

Not provided
Fuel consumption city
13.8 l
Average consumption
10.1 l
Fuel consumption highway
7.9 l

Dimensions & body

Doors number
4
Number of seats
5
Width
1899 mm
Height
1496 mm
Length
5116 mm
Body type
Sedan
Wheelbase
?

The distance between the centres of the front and rear wheels. A longer wheelbase usually gives more cabin space and a calmer ride; a shorter one helps agility and parking. Glossary entry

3035 mm
U-turn diameter
Not provided
Depth of the ford to be crossed
Not provided
Body style
Sedan
Rear track width
?

The distance between the centres of the two wheels on the same axle. A wider track generally improves stability in corners. Glossary entry

1637 mm
Trunk volume max
Not provided
Trunk volume min
510 l
Front track width
?

The distance between the centres of the two wheels on the same axle. A wider track generally improves stability in corners. Glossary entry

1624 mm
Max weight
2700 kg
Curb weight
?

The weight of the vehicle with all standard equipment and fluids but without passengers or cargo. Glossary entry

2045 kg
Ground clearance, maximum
?

The gap between the lowest point of the underbody and the road. More clearance helps on rough roads and steep driveway ramps. Glossary entry

Not provided
Ground clearance, minimum
?

The gap between the lowest point of the underbody and the road. More clearance helps on rough roads and steep driveway ramps. Glossary entry

127 mm

Identity & configuration

Body code
W222
Vehicle class
S
Body designation
W222
Right-hand drive
No

Additional specifications

Stop
2017-12-31
Start
2013-01-01
Wheel size
Not provided
Rear brakes
Ventilated disc
Front brakes
Ventilated disc
Rear suspension
Independent, pneumatic
Front suspension
Independent, spring

Trim equipment

Dimensions & body

Number of seats
5

Additional specifications

Driver Assistance Systems
Anti-lock braking system (ABS), Electronic stability program (ESP), Hill start assist (HAS), Emergency brake assist (BAS, EBD, EBA), Automatic slip regulation (ASR)
Stop
2017-12-31
View
Automatic headlight range control, Headlight washer system, Light sensor, Rain sensor, High beam assist
Start
2013-01-01
Airbags
Driver's airbag, Passenger airbag, Side front airbags, Side rear airbags, Window airbags (curtains), Driver's knee airbag, Passenger's knee airbag
Camera
Rear-view camera
Isofix
Isofix for the back row
Material
Alloy
Comfort
On-board computer, Keyless entry system, Engine Start Button, Power folding mirrors, Power mirrors, Multifunction steering wheel, Paddle Shifters
Exterior
Metallic
Interior
Third rear headrest, Pedal pads, Kicking plates, Sports front seats, Leather steering wheel, Front center armrest, Power window
Safety
Driver drowsiness detection, Tire pressure sensors
Headlights
LED headlights
Sound
Audio system
Diameter
R19 ″
Multimedia
USB, Bluetooth, 12V
Cruise control
Cruise control
Parking assist system
Front parking sensors, Rear parking sensors
Power steering
Active power steering
Air conditioner
Dual-zone climate control
Seat position memory
Front seats with memory function
Steering wheel adjustment
Steering wheel height adjustment, Steering wheel reach adjustment
Anti theft system
Keyless central locking, Immobilizer
Seat trim
Genuine leather seats
Power seat adjustment
Front seat adjustment

Not provided means the source has no value. Zero remains zero. Units are shown as supplied; range test cycles are only stated when known.

Fuel cost calculator

Estimates use only the figures you enter, in your own currency. No live fuel prices or emissions data are used.

Units

Enable JavaScript to calculate estimates.

Comfort and Convenience

The on-board computer responds to a stalk or steering-wheel button: each press steps through stored trip values, consumption and range readouts, so the display changes immediately without touching the climate or audio settings.

Safety and Driver Assistance

Hill start assist only holds brake pressure for a moment after the pedal is released, preventing rollback on a gradient. It does nothing about the gap ahead, so following distance still governs whether stopping is possible.

Multimedia and Connectivity

A 12V power outlet supplies electricity alone; it keeps a phone alive but carries no audio or data. Sound and calls travel separately over Bluetooth or the USB connection to the audio system.
