Hyundai Tucson 1.6 AT Specs — Fourth Generation Restyling
The Hyundai Tucson 1.6 AT is built for straightforward everyday use, where predictable behaviour and ease of operation matter more than standout numbers.
4 generation, restyling · SUV Long

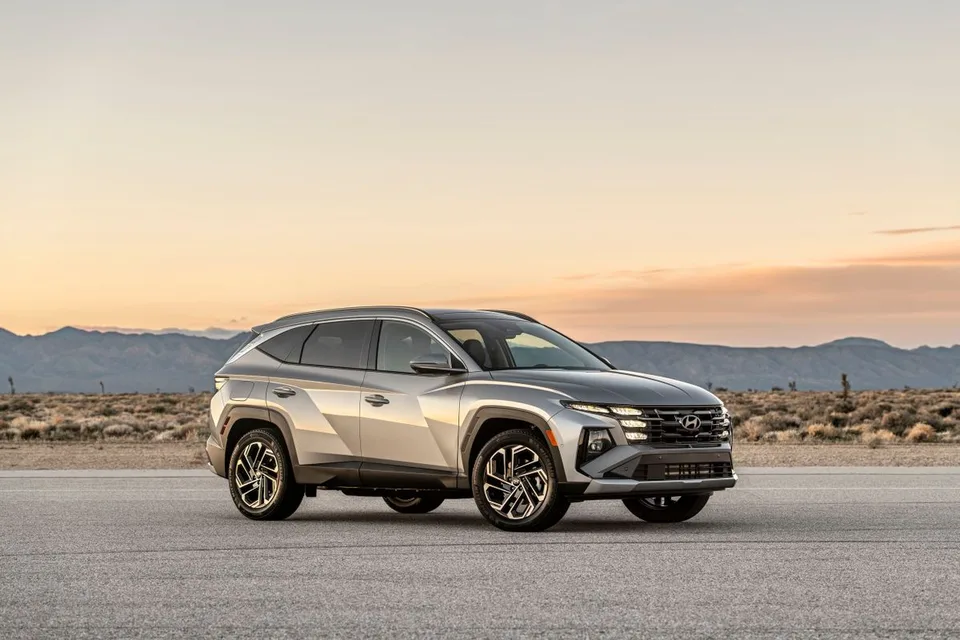

Generation photo. Individual trim appearance may differ.
The highest speed a vehicle can sustain under manufacturer test conditions. Some cars are electronically limited below their mechanical potential. Glossary entry
192 km/h
Engine type
Gasoline
Transmission
Robotic
Type of boost?
A turbocharger or supercharger compresses the air entering the engine so a smaller engine can produce more power. Naturally aspirated engines draw air without a compressor. Glossary entry
Turbo
Type of drive?
Which wheels receive power: front-wheel drive, rear-wheel drive or all-wheel drive. All-wheel drive can send power to every wheel for extra traction. Glossary entry
AWD
Bore and stroke?
The diameter of a cylinder (bore) and the distance the piston travels inside it (stroke). Together they determine the displacement of the engine. Glossary entry
Not provided
Engine capacity?
The total volume swept by all pistons inside the cylinders, usually stated in cubic centimetres or litres. Larger displacement often means more power but higher consumption. Glossary entry
1598 cm³
Engine location
Front, transverse
Number of gears?
How many fixed forward ratios a gearbox offers. More gears can improve economy and refinement; continuously variable transmissions have no fixed steps. Glossary entry
7
Maximum power?
A unit of engine or motor output. One metric horsepower is about 0.735 kilowatts. Peak power is normally reached at high engine speed. Glossary entry
160 hp
Maximum power, kw?
A unit of engine or motor output. One metric horsepower is about 0.735 kilowatts. Peak power is normally reached at high engine speed. Glossary entry
117 kW
Compression ratio?
The ratio between the largest and smallest volume of a cylinder as the piston moves. Higher ratios improve efficiency but may require higher-octane fuel. Glossary entry
10.5
Maximum power rpm
5500 rpm
Maximum torque N⋅m
265 N⋅m
Maximum torque rpm
1500-4500 rpm
Acceleration to 100?
The time a vehicle needs to reach 100 km/h from a standstill, a common shorthand for overall performance. Glossary entry
9.8 s
Engine power system
Direct injection (direct)
Number of cylinders
4
Valves per cylinder?
The number of intake and exhaust valves in each cylinder. Four valves per cylinder is common and helps the engine breathe at higher speeds. Glossary entry
4
Cylinder arrangement
Inline
Maximum power ICE
Not provided
Maximum power ICE
Not provided
Energy & emissions
ECO class
Euro 6
Battery power
Not provided
Fuel grade
95
Mild Hybrid?
A car with a small electric motor and battery that assist the combustion engine and recover braking energy but cannot drive on electricity alone. Glossary entry
MHEV48V
Battery type
Lithium-ion batterie
CO2 emissions?
The amount of carbon dioxide released per kilometre under a standardised test. Lower figures usually go hand in hand with lower fuel consumption. Glossary entry
Not provided
Full charge home
Not provided
Power consumption
Not provided
Fuel tank capacity
62 l
Full public charging time
Not provided
Driving range, maximum?
The distance an electric or plug-in vehicle can travel on a full charge under a stated test cycle. Temperature, speed and load change the real result. Glossary entry
Not provided
Driving range, minimum?
The distance an electric or plug-in vehicle can travel on a full charge under a stated test cycle. Temperature, speed and load change the real result. Glossary entry
Not provided
Fuel consumption city
Not provided
Average consumption
6.3 l
Fuel consumption highway
Not provided
Dimensions & body
Doors number
5
Number of seats
5
Width
1865 mm
Height
1665 mm
Length
4640 mm
Body type
SUV Long
Wheelbase?
The distance between the centres of the front and rear wheels. A longer wheelbase usually gives more cabin space and a calmer ride; a shorter one helps agility and parking. Glossary entry
2755 mm
U-turn diameter
10.92 m
Depth of the ford to be crossed
Not provided
Body style
SUV
Rear track width?
The distance between the centres of the two wheels on the same axle. A wider track generally improves stability in corners. Glossary entry
1622 mm
Trunk volume max
1756 l
Trunk volume min
1577 l
Front track width?
The distance between the centres of the two wheels on the same axle. A wider track generally improves stability in corners. Glossary entry
1615 mm
Max weight
2095 kg
Curb weight?
The weight of the vehicle with all standard equipment and fluids but without passengers or cargo. Glossary entry
1649 kg
Ground clearance, maximum?
The gap between the lowest point of the underbody and the road. More clearance helps on rough roads and steep driveway ramps. Glossary entry
Not provided
Ground clearance, minimum?
The gap between the lowest point of the underbody and the road. More clearance helps on rough roads and steep driveway ramps. Glossary entry
Not provided
Identity & configuration
Vehicle class
J
Right-hand drive
No
Additional specifications
Stop
Not provided
Start
2023-12-01
Wheel size
Not provided
Rear brakes
Disc
Front brakes
Ventilated disc
Rear suspension
Independent, spring
Front suspension
Independent, spring
No specifications match your search. Try another label or value, or clear the search.
Not provided means the source has no value. Zero remains zero. Units are shown as supplied; range test cycles are only stated when known.
