The Ford Mondeo 2.5 AT belongs to the third-generation range, and one useful thing to understand is what happens through the front wheels when the accelerator is released.
3 generation · Sedan

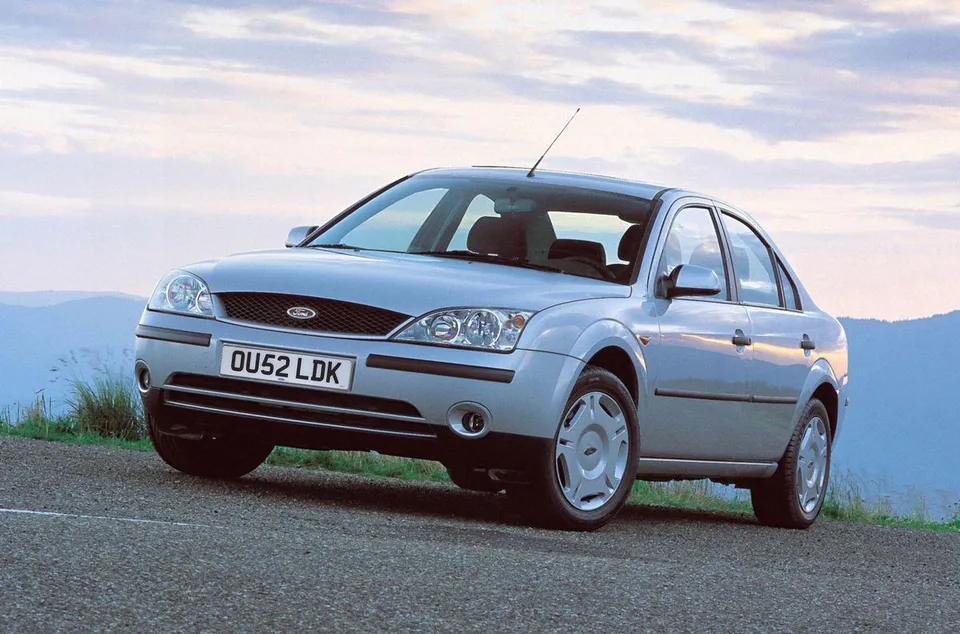

Generation photo. Individual trim appearance may differ.
The highest speed a vehicle can sustain under manufacturer test conditions. Some cars are electronically limited below their mechanical potential. Glossary entry
216 km/h
Engine type
Gasoline
Transmission
Automatic
Type of boost?
A turbocharger or supercharger compresses the air entering the engine so a smaller engine can produce more power. Naturally aspirated engines draw air without a compressor. Glossary entry
No
Type of drive?
Which wheels receive power: front-wheel drive, rear-wheel drive or all-wheel drive. All-wheel drive can send power to every wheel for extra traction. Glossary entry
FWD
Bore and stroke?
The diameter of a cylinder (bore) and the distance the piston travels inside it (stroke). Together they determine the displacement of the engine. Glossary entry
81.6 × 79.5 mm
Engine capacity?
The total volume swept by all pistons inside the cylinders, usually stated in cubic centimetres or litres. Larger displacement often means more power but higher consumption. Glossary entry
2495 cm³
Engine location
Front, transverse
Number of gears?
How many fixed forward ratios a gearbox offers. More gears can improve economy and refinement; continuously variable transmissions have no fixed steps. Glossary entry
5
Maximum power?
A unit of engine or motor output. One metric horsepower is about 0.735 kilowatts. Peak power is normally reached at high engine speed. Glossary entry
170 hp
Maximum power, kw?
A unit of engine or motor output. One metric horsepower is about 0.735 kilowatts. Peak power is normally reached at high engine speed. Glossary entry
125 kW
Compression ratio?
The ratio between the largest and smallest volume of a cylinder as the piston moves. Higher ratios improve efficiency but may require higher-octane fuel. Glossary entry
9.8
Maximum power rpm
6000 rpm
Maximum torque N⋅m
220 N⋅m
Maximum torque rpm
4250 rpm
Acceleration to 100?
The time a vehicle needs to reach 100 km/h from a standstill, a common shorthand for overall performance. Glossary entry
10.3 s
Engine power system
Distributed injection (multi-point)
Number of cylinders
6
Valves per cylinder?
The number of intake and exhaust valves in each cylinder. Four valves per cylinder is common and helps the engine breathe at higher speeds. Glossary entry
4
Cylinder arrangement
V-shaped
Maximum power ICE
Not provided
Maximum power ICE
Not provided
Energy & emissions
ECO class
Not provided
Battery power
Not provided
Fuel grade
95
Mild Hybrid?
A car with a small electric motor and battery that assist the combustion engine and recover braking energy but cannot drive on electricity alone. Glossary entry
Not provided
Battery type
Not provided
CO2 emissions?
The amount of carbon dioxide released per kilometre under a standardised test. Lower figures usually go hand in hand with lower fuel consumption. Glossary entry
Not provided
Full charge home
Not provided
Power consumption
Not provided
Fuel tank capacity
58 l
Full public charging time
Not provided
Driving range, maximum?
The distance an electric or plug-in vehicle can travel on a full charge under a stated test cycle. Temperature, speed and load change the real result. Glossary entry
Not provided
Driving range, minimum?
The distance an electric or plug-in vehicle can travel on a full charge under a stated test cycle. Temperature, speed and load change the real result. Glossary entry
Not provided
Fuel consumption city
15.2 l
Average consumption
10.2 l
Fuel consumption highway
7.5 l
Dimensions & body
Doors number
4
Number of seats
5
Width
1812 mm
Height
1429 mm
Length
4731 mm
Body type
Sedan
Wheelbase?
The distance between the centres of the front and rear wheels. A longer wheelbase usually gives more cabin space and a calmer ride; a shorter one helps agility and parking. Glossary entry
2754 mm
U-turn diameter
Not provided
Depth of the ford to be crossed
Not provided
Body style
Sedan
Rear track width?
The distance between the centres of the two wheels on the same axle. A wider track generally improves stability in corners. Glossary entry
1537 mm
Trunk volume max
1370 l
Trunk volume min
500 l
Front track width?
The distance between the centres of the two wheels on the same axle. A wider track generally improves stability in corners. Glossary entry
1522 mm
Max weight
1940 kg
Curb weight?
The weight of the vehicle with all standard equipment and fluids but without passengers or cargo. Glossary entry
1465 kg
Ground clearance, maximum?
The gap between the lowest point of the underbody and the road. More clearance helps on rough roads and steep driveway ramps. Glossary entry
Not provided
Ground clearance, minimum?
The gap between the lowest point of the underbody and the road. More clearance helps on rough roads and steep driveway ramps. Glossary entry
120 mm
Identity & configuration
Body code
3
Vehicle class
D
Body designation
B4Y
Right-hand drive
No
Additional specifications
Stop
2003-12-31
Start
2000-09-01
Wheel size
Not provided
Rear brakes
Ventilated disc
Front brakes
Ventilated disc
Rear suspension
Independent, spring
Front suspension
Independent, spring
No specifications match your search. Try another label or value, or clear the search.
Not provided means the source has no value. Zero remains zero. Units are shown as supplied; range test cycles are only stated when known.
Fuel cost calculator
Estimates use only the figures you enter, in your own currency. No live fuel prices or emissions data are used.
Fuel per trip
L
Trip cost
Monthly cost
Annual cost
Enable JavaScript to calculate estimates.
Engine and Transmission
Overrun describes the moment the wheels drive the engine rather than the reverse. With front-wheel drive, that trailing torque reaches the front tyres through the gearbox, producing a mild slowing effect as soon as the throttle is lifted.
Drivetrain and Everyday Driving
A front-wheel-drive label only states which axle receives torque. It says nothing about the differential between those wheels, which may be an ordinary open unit or a limiting design; the layout and the differential type are separate facts.
Body and Practicality
A sedan's boot sits under a separate lid, so the roof does not extend over the load area. Tall items cannot stand upright the way they might under a hatch roofline, while long flat objects slide in readily.
