U0109 Code: Fuel Pump Control Module Communication Fault
The U0109 code is a diagnostic trouble code that typically points to lost communication with a fuel pump control module on the vehicle communication network. That finding can help explain a no-start condition or engine stalling, but it is a communication record rather than a verdict that the pump itself has failed. Understanding what the code means, how it may present, and which checks are safe can guide the next service conversation.
What U0109 Means on Your Vehicle
On many vehicles, a U0109 code generally indicates that another controller lost communication with a fuel pump control module. The scan tool is reporting a network conversation that did not complete as expected, not a measured fuel-pressure reading. Before treating that message as a diagnosis, confirm the exact code description, how the manufacturer names the fuel-related controller, and the published diagnostic procedure for the vehicle's year, make, model, and powertrain. Module naming and network layout vary, so a generic label can mislead if it is applied to the wrong architecture.
The diagnostic trouble code records a communication problem. It does not by itself establish that the fuel pump or its controller has failed. An active U0109 means the lost communication condition is present at the time of the scan, while a stored or intermittent event can remain in memory after the network conversation has recovered. Distinguishing those states matters because a currently communicating module still needs a history review, and an active fault needs a different investigative path than a one-time dropout that is no longer occurring.
No-Start, Stalling, and Other Possible Symptoms
Possible symptoms include cranking without starting, unexpected engine stalling, and warning lights related to the powertrain or the vehicle communication network. Presentation depends on vehicle design: some systems may disable fuel delivery when they cannot talk to the fuel pump control module, while others may keep running until a later request fails. A no-start condition can therefore look like a fuel problem even when the recorded issue is communication. Because architecture differs, the same U0109 code can appear with a dead-quiet engine on one vehicle and a brief stumble on another.
A stored U0109 may still be present even when the vehicle currently starts and runs, because the controller saved an earlier lost-communication event that has not been cleared or has not repeated. Symptoms alone cannot identify whether the problem involves communication, electrical supply, fuel delivery, or another system that happens to share similar drivability effects. If the engine stalls, stop safely and arrange assistance when operation is unreliable. Repeated road testing to reproduce the fault is a poor choice when stalling can leave the vehicle without power in traffic.
Electrical and Module Faults That Can Interrupt Communication
Lost communication with a fuel pump control module can stem from several electrical issues. Missing module power and ground, a damaged wiring harness, connector corrosion, and faults on the network circuits that carry the conversation are all diagnostic possibilities. Low system voltage or a recent electrical interruption, such as a weak battery event or a jump-start, can provide useful context because modules may drop offline when supply is unstable. Those background details do not prove the cause; they only suggest where a technician should look first when interpreting the U0109 code.
Internal failure of the fuel pump control module remains a possibility, but replacement should wait for evidence that power, ground, connectors, and the vehicle communication network are intact and that the controller still does not respond. A communication code does not establish low fuel pressure or a failed pump motor. Those are separate mechanical or hydraulic questions. Treating U0109 as proof that the pump itself is dead can lead to unnecessary parts replacement while the actual interruption sits in a connector, a ground, or a network circuit that never reached the module.
Safe Observations to Record Before Service
Before service, record whether the engine cranks, when stalling occurs, which warning lights appear, and whether the issue is intermittent. Note whether a no-start condition is consistent or only appears after a heat soak, a bump, or a restart. Save the complete scan report, including the U0109 code status and any available event data, before clearing codes or disconnecting the battery. Once memory is erased, a technician loses the snapshot that shows whether the lost communication was active, stored, or accompanied by other diagnostic trouble codes.
Recent battery trouble, jump-starting, repairs near the fuel pump control module, or water exposure are useful history, but none of those events proves the cause of the communication fault. Limit visual observations to readily visible damage or moisture with the vehicle off. Leave connector disassembly, electrical probing, and fuel-system access to a qualified technician. If fuel odor, visible leakage, smoke, or overheating wiring is present, stop attempting to start the vehicle and seek assistance rather than continuing to crank or inspect under power.
How Professional Testing Narrows the Cause

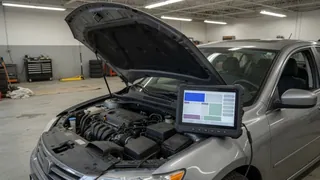

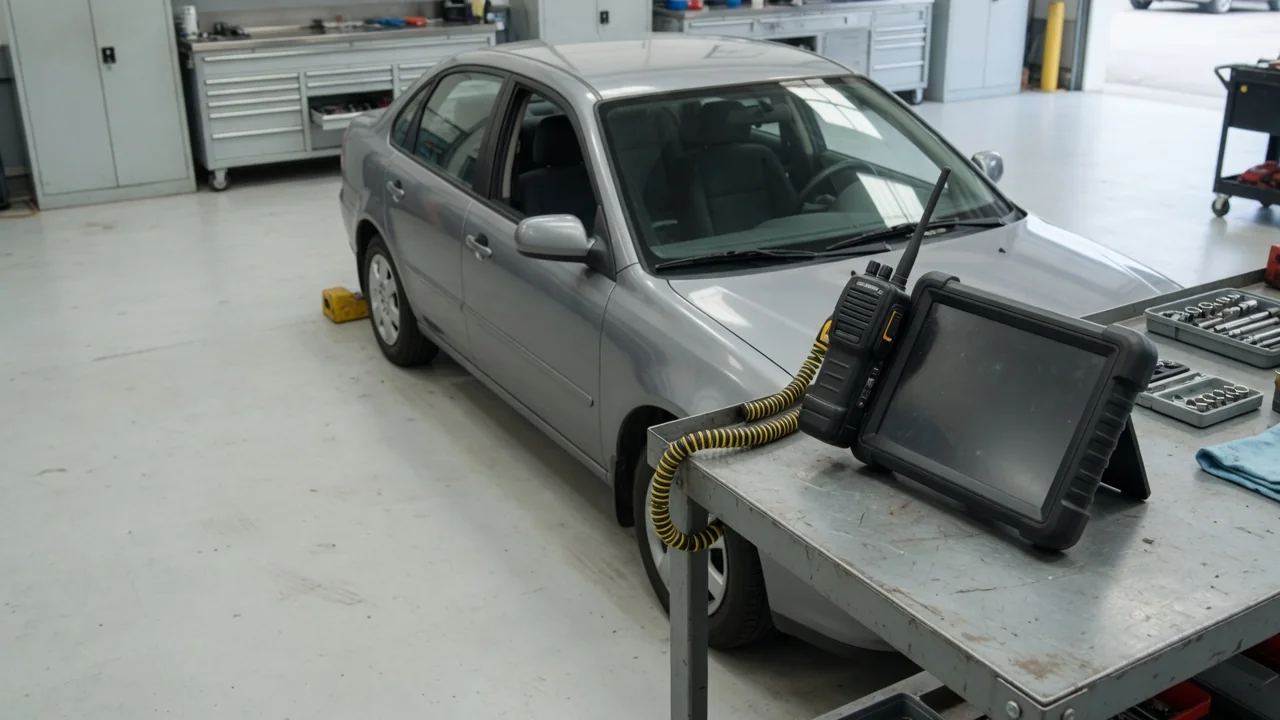

A vehicle-capable scan tool is needed to determine which modules still communicate and which modules report the U0109 code. That network view shows whether the fuel pump control module is silent, whether only one controller noticed the dropout, or whether several modules lost contact at once. Related communication and voltage codes help establish the scope of the problem without automatically identifying a failed component. A cluster of lost-communication codes plus low-voltage records points toward a supply or network issue, while an isolated U0109 still requires the same electrical confirmation.
Professional verification then checks controller power, grounds, connectors, and network integrity using vehicle-specific wiring information rather than generic assumptions. Commanded pump operation and fuel-pressure testing may be appropriate after electrical and communication findings are assessed, because those tests answer a different question than the diagnostic trouble code itself. Bypass of pump controls, jumping terminals, opening fuel lines, and probing network circuits are not owner-level steps. Those actions can damage controllers, create fire or fuel hazards, and erase the evidence a technician needs to interpret the lost communication correctly.
Repair Decisions and Confirmation That the Fault Is Resolved
Repair choices should follow confirmed findings. A damaged circuit, a poor connection in the wiring harness, a module power and ground fault, or a defective fuel pump control module each leads to a different repair, and swapping the controller first does not substitute for that evidence. If module replacement is justified, vehicle-specific programming and setup requirements must be checked, because a new controller may not communicate until it is configured for that powertrain. Installing hardware without the required setup can leave the same U0109 code in place after the part is changed.
Clearing U0109 alone does not demonstrate a successful repair. The code can stay gone until the next communication dropout, so erasure is not proof that the vehicle communication network and the fuel pump control module are healthy. Confirmation comes from restored module communication, a follow-up scan that shows the diagnostic trouble code has not returned, and professional verification of reliable operation under appropriate conditions, including start attempts and driving that match how the stalling or no-start condition originally appeared. Only then is the lost-communication fault reasonably considered resolved.
