P1310 Through P1316 Codes: Vehicle-Specific Meanings and Diagnosis
P1310 through P1316 are manufacturer-specific trouble codes, not one universal ignition definition. A generic scanner may label P1316, P1315, P1310, P1312, P1314, P1313, or P1311 without identifying the monitored circuit or condition on your vehicle. Confirm make, model, year, engine, and factory service information before treating any code as a coil, igniter, or misfire diagnosis.
Verify the Vehicle-Specific Meaning Before Interpreting the Code
P1310 through P1316 sit in the manufacturer-specific range, so they do not share one ignition-system definition across brands. The same number can describe an igniter circuit on one engine, an ignition feedback signal on another, or a completely different monitored condition on a third. Assigning a meaning without the vehicle's make, model, year, engine, and applicable manufacturer service information turns a code into a guess. That guess can send diagnosis toward the wrong coil, cylinder, or wiring harness.
A generic scan tool description often lacks the monitoring condition, cylinder assignment, or circuit designation the factory procedure uses. Treat that short label as a starting hint, not a parts list. Connect a stored code to an ignition coil, igniter circuit, cylinder, or ignition feedback signal only when the vehicle-specific definition supports that connection. If the factory description points elsewhere, follow that monitored fault instead of assuming every code in this range is an ignition coil failure.
P1310, P1311, and P1312: Confirm Each Definition Separately
For P1310, establish the applicable make and engine context first, then read what the control module actually monitored and what fault condition it set. Adjacent numbering does not prove P1311 is the next coil, the next cylinder, or the same type of circuit. P1311 requires its own verified definition from manufacturer service information. Inferring its meaning from P1310 can misidentify the circuit under test and waste time on an ignition coil that the module never evaluated.
P1312 likewise needs a confirmed circuit or component designation. Do not assume the final digit identifies a cylinder; some manufacturers use sequential numbers for related monitors, while others assign P1312 to a different function entirely. For each of these codes, distinguish what the control module detected from the part that ultimately caused the condition. A missing feedback signal, an open igniter circuit, or a wiring fault can set the same code. Leave unsupported make-specific mappings unstated until the application is confirmed.
P1313, P1314, P1315, and P1316: Identify the Monitored Fault
P1313, taken alone, only records that a manufacturer-defined monitor failed. It does not prove an ignition coil has failed, identify a cylinder, or establish that the igniter is the failed part. After the vehicle application is confirmed, the factory definition states which circuit or condition was watched and what threshold was crossed. P1314 follows the same rule: identify the monitored circuit or condition only after confirming the exact vehicle application, because the same number can describe different systems on different engines.
For P1315, clarify whether the verified definition concerns ignition operation or another manufacturer-defined function before discussing causes. An ignition-related description can justify looking at coil, igniter, and related wiring; a non-ignition definition should not be forced into that path. P1316 does not automatically mean matching coil faults simply because it sits at the end of P1310 through P1316. Establish its applicable definition and note any relevant companion codes the factory procedure groups with it, since related monitors may set together.
Symptoms and Warning Signs That Affect Driving Decisions
When the confirmed definition is ignition-related, possible effects include rough running, hesitation, loss of power, stalling, or difficulty starting. None of those symptoms is inevitable; load, which cylinders are affected, and whether the fault is intermittent all change what a driver feels. A stored code can also be present with no noticeable drivability complaint, especially if the monitor ran under a specific condition captured in freeze-frame data. Symptoms cannot establish the code's meaning.
Severe shaking, substantial power loss, a flashing malfunction indicator lamp, or a strong fuel smell are reasons to pull over safely and shut the engine down. Unburned fuel and an unresolved engine misfire can raise catalytic converter temperature and increase fire or stall risk in traffic. The code number alone cannot establish whether continued driving is safe, because P1316 or P1310 may represent different severity depending on the vehicle. Towing or prompt professional assessment is appropriate when the vehicle will not run smoothly, the lamp flashes, or restarting seems unsafe.
Possible Coil, Igniter, and Wiring Causes After Meaning Is Confirmed
Where the verified definition involves an ignition coil or igniter circuit, those parts are possibilities that still require evidence. A coil can have an open primary, a shorted winding, or a cracked housing, and an igniter can fail to switch or to report status. Connector damage, connector corrosion, pinched or chafed wiring harness conductors, and missing supply or ground can produce the same monitored condition. Circuit testing is needed because replacing a coil that still passes tests will not restore an ignition feedback signal lost in the harness.
Address ignition feedback signal and control-signal faults only on systems whose documented operation includes those signals. Some igniter circuits report confirmation back to the control module; others are monitored only for commanded output or misfire effect. Do not declare a failed control module or order parts from the code number alone. Several faults can produce the same monitored condition, including a poor ground, a damaged connector pin, or an intermittent open that appears only when the harness flexes. Evidence from the applicable tests decides the repair.
Safe Observations and Professional Diagnostic Testing
Before clearing anything, record all codes, their status as current or history, freeze-frame data, and the circumstances of the symptom, including temperature and load. Freeze-frame data shows the operating point when the monitor failed and helps recreate the condition later. Once ignition and exhaust components have cooled, engine-off observation of accessible wiring and connectors can reveal obvious damage, corrosion, or a connector not fully seated. Stop at visual inspection; do not disassemble coils or probe live circuits at this stage.

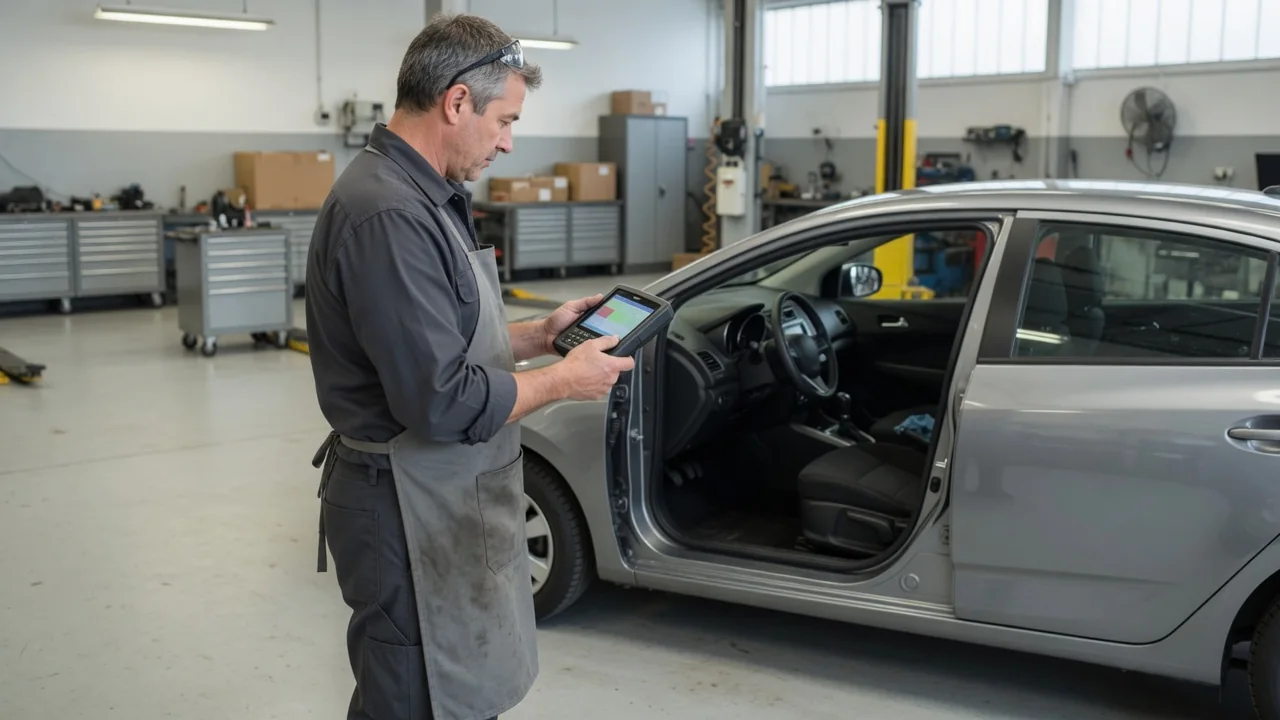

A technician uses the applicable wiring diagram and diagnostic procedure to evaluate power, grounds, circuit integrity, and relevant signals for that vehicle's igniter or coil circuit. That work may include resistance and voltage checks specified by the manufacturer, comparison to companion cylinders, and inspection of the harness routing. Live ignition handling, improvised spark tests, and bypassing circuits are unsafe and can damage the module or igniter. High-voltage testing is professional work. Circuit testing without the correct pinout can create a second fault that masks P1311 or P1316.
Evidence-Based Repairs and Confirmation of the Result
Repairs should follow confirmed findings, such as repairing damaged wiring, cleaning or replacing a corroded connector, restoring a ground, or replacing a coil or igniter that fails the applicable tests. Application-specific part identification matters; coil and igniter assemblies are not interchangeable across engines even when the trouble code number matches. Installation requirements, including torque, dielectric grease where specified, and harness routing, come from that vehicle's service information. Compatibility across vehicles should not be assumed from the shared P1310 through P1316 numbering.
Clearing P1315 or P1316 does not prove a repair. Confirmation includes verifying engine operation, checking that related misfire or ignition codes do not return, and allowing the monitor to run under conditions similar to the original freeze-frame data. Diagnostic labor, how accessible the fault is, and the confirmed repair scope all affect an estimate. A wiring repair in a tight harness can take longer than a coil replacement that tests failed. The code remains evidence to interpret, not a parts order.
