P0122 Code: Low Throttle Position Signal, Symptoms, and Testing
A P0122 code means the engine control module saw a throttle or pedal position signal lower than it expects. That reading can affect idle, acceleration and electronic throttle control, so it should be checked promptly. This guide explains what the code means, common P0122 symptoms, the electrical causes that can produce a low input, safe checks an owner can make, professional testing, and how related codes fit in.
What P0122 Means for the Throttle Position Circuit
P0122 generally identifies a low input in the throttle/pedal position sensor or switch A circuit. The control module watches the signal voltage from that sensor and sets the code when the reading drops below its expected range under defined conditions. Manufacturers assign circuit A differently. Check the vehicle-specific service information to confirm whether the monitored part is the throttle position sensor, an accelerator pedal position sensor or another input, and what conditions set the code, before you interpret any reading.
Low input describes an electrical condition, not a mechanical one. The throttle plate can be open while the module sees a signal that looks like zero, because the fault lies in how the voltage reaches the module, not in where the throttle sits. For the same reason, the P0122 code alone does not prove that the sensor has failed, and it does not justify replacing the whole throttle body. The code points to a circuit that needs testing. The real cause may be a harness, connector or supply fault.
Symptoms and When to Stop Driving
Common P0122 symptoms can include a check-engine light, hesitation, restricted acceleration, an unstable idle or stalling. Some vehicles show little beyond the warning lamp. When the control system cannot trust the position signal, electronic throttle control may switch to a reduced-power mode that limits throttle opening and engine speed. This protective mode keeps the vehicle controllable at low output, but the car may struggle to merge, climb hills or keep pace with traffic.
If throttle response becomes unpredictable, the engine keeps stalling, or you cannot accelerate enough for the traffic around you, pull over where it is safe and call for assistance instead of continuing. A vehicle that seems to run normally after the light appears has not necessarily been fixed. Low-input faults are often intermittent. A chafed wire or loose terminal can connect and disconnect with vibration or heat, so the problem can return without warning, possibly at a worse moment.
Electrical Problems That Can Produce a Low Input
Several electrical faults can pull the signal low. A signal wire shorted to ground drags the voltage toward zero whatever the throttle angle. An internal sensor fault, such as a worn resistive track or a failed Hall-effect element, can make the sensor output less than it should. If the reference voltage is missing, the sensor has no supply to work from, so its output collapses. Damaged wiring, loose or spread terminals, water intrusion and corrosion inside connectors can also break the circuit or add resistance that lowers the reading.
How an open circuit or ground fault shows up depends on the circuit design. Some modules use pull-up or pull-down resistors that force a disconnected signal high or low, so you need the correct wiring diagram before drawing conclusions. One reference supply may feed several sensors. A short in one component can then drag down the others and set several codes at once. A failed control module is possible, but it should not be the first conclusion. Consider it only once testing supports it.
Safe Observations Before Circuit Testing
Before clearing anything, record all stored and pending codes along with the freeze-frame data. Freeze-frame data captures conditions such as engine speed, load and coolant temperature at the moment the fault set, and clearing codes erases it. Also note when symptoms appear: at a cold start, under acceleration, after rain or a car wash, over bumps, or after recent service such as throttle cleaning or battery replacement. These patterns help a technician decide whether to look first at moisture, harness movement or a disturbed connector.
Owner inspection should be limited to what you can see with the engine off, the key removed and the vehicle secured. Check the accessible wiring and the outside of the connectors for chafing, melted insulation, rodent damage or a connector that is not fully seated. Note what you find, but do not disturb the terminals. Do not force an electronic throttle plate by hand, adjust a sensor, or probe unknown terminals. These actions can damage the throttle motor, gears or pins, and a probe in the wrong terminal can create new faults.
How a Technician Tests and Confirms the Repair

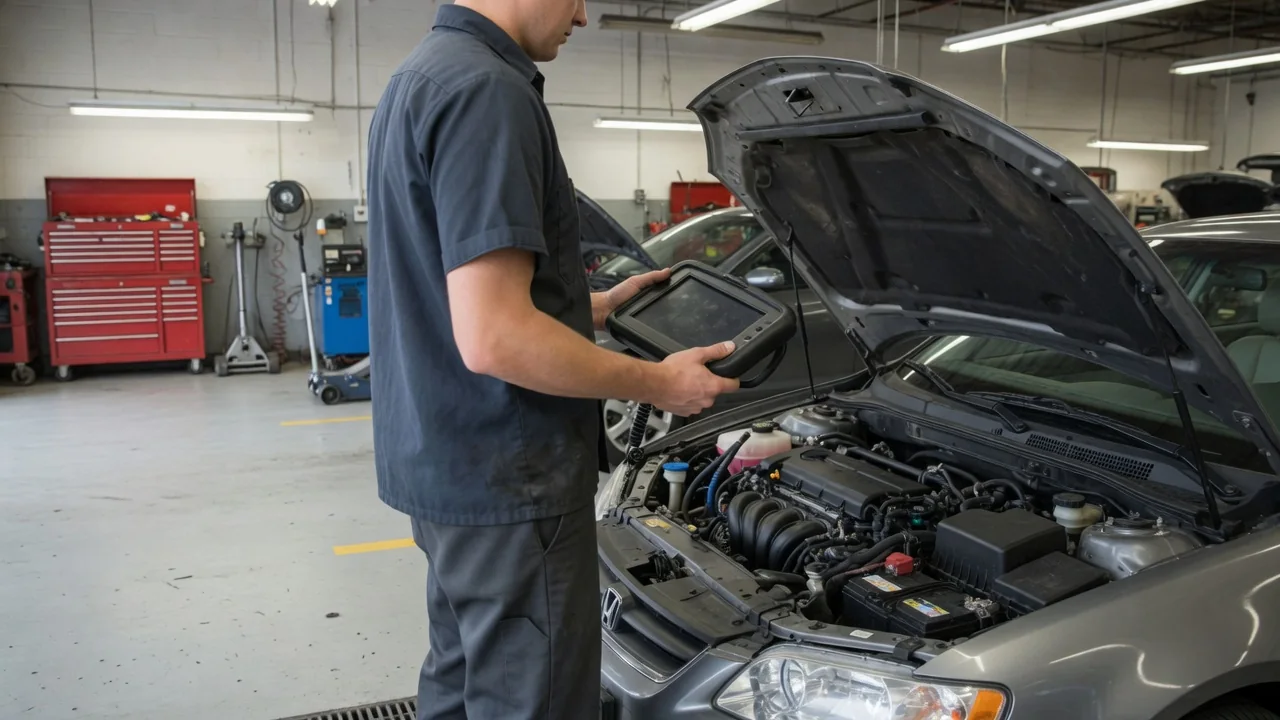

Professional diagnosis starts with vehicle-specific wiring diagrams, connector identification, specifications and approved test procedures. A scan tool can show whether the position signal stays low or drops out intermittently while the pedal moves or the harness is gently flexed. Graphing the signal can reveal brief dropouts that a numeric display misses. Scan data alone cannot locate the fault, though. It shows what the module sees, not whether the problem is in the sensor, the wiring or the supply.
Next, a technician checks the reference supply, ground integrity, signal behavior and wiring condition against published values for that vehicle, not universal pinouts or voltage thresholds. Voltage-drop and continuity tests show whether the fault lies in the wiring, a connection, the sensor or another component before any parts are replaced. After the repair, the technician confirms that the signal behaves normally, completes any throttle relearn or adaptation the manufacturer requires, and checks that the code does not return under safe operating conditions.
Related P0120, P0121, P0123, and P0124 Codes
Related codes help complete the picture. P0120 generally identifies a malfunction in the throttle/pedal position sensor or switch A circuit. A P0121 code generally points to a range/performance problem in circuit A, where the signal is present but does not agree with other inputs. For both, confirm the vehicle-specific component and the manufacturer's plausibility criteria. A P0123 code generally identifies a high input in circuit A, the opposite of P0122, and it needs its own documented electrical diagnosis.
P0124 generally identifies an intermittent condition in circuit A. For that code, stored freeze-frame data and signal behavior captured during road tests or harness movement are especially useful to the technician. When P0122 appears alongside P0120, P0123 or P0124, the combination can suggest a wiring or connector fault that swings in both directions, but it does not prove that one shared part has failed. Use the accompanying codes to decide where testing begins, not as a shortcut to replacing parts.
