P0117 Code: Engine Coolant Temperature Sensor Circuit Low Input
A P0117 code means the engine computer has seen an unusually low signal from the engine coolant temperature sensor circuit. That signal affects fuel delivery and idle control, and on many vehicles it also controls the cooling fans, so the fault needs attention. This guide explains what the P0117 code means, which P0117 symptoms may appear, what can cause a low input, and how technicians tell sensor faults from wiring faults before making repairs.
What P0117 Means for the Coolant Temperature Signal
P0117 is generally defined as engine coolant temperature sensor circuit low input. The word "low" describes the ECT signal voltage the engine control module receives. It does not mean the coolant level or the coolant temperature is low. Most ECT sensors are thermistors whose resistance drops as coolant warms, so the signal voltage falls as the engine heats up. When that voltage drops below the range the module considers believable, it stores the fault. In practice, a low signal usually shows up as an extremely hot reading, sometimes hotter than any running engine could actually be.
Before testing anything, check the service information for your specific vehicle. Some engines use more than one coolant temperature sensor. The manual identifies which sensor this code monitors, how its circuit is wired, and what conditions must be met for the code to set. This matters because the code alone cannot tell you whether the sensor failed, the wiring developed a fault, or the engine really did run extremely hot. It only records that the signal crossed a threshold. That makes it a starting point for diagnosis, not a verdict on any part.
Symptoms and Warning Signs That May Accompany P0117
The most common sign is a lit check-engine light. Because the module may think the engine is already hot, it can supply too little fuel during a cold start. That can cause hard starting, hesitation, or rough running until the engine warms up. Fuel economy may change while the module uses default values. Some vehicles show few drivability symptoms at all, especially if the control strategy switches to a backup temperature estimate. The dash temperature gauge may read high, read normal, or move erratically, and some vehicles run the cooling fans continuously as a protective measure.
Any sign of real engine overheating changes the priority. If you see a temperature warning light, steam from under the hood, or coolant loss, or you notice a sweet coolant smell, pull over safely, shut the engine off, and arrange assistance instead of continuing to drive. It is tempting to ignore a warning when a scan tool shows an obviously impossible reading. However, an implausible number does not prove the engine is safe to run. The sensor may be wrong while the cooling system still has a real problem that could cause serious engine damage.
Sensor and Circuit Faults That Can Trigger Low Input
A low input usually means something is pulling the signal voltage toward ground. An internal short inside the engine coolant temperature sensor can do this. So can a signal wire whose insulation has worn through and is touching a bracket, the engine block, or another grounded surface. Common places for a short to ground include a pinched wiring harness near the intake manifold, a spot chafed against a hose clamp, and a wire melted by exhaust heat. These faults are more likely on engines that have had recent repair work nearby.
Connector problems can also contribute. Moisture or coolant inside a sensor connector can create an unintended electrical path between terminals. Corrosion alone, however, more often raises resistance and is not automatic proof of a low-input fault. A real overheating condition is also worth investigating using the manufacturer's diagnostic criteria, because a failing cooling system can produce a legitimately low signal. Replacing the sensor without checking the circuit is a common mistake. If the harness is shorted, a new sensor will report the same low voltage and P0117 will come back.
Initial Checks Before Electrical Testing
Start by writing down every stored and pending code, plus the freeze-frame data, before anything is cleared. Freeze-frame data shows engine speed, load, and the reported coolant temperature at the moment P0117 set. That helps show whether the fault appeared during a cold start, highway driving, or heat soak after shutdown. Next, check coolant temperature live data after the vehicle has sat with the engine off long enough to cool completely, ideally overnight. A cold engine should read close to the outside air temperature, so a much higher reading points toward an electrical fault rather than real heat.

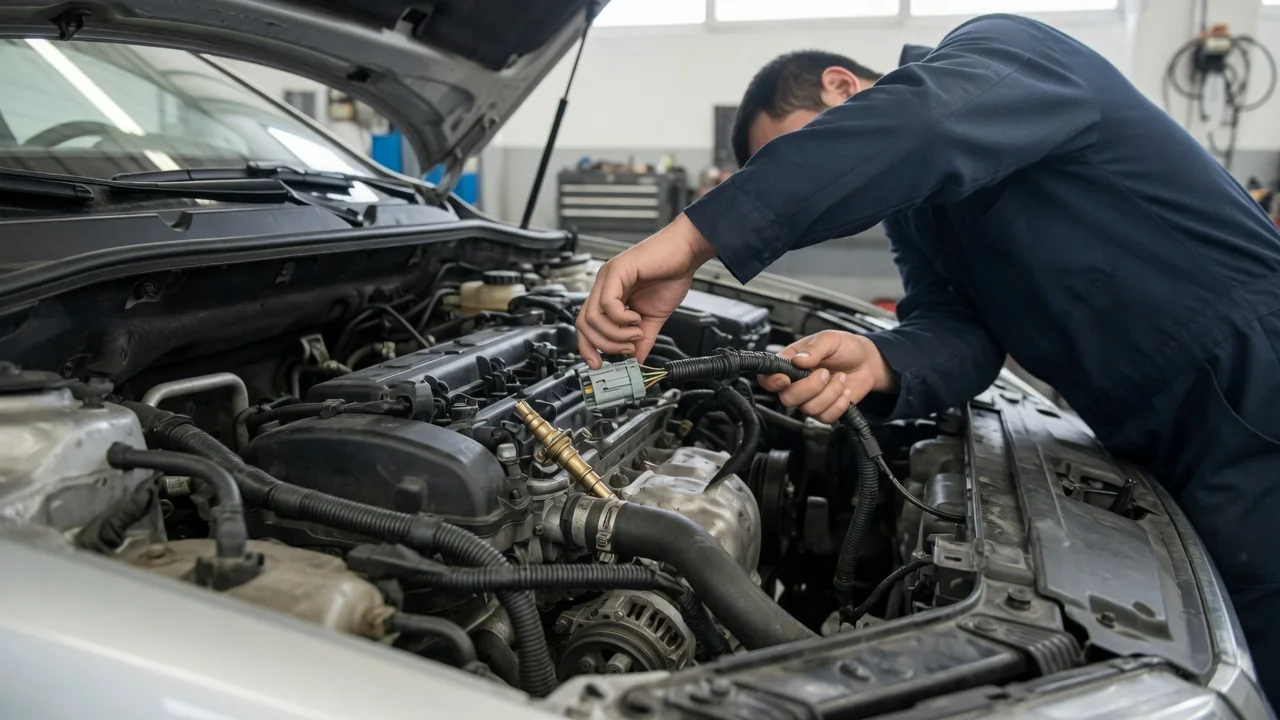

With the engine off and completely cool, a careful visual inspection can reveal a lot. Look for a loose or partly seated sensor connector, cracked or melted insulation, and coolant residue around the sensor or harness. Also look for signs of recent work, such as disturbed wiring near the thermostat housing. Check the coolant level only as the owner's manual describes, usually by reading the overflow reservoir marks. Never open a hot, pressurized cooling system. Keep hands, tools, and loose clothing away from electric fans and drive belts, because fans can start unexpectedly.
How Professional Testing Separates Sensor and Wiring Faults
Accurate electrical testing requires the correct wiring diagram, connector and terminal identification, and the manufacturer's voltage and resistance specifications for that specific engine. Values vary between vehicles, so generic numbers can mislead. A technician typically checks the signal voltage the module receives, tests the circuit for continuity and unwanted paths to ground, and confirms that the sensor's resistance changes as coolant temperature changes. Comparing the circuit's behavior with and without the sensor connected helps show whether the fault is in the sensor or in the wiring and module side.
Good diagnosis requires the scan data and the electrical measurements to agree before a part is condemned. For example, a sensor that tracks warm-up smoothly while the circuit tests pass may point to an intermittent harness fault that appears only with engine movement or heat. Owners without a quality scan tool, a digital multimeter, and the right service data should leave pin-level testing to a professional. Careless probing can spread connector terminals. Measuring resistance on a live circuit or bridging connector terminals can damage the engine control module and create new faults.
Repair Decisions and Confirmation That P0117 Is Resolved
Repairs should be based on confirmed findings. A sensor proven to be internally shorted is replaced. A damaged connector or chafed wiring harness is repaired with methods suited to engine-bay heat and moisture. A verified cooling-system problem, such as a failed thermostat or water pump, is fixed at its source. Because the ECT sensor usually threads into a coolant passage, replacing it can open the cooling system. That job requires the correct coolant type, proper handling precautions, and the vehicle-specific air-removal procedure, because trapped air can cause overheating and erratic temperature readings.
Confirming the repair takes more than clearing the code. Afterward, coolant temperature live data should read plausibly on a cold start and rise steadily to normal operating temperature. Once the engine has cooled, inspect any coolant connection that was disturbed for leaks. Drive the vehicle under conditions similar to those in the freeze-frame data, then check for returning or pending codes. If P0117 comes back intermittently, or if overheating warnings, unusual fan behavior, or drivability problems continue, more diagnosis is needed even when the check-engine light stays off.
