P0089–P0092 Codes: Fuel Pressure Regulator and Circuit Faults
When a scan tool stores P0089, P0090, P0091, or P0092, the powertrain control module has flagged a fuel pressure regulator 1 performance or regulator control circuit concern. These codes point to regulation or electrical monitoring, not a confirmed failed part. Confirm the manufacturer definition for the year, make, model, and engine, then use freeze-frame data, companion codes, and symptoms to decide how urgently the vehicle needs professional diagnosis.
P0089: Fuel Pressure Regulator 1 Performance
The P0089 code commonly appears as fuel pressure regulator 1 performance, yet that wording is only a starting point. Exact code descriptions, enabling conditions, and which component the manufacturer labels as regulator 1 change with year, make, model, and engine, so those details must be verified before interpreting any code in this group. A stored P0089 means the control module detected a regulation problem under its monitoring rules. That finding does not by itself identify a failed regulator, a bad fuel pressure sensor, or a pump issue.
How fuel is supplied, how pressure is measured, how the regulator acts, and how the pump is commanded all affect whether actual fuel pressure tracks commanded fuel pressure. On some systems the regulator sits in the rail or tank module; on others pump speed or a fuel pump control module does most of the regulation. Freeze-frame data captures engine speed, load, temperature, and related values at the moment P0089 set. Accompanying codes for sensors, circuits, or supply problems help reconstruct those conditions instead of treating the regulator as the automatic cause.
P0090: Fuel Pressure Regulator 1 Control Circuit/Open
A P0090 code is commonly described as fuel pressure regulator 1 control circuit/open, but the verified vehicle-specific definition still governs what the module actually monitored. In many designs the regulator receives an electrical command through a dedicated path that includes the wiring harness, connectors, a power supply, a ground, and a control driver in a module. An open condition means the module did not see the expected continuity or signal on that path. Interpreting P0090 therefore starts with the published circuit description rather than assuming the regulator itself is electrically dead.
An open circuit can come from a disconnected connector, a broken conductor, corrosion at a terminal, an internal open inside the regulator, or another interruption that only testing can locate. Connector corrosion is a frequent visual clue at harness junctions near the tank, rail, or control module, yet it is not proof of the failure. The P0090 code alone cannot establish whether the regulator, the wiring, or a control module needs replacement. Confirmation requires circuit checks against manufacturer specifications, not parts swapping based on the code title.
P0091 and P0092: Low and High Control Circuit Signals
After the manufacturer's definitions are confirmed, a P0091 code commonly means fuel pressure regulator 1 control circuit low, and a P0092 code commonly means control circuit high. Low and high describe monitored electrical conditions on the regulator control circuit, such as voltage, duty, or current outside the expected window. Those labels do not directly state that fuel pressure is too low or too high. Actual fuel pressure may still be normal, low, or high for unrelated reasons, so P0091 and P0092 should be treated as circuit reports rather than rail-pressure readings.
Wiring faults, damaged insulation, connector problems, internal electrical faults in the regulator, and control-driver issues can all produce abnormal circuit readings, depending on how the circuit is designed. A short to ground, a short to power, high resistance, or a failed driver may look similar on a scan tool until the circuit is measured. A wiring diagram and manufacturer test specifications are required before assigning a particular short, open, or component failure to either code. Guessing from the word low or high risks replacing the wrong part.
Symptoms and When to Stop Driving
P0090 symptoms can include an illuminated malfunction indicator, difficult starting, rough running, stalling, and reduced power, and similar behavior can appear with P0089, P0091, or P0092. Noticeable drivability symptoms may also be absent, especially if the module still maintains usable pressure despite a circuit or performance flag. When symptoms do occur, they still cannot identify the failed component, because a wiring harness problem, sensor error, regulator fault, or pump-side issue can produce the same idle or acceleration complaints. Treat the warning light and the code as a request for diagnosis, not a parts list.
If the engine stalls repeatedly, power drops severely, fuel is visibly leaking, or a strong fuel odor is present, stop in a safe location, shut the engine off, and arrange assistance rather than continuing to drive. A universal safe-to-drive verdict does not apply to this code group. Next steps should follow the actual symptoms, any warning messages, and the vehicle's own guidance. Mild hesitation with only a stored lamp may allow a careful trip to a shop, while stalling in traffic or a fuel smell calls for immediate shutdown and professional recovery.
Safe Observations to Record Before Diagnosis
Before any testing, record all stored and pending codes, available freeze-frame data, and whether symptoms occur during starting, idling, acceleration, or after the engine warms. Note recent repairs, refueling events, and when the warning first appeared, without treating any of those events as proof of causation. A new fuel fill, a tank-module repair, or a wiring repair nearby can coincide with P0089 or a regulator control circuit code and still be unrelated. The snapshot of commanded fuel pressure versus reported pressure, if the scan tool shows it, belongs in that same written record.
With the engine off and cool, limit visual checks to readily accessible wiring and connectors. Note chafed insulation, loose connectors, or obvious connector corrosion without probing terminals, spraying chemicals, or disconnecting components. Codes should be documented before they are cleared, because freeze-frame data and pending status disappear and the original conditions may not return immediately. Opening fuel lines, bypassing regulator or pump controls, or applying power directly to fuel-system components is unsafe. Those actions can spray fuel, damage electronics, or create an ignition hazard and should be left to trained technicians with proper equipment.
Professional Tests for the Regulator, Wiring, and Pump Module

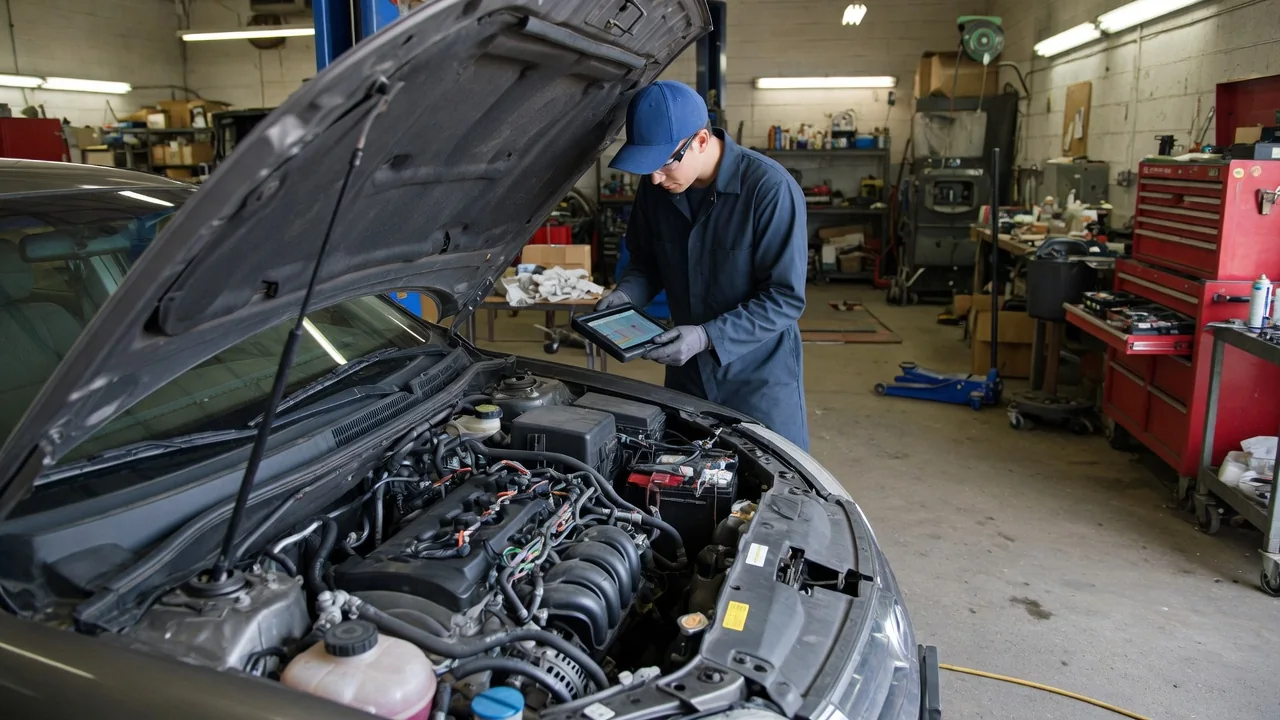

A technician starts with service information for that vehicle, then reviews code status, freeze-frame data, and companion codes that involve the fuel pressure sensor, supply, or pump. The diagnostic sequence is vehicle-specific because regulator 1, the control circuit, and pump architecture are not the same on every engine. Under specified conditions, commanded fuel pressure is compared with actual fuel pressure and with sensor plausibility. Scan data can show a mismatch, but it cannot by itself prove whether the sensor, the regulator, the wiring, or the pump is at fault.
Professional testing then checks circuit integrity, power supply, ground, and the control signal with meters and the manufacturer's methods, without guesswork at individual pins by untrained hands. If results point beyond the regulator circuit, pump supply and the fuel pump control module are assessed only when that vehicle's system and the measurements justify it. The fault must be confirmed, the repair completed, and operation rechecked under the original monitoring conditions before the issue is considered resolved. Clearing P0089 through P0092 without that verification leaves the same regulation or circuit problem ready to return.
