Audi and VW EVAP System Leaks and Diagram Guide for the A4, TT and 1.8T
Fuel vapor escaping from your Audi or Volkswagen 1.8T is both an emissions problem and a drivability headache. The evaporative emissions system stores fuel tank vapor in a charcoal canister and later routes it to the engine through the N80 purge valve, where it is burned instead of venting to the atmosphere. When this closed vapor circuit develops a leak, a faulty purge solenoid, or a leak detection pump fault, the check engine light often comes on and the EVAP monitor may never reach readiness status.
How the Audi and VW EVAP System Captures and Purges Fuel Vapor
The evaporative emissions system is a closed loop that prevents raw fuel vapor from escaping the fuel tank. Vapors form as fuel warms and as the tank is filled. Instead of venting these hydrocarbons into the air, the system stores them temporarily in a charcoal canister. Later, when the engine is running under the right conditions, the engine control module opens the N80 purge valve. This allows intake manifold vacuum to draw the stored vapor from the canister into the intake stream, where it is burned in normal combustion.
The main components are the fuel tank vent, charcoal canister, N80 purge valve, leak detection pump, and connecting vapor lines. The tank vents through a rollover valve or gravity valve to the canister. The canister holds activated charcoal that adsorbs fuel vapors. The N80 purge solenoid, controlled by the engine computer, meters how much vapor flows into the intake. The leak detection pump is a small air pump that pressurizes or evacuates the system during an EVAP monitor self-test. The engine control module usually opens the purge valve only when the engine is warm and at part throttle, and runs the leak test when the car is parked, often hours after shutoff.
Reading an Audi A4 EVAP System Diagram Step by Step
Reading an Audi A4 EVAP system diagram begins with tracing vapor flow from the fuel tank. Start at the tank vent, which is usually a rollover valve or pressure-control valve at the top. A vapor line then runs forward to the charcoal canister, often near the rear axle or under the spare tire well. From the canister, another line runs to the N80 purge valve under the hood. The purge valve outlet connects to the intake manifold or, on turbocharged engines, to a point that can draw vapor under vacuum. The diagram also shows the leak detection pump either branching off the canister vent line or the purge line, depending on generation.
On a schematic, vapor lines are usually shown as continuous tubes with slight bends, while electrical connections are thin lines ending in pin numbers or connector symbols. Vacuum lines may be labeled with size or routed to a vacuum reservoir. The leak detection pump has both an electrical connection and a small filtered air inlet, and it sends pressure or vacuum to the canister through a dedicated test line. Because Audi changed the routing over the years even within the A4 B5, B6 and B7 generations, do not rely on a generic internet image. Instead, match your vehicle identification details and engine code to the official factory repair information for your model year.
What Is Different About the 1.8T EVAP Layout
On a turbocharged 1.8T, the EVAP system must function under both manifold vacuum and positive boost pressure. During idle and light throttle, intake vacuum is available to pull fuel vapor from the canister through the N80 valve and into the throttle body or intake manifold. But under boost, the intake tract is pressurized, and a direct connection would push air back into the canister or fight the purge flow. Therefore the 1.8T uses check valves and often a dedicated purge port upstream of the turbo, sometimes on the turbo inlet pipe, so that vapor is drawn into the suction side of the compressor only when vacuum is present in that area.
A failed check valve or cracked purge hose can cause more than an EVAP leak code. If the check valve sticks open, boost pressure can leak into the canister and then to atmosphere, creating a boost leak and sometimes rough idle. If the valve sticks closed or the purge line splits, the canister never purges, setting an EVAP fault and possibly a rich or lean condition. With the engine off and cool, inspect the N80 valve and its small vacuum lines for heat cracks, loose fittings, or oil residue. Confirm any replacement part by your VIN and engine code, because 1.8T plumbing changed between longitudinal A4 setups and transverse TT layouts.
EVAP System Considerations on the Audi TT
The Audi TT uses the same sealed fuel vapor storage and purge principles as other Audi and VW models, but its compact body and mid-engine or transverse engine packaging alter component locations. The charcoal canister may be tucked behind a rear wheel liner, the N80 valve may sit near the throttle body or turbo inlet, and the leak detection pump might be under the floor pan. Without a lift, an owner can usually see only the purge valve and some underhood lines. Accessing the canister or leak detection pump often requires the car raised and plastic underbody shields removed.
Tight engine-bay packaging in the TT makes hose aging and loose connections harder to spot. Heat from the turbo and exhaust manifold bakes nearby vapor lines and electrical connectors, and even a small vacuum leak can cause a P0455 large leak code or a P0456 small leak code. Before assuming the layout is the same as an A4 or a Golf, TT owners must consult generation-specific service information. A 2001 TT with a 1.8T and a 2008 TT with a 2.0TFSI have different routing, different purge valve locations, and different test strategies.
Common Audi EVAP Leak Symptoms and Likely Sources
Common Audi EVAP leak symptoms include an illuminated check engine light, a raw fuel smell near the filler or under the car, rough idle or hard starting immediately after refueling, and sometimes trouble filling the tank because the nozzle keeps clicking off. The fuel smell is usually strongest near a cracked canister, a split vent line, or a bad fuel cap seal. A purge valve stuck open can cause a steady vacuum draw on the tank that makes the engine run lean at idle. A stuck closed valve prevents canister purging and triggers an EVAP flow fault.
Frequent leak sources are the fuel cap seal, cracked or disconnected hoses at the canister or tank, a purge valve that is stuck open or closed, and leak detection pump faults. Some are easy to check with the engine off and the car cool. Make sure the fuel cap is tight and its rubber seal is not dried or cracked. Look at visible hoses in the engine bay for splits, especially where they bend near the N80 valve. However, a small leak often cannot be found by eye because the hole may be hairline or in a hidden location. A smoke test is usually needed to find it.
Interpreting EVAP Trouble Codes Without Guessing
Generic OBD-II EVAP codes like P0440, P0442 and P0455 mean general EVAP system malfunction, small leak and large leak. Manufacturer-specific codes, on the other hand, can point to a particular circuit, such as the N80 valve open circuit or the leak detection pump no signal. The code text in a cheap scan tool may be misleading. Before replacing anything, confirm the exact code definition for your vehicle model, engine and model year, because the same numeric code may have a different meaning or test threshold on a different platform.
Freeze-frame data records the engine parameters at the moment the fault was set, and the monitor status tells you whether the EVAP test has completed. If the code was cleared and does not come back right away, the leak may be intermittent or the monitor may not have run yet. Do not replace the purge valve or leak detection pump based only on a code description. Multiple issues—a loose cap, a cracked hose, a stuck valve—can set the same small leak code. EVAP monitors usually only run when the fuel tank is between roughly one-quarter and three-quarters full, the engine is warm, and specific drive-cycle conditions are met, so readiness can take days to set.
Safety Limits and When to Get Professional EVAP Testing
Fuel vapor is highly flammable. Never smoke, use open flame or create sparks near the EVAP system, fuel tank or filler neck. Do not disconnect fuel or vapor lines at home, and never pressurize the tank or EVAP lines with compressed air or improvised equipment. A small spark from static or an unsealed pressure source can ignite vapor, and overpressure can split plastic components.

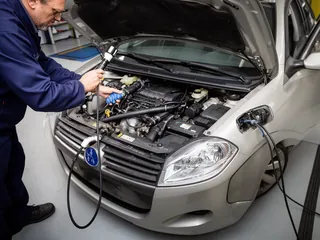

A professional smoke test feeds a low-pressure, inert smoke into the sealed system through a service port, making even hairline leaks visible as smoke escaping a cracked hose or fitting. A scan tool can command the N80 purge valve to click open and closed, and can activate the leak detection pump to verify it builds pressure. Seek professional service promptly if you have a strong fuel smell, visible fuel leakage, drivability problems along with the warning light, or a code that keeps returning after a new fuel cap.
